Micro switches are critical components in golf carts, responsible for controlling various functions such as acceleration, braking, and direction. Understanding how to test these switches can help ensure your golf cart operates smoothly. This article provides a comprehensive guide on testing micro switches in golf carts, including step-by-step instructions, troubleshooting tips, and maintenance advice.
A micro switch is a small, electromechanical switch that is activated by a physical force. It operates by opening or closing an electrical circuit when a specific amount of pressure is applied to its actuator. In golf carts, micro switches are commonly found in the accelerator pedal assembly, brake systems, and directional controls.
Micro switches serve several essential functions in golf carts:
- Speed Control: They activate the motor when the accelerator pedal is pressed.
- Safety Features: They ensure that the cart only operates under safe conditions, such as when the brake pedal is engaged.
- Directional Control: They help determine whether the cart moves forward or backward.
To test micro switches effectively, you'll need the following tools:
- Digital or Analog Multimeter: For measuring voltage and resistance.
- Screwdriver Set: To remove any covers or panels.
- Wrench Set: For disconnecting wires if necessary.
Before starting any electrical work on your golf cart, ensure that the power is turned off. Disconnect the battery to prevent any accidental shocks or shorts.

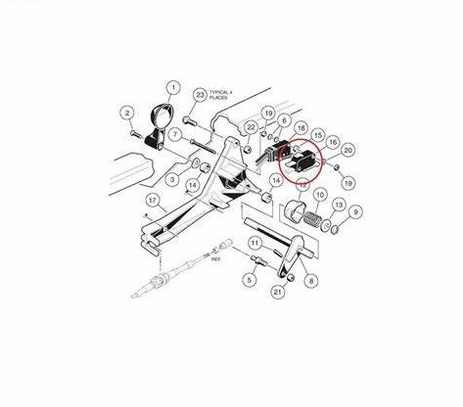

Identify the location of the micro switch you want to test. Common locations include:
- Under the accelerator pedal
- Near the brake pedal
- In the directional control assembly
Before testing, visually inspect the micro switch for any signs of damage such as cracks, burns, or corrosion. If you notice any physical damage, it may be time to replace it.
Using a screwdriver and wrench set, carefully remove the micro switch from its housing. Take note of how it is connected for reinstallation later.
Set your multimeter to measure resistance (ohms). If your multimeter has a continuity setting, you can use that as well.
1. Disconnect both wires from the micro switch terminals.
2. Place one probe on each terminal of the micro switch.
3. Press the actuator (the button or lever) on the switch while observing your multimeter.
- If the switch is functioning correctly, you should see a reading close to zero ohms (indicating continuity) when pressed and infinite resistance when released.
- If there is no change in readings when actuated, the micro switch may be faulty and should be replaced.
If you want to test whether the micro switch is receiving power:
1. Reconnect the wires but keep access to measure voltage at the terminals.
2. Turn on the power to your golf cart.
3. With your multimeter set to measure voltage (DC), place one probe on each terminal of the micro switch while pressing down on its actuator.
- You should see a reading that matches your battery voltage (usually around 36V for electric carts). If not, check upstream connections for issues.
Micro switches can fail for several reasons:
- Wear and Tear: Frequent use can wear out internal components.
- Environmental Factors: Exposure to moisture or dirt can cause malfunction.
- Electrical Issues: Short circuits or incorrect wiring can damage switches.
If your golf cart exhibits problems related to micro switches:
- Cart Won't Start: Check if power reaches the micro switch when pressing down on the accelerator.
- Inconsistent Speed Control: Inspect and test all related micro switches; one faulty switch can affect overall performance.
- Safety Features Not Engaging: Ensure all safety-related micro switches are functioning correctly.
To prolong the life of your golf cart's micro switches:
- Regularly clean around switches to prevent dirt buildup.
- Inspect connections periodically for corrosion or loose wires.
- Replace any damaged switches immediately to avoid further issues.
Testing and maintaining micro switches in your golf cart is crucial for ensuring optimal performance and safety. By following this guide, you can easily diagnose issues and perform necessary repairs or replacements. Regular maintenance will help extend their lifespan and keep your golf cart running smoothly.
You will need a digital or analog multimeter, screwdrivers, and wrenches for disconnecting wires.
A faulty micro switch may show no continuity when actuated or have physical damage like cracks or burns.
Yes, replacing a micro switch is straightforward if you follow proper disconnection and reconnection procedures.
It's advisable to inspect them during regular maintenance checks or whenever you experience performance issues.
Ignoring a faulty micro switch can lead to more significant issues with your golf cart's operation, including safety risks and potential damage to other components.
