Micro switches are crucial components in various electronic devices, acting as triggers that respond to physical movements. They are commonly found in applications ranging from household appliances to industrial machinery. Understanding how to check the continuity of a micro switch is essential for maintaining the functionality of these devices. This article provides a comprehensive guide on testing the continuity of micro switches, including step-by-step instructions, necessary tools, and troubleshooting tips.
Micro switches, also known as snap-action switches, are designed to operate with minimal physical movement. They provide reliable electrical signals in response to mechanical input. The basic operation involves a lever or button that, when pressed, closes or opens an electrical circuit.
- Normally Open (NO): This type does not conduct electricity until it is activated.
- Normally Closed (NC): This switch conducts electricity until it is activated.
Understanding the type of micro switch you are dealing with is crucial for testing its continuity correctly.
To check the continuity of a micro switch, you will need the following tools:
- Multimeter: A device used to measure voltage, current, and resistance.
- Screwdriver: For removing the micro switch if necessary.
- Cleaning Supplies: Such as compressed air or a soft brush to clean the switch contacts.
Before testing any electrical component, ensure that the power supply is disconnected. This prevents accidental shocks and protects both you and the equipment.
If access to the switch is limited while it is still connected, carefully remove it from its housing using a screwdriver. Remember how it is connected for reinstallation.
Conduct a visual inspection of the micro switch. Look for:
- Cracks or chips in the casing.
- Burn marks indicating overheating.
- Loose or damaged wires.
A thorough inspection can often reveal issues that may not be detectable through electrical testing.
Set your multimeter to measure continuity or resistance. Familiarize yourself with your multimeter's settings if you're unsure how it operates.

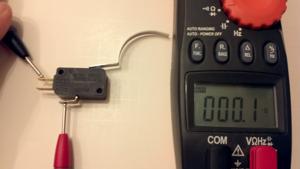

1. Connect one probe of the multimeter to one terminal of the micro switch.
2. Connect the other probe to the second terminal.

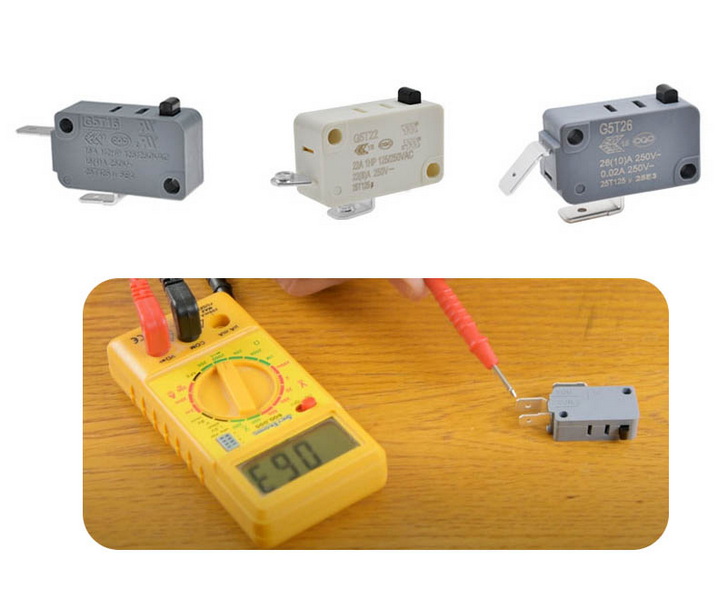

Press the actuator (the button or lever) on the micro switch while observing the multimeter reading:
- If you hear a beep or see a near-zero reading, the switch has continuity and is functioning correctly.
- If there is no sound or an infinite reading, this indicates that there is no continuity and suggests that the switch may be faulty.
Ensure that the actuator aligns correctly with the switch's internal mechanism. Misalignment can prevent proper operation.
If dirt or debris is present on the contacts, clean them gently using compressed air or a soft brush. This ensures good electrical contact when testing.
Micro switches can fail due to various reasons:
- Wear and Tear: Frequent use can lead to mechanical failure over time.
- Electrical Overload: Excessive current can damage internal components.
- Environmental Factors: Dust, moisture, and chemicals can cause corrosion and malfunction.
If your micro switch fails continuity testing, consider these troubleshooting steps:
- Recheck Connections: Ensure all connections are secure and free from damage.
- Inspect for Damage: Look for signs of burning or corrosion on terminals.
- Test Other Components: Sometimes, issues may arise from other parts of the circuit rather than the switch itself.
Checking the continuity of a micro switch is an essential maintenance task that ensures your devices operate safely and efficiently. By following this comprehensive guide, you can diagnose issues effectively and prolong your equipment's lifespan. Regular checks not only enhance device reliability but also prevent unexpected breakdowns that could lead to costly repairs or replacements.
A bad micro switch may show signs such as intermittent operation, failure to activate when pressed, or visible physical damage like cracks or burn marks.
Yes, you can test it while still connected by using a multimeter set to continuity mode; however, removing it allows for thorough inspection.
If it fails continuity testing, it's likely defective and should be replaced with a new one that matches its specifications.
It's advisable to test them periodically as part of routine maintenance, especially in critical applications where reliability is paramount.
Yes, dirt and debris can prevent proper contact between internal components, leading to malfunctioning switches.
