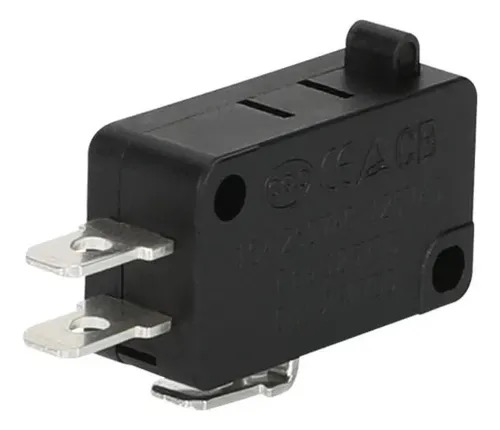

A micro switch, also known as a snap-action switch, is a mechanical switch designed to rapidly transfer electrical contacts from one position to another with minimal force. These switches are fundamental components in modern electronics, enabling swift and reliable switching in diverse applications, from industrial settings to home appliances. Their compact size, fast switching action, and reliability make them indispensable for feedback and control systems in smart appliances and other electronic devices.
Micro switches play a crucial role in the functionality and safety of numerous appliances. They act as sensors, detecting the position of mechanical components, confirming states (like a door being open or closed), and initiating specific actions. For example, a micro switch might detect if a microwave oven door is closed before allowing it to operate, or sense the position of a washing machine lid to prevent operation when open. This integration into everyday appliances often goes unnoticed, yet without micro switches, many "smart" functionalities would not exist, as they provide essential feedback to the system.
Micro switches come in various types, primarily distinguished by their actuation mechanisms, which determine how they are activated. The choice of actuator depends heavily on the specific application and the mechanical action required to trigger the switch.
- Pin Plunger Actuated Micro Switch: This type uses a pin that is pushed in to activate the switch. They are often used when a direct push-pin mechanism is required for activation, such as in limit switches or control systems.
- Lever Actuated Micro Switch: These switches utilize a lever to activate them. The lever can be designed with different travel lengths and positioned to suit specific mechanical designs, making them suitable for pressure-sensitive equipment, machine guarding, and various appliances. Lever terminals can include short straight, standard straight, long straight, extended straight, small simulated roller, standard simulated roller, and L-shaped levers.
- Roller Actuated Micro Switch: A roller is employed to actuate this type of micro switch. They are typically used in applications requiring continuous motion or intermittent contact, where the roller can be mounted on a lever or arm and activated by a moving object. Common applications include conveyor belts, elevator systems, and position detection systems.
- Basic Push Button Actuation: These are the simplest form of micro switch actuation, involving a mechanical push button to activate the switch. They are frequently found in consumer products like appliances and toys.
- Rotating Operation Micro Switch: Commonly used with low torque actuators, these micro switches are suitable for detecting light objects, such as paper currency.
- Temperature-Sensitive Micro Switches: These micro switches incorporate built-in temperature sensors, making them ideal for applications that require the switch to respond to specific temperature conditions, such as temperature regulation in refrigerators, ovens, or industrial heating systems.
Micro switches can also be categorized by their internal contact configurations, primarily Normally Open (NO) and Normally Closed (NC).
- Normally Open (NO): In this configuration, the switch contacts are open in their default, unactuated state, meaning no current flows through them. When the switch is actuated, the contacts close, allowing current to flow.
- Normally Closed (NC): Conversely, in a Normally Closed configuration, the switch contacts are closed in their default state, allowing current to flow. When the switch is actuated, the contacts open, interrupting the current.
- Single Pole Double Throw (SPDT): Many micro switches are SPDT, meaning they have a common terminal (C) that can connect to either a Normally Closed (NC) terminal or a Normally Open (NO) terminal. This versatility allows them to be used in either NO or NC mode, or even simultaneously, depending on the application.
Selecting the correct micro switch is critical for the optimal performance and longevity of an appliance. Several factors must be carefully considered during the selection process.
The operating force refers to the amount of force required to actuate the micro switch. This is a crucial consideration, as it directly impacts the feel and responsiveness of the appliance. For instance, a light touch might be preferred for consumer electronics, while a higher operating force might be necessary in industrial machinery to prevent accidental activation.
The speed at which the micro switch can open or close its contacts is another important factor. Micro switches are known for their fast switching action, which is essential in applications requiring quick responses, such as safety mechanisms or precision controls.
Understanding the electrical requirements of your appliance is paramount. This includes the voltage (AC or DC) and current (amperes) the switch will need to handle. Overlooking these ratings can lead to premature failure of the micro switch or even pose safety risks. Some micro switches are designed for high current applications, offering robust contacts and internal designs to handle greater current carrying capacities.
The terminal type dictates how the micro switch will be connected to the electrical circuit. Options typically include solder terminals for direct soldering or terminal connectors for easier removal and replacement. The choice depends on manufacturing processes and maintenance considerations.
Micro switches come in various sizes, including subminiature, miniature, and standard styles. The physical dimensions of the micro switch and its mounting options must align with the available space within the appliance and the overall mechanical design. Industry-standard mounting holes are often available, facilitating replacement or integration into existing designs.
The environment in which the appliance operates can significantly impact the durability and reliability of the micro switch. Factors such as temperature, humidity, dust, and potential exposure to liquids should be considered. Some micro switches offer IP (Ingress Protection) ratings, indicating their resistance to dust and water ingress, making them suitable for harsher environments.
The expected number of operating cycles before failure, known as mechanical life, is an important specification, especially for appliances that will undergo frequent use. A reliable micro switch ensures consistent performance and reduces the need for frequent replacements.
Beyond the basic factors, several advanced considerations can help refine your choice and ensure the micro switch integrates seamlessly with your appliance's design and operational requirements.
The material used for the switch contacts affects both electrical performance and longevity. Common contact materials include silver, gold, and alloys designed to resist corrosion and oxidation. For appliances exposed to humid or corrosive environments, selecting micro switches with corrosion-resistant contacts can prevent premature failure and maintain reliable operation.
For appliances exposed to dust, moisture, or chemicals, sealed micro switches provide enhanced protection. These switches have internal seals or coatings that prevent ingress of contaminants, extending the switch's service life. Sealed versions are particularly important in outdoor appliances, kitchen equipment, or industrial environments.
Some appliances operate under extreme temperature conditions. Selecting a micro switch with a suitable temperature range ensures consistent performance without degradation. Thermal stability is critical in appliances like ovens, HVAC systems, and refrigeration units.
In environments with significant vibration or mechanical noise, such as automotive or industrial machinery, micro switches with robust internal construction and vibration-resistant features are essential. These switches maintain contact integrity and prevent false triggering in challenging conditions.
Depending on the market and application, compliance with industry standards and certifications (such as UL, CE, RoHS) can be mandatory. Selecting micro switches that meet relevant certifications ensures safety, reliability, and regulatory compliance, which is particularly important for appliances sold internationally.
The versatility and reliability of micro switches have led to their widespread adoption across a broad spectrum of appliances and systems.
- Home Appliances: From refrigerators and washing machines to microwave ovens and air fryers, micro switches are integral. They can detect whether a refrigerator door is open or closed, control water levels in washing machines, or ensure the proper closure of an oven door for safety.
- Automotive Systems: Micro switches are used in various automotive applications, including door sensors, seatbelt detection, and gear shift mechanisms.
- Industrial Applications: In industrial settings, micro switches serve as limit switches, detecting the end of travel for moving parts on machinery, or as components in control systems for automated processes. They are also found in conveyor belts and elevator systems for position detection.
- Security Devices: Micro switches are often employed in security systems, such as in alarm systems to detect when a window or door is opened.
- Consumer Electronics: Beyond major appliances, micro switches are found in smaller electronic devices like computer mice, where they provide the tactile feedback for clicks, and in toys.
- 3D Printers and Robotics: In emerging technologies, micro switches are crucial for sensing positions and providing feedback, enabling precise movements and operations in 3D printers and various robotic projects.
- HVAC Systems: They can be used to monitor and control various components within heating, ventilation, and air conditioning systems.
To choose the optimal micro switch for your specific appliance, follow these steps:
1. Define the Application Requirements
- What is the primary function of the switch in the appliance? (e.g., position sensing, safety interlock, user input).
- What kind of mechanical action will activate the switch? (e.g., push, lever movement, roller contact).
- What are the environmental conditions the switch will operate in? (e.g., temperature range, humidity, presence of dust or liquids).
2. Determine Electrical Specifications
- What is the maximum voltage the switch will handle?
- What is the maximum current (amperes) the switch will carry?
- Does the circuit require Normally Open (NO), Normally Closed (NC), or both (SPDT)?
3. Consider Mechanical and Physical Constraints
- What are the size limitations for the micro switch within the appliance?
- What type of actuator is most suitable for the mechanical movement? (e.g., pin plunger, lever, roller).
- How will the switch be mounted? Are specific mounting hole patterns required?
4. Evaluate Performance Characteristics
- What operating force is desired or necessary?
- How fast does the switch need to respond?
- What is the required mechanical life (number of cycles)?
5. Review Available Options and Manufacturers
- Research micro switch manufacturers and their product lines that meet your initial criteria. Companies specialize in different types of micro switches, from basic models to sealed or subminiature versions.
- Compare specifications, datasheets, and certifications (if applicable).
6. Test and Validate
- Whenever possible, obtain samples of shortlisted micro switches and conduct thorough testing in a real-world or simulated environment. This helps confirm that the chosen micro switch performs as expected under actual operating conditions.
By systematically addressing these factors, you can make an informed decision and select a micro switch that not only fits your appliance's technical requirements but also enhances its reliability and user experience.
Micro switches are small yet mighty components that enable the sophisticated functionalities we often take for granted in modern appliances. Their reliability, speed, and efficiency are paramount for providing feedback and control within various systems. Understanding the diverse types of micro switches, their actuation methods, and crucial selection criteria empowers engineers and product designers to choose the optimal switch for their specific applications, unlocking the full potential of their projects and products. As technology advances, the role of these miniature marvels will continue to expand, making their proper selection more critical than ever.
A micro switch, also known as a snap-action switch, is a mechanical switch that operates rapidly with minimal force to transfer electrical contacts. It's crucial in appliances because it provides essential feedback and control, enabling functionalities like detecting if a door is closed or regulating temperature, thereby making appliances "smart".
The main types of micro switch actuators include Pin Plunger Actuated Micro Switches, activated by a direct push; Lever Actuated Micro Switches, which use a lever for activation; Roller Actuated Micro Switches, designed for continuous motion; and Basic Push Button Actuated Micro Switches, which are simple push buttons.
When selecting a micro switch, key electrical factors to consider include the required voltage (AC or DC) and current (amperes) the switch will handle, ensuring it matches the appliance's electrical specifications to prevent failure. Additionally, decide if a Normally Open (NO), Normally Closed (NC), or Single Pole Double Throw (SPDT) configuration is needed for your circuit.
Environmental conditions such as temperature, humidity, dust, and potential exposure to liquids can affect a micro switch's durability and reliability. For harsh environments, selecting micro switches with appropriate IP (Ingress Protection) ratings for resistance against dust and water is crucial.
Micro switches are widely used in a variety of applications, including home appliances (refrigerators, microwaves), automotive systems (door sensors), industrial machinery (limit switches, conveyor belts), security devices, consumer electronics (computer mice), 3D printers, and robotics projects.
