A 3-way push switch is an essential electrical component that allows you to control a single light fixture from two different locations. This setup is particularly useful in larger spaces such as hallways, staircases, or large rooms, where you might want to turn the lights on or off from either end. In this comprehensive guide, we will walk you through the steps needed to connect a 3-way push switch, along with detailed diagrams, safety precautions, and troubleshooting tips.
What is a 3-Way Switch?

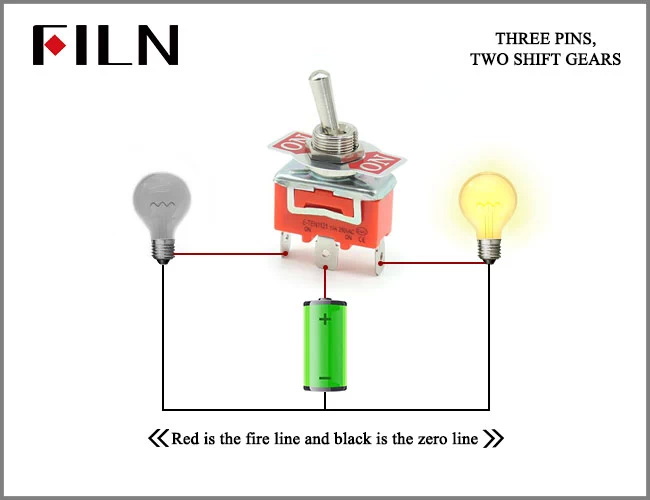

A 3-way switch is designed to allow control of a light fixture from two separate locations. Unlike standard switches that have distinct "on" and "off" positions, 3-way switches do not have these markings because their function depends on the position of the other switch in the circuit.
Each 3-way switch has three terminal screws:
- Common Terminal: Usually darker in color, this terminal connects to the power source or the light fixture.
- Traveler Terminals: Two lighter-colored terminals that connect to the traveler wires, allowing current to flow between the two switches.
Before starting your installation, gather the following tools and materials:
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Needle-nose pliers
- Voltage tester
- Electrical tape
- Wire nuts
- Two 3-way push switches
- Electrical wire (14/2 or 14/3 cable depending on your configuration)
1. Turn Off Power: Always turn off the circuit breaker that controls the power to the switches you are working on.
2. Test for Voltage: Use a voltage tester to ensure there is no power running through the wires before you begin working.
3. Wear Protective Gear: Use safety goggles and gloves to protect yourself from any accidental shocks or injuries.
If you are replacing old switches, carefully remove them from their boxes. Take note of how they are wired by taking pictures for reference.

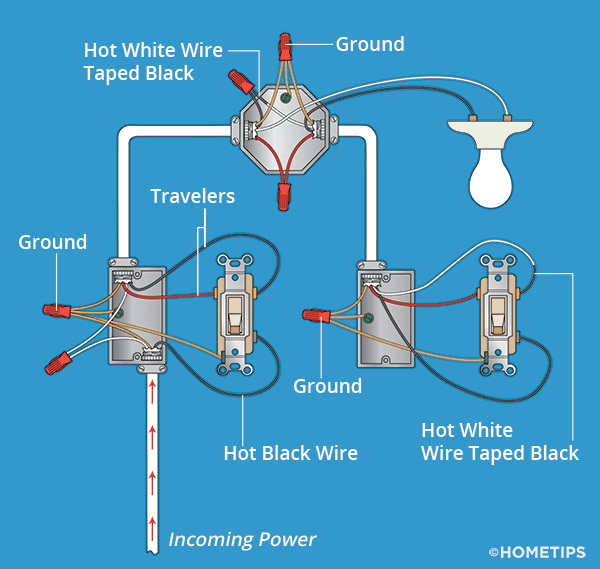

In a typical setup, you will encounter three wires in your cable:
- Black Wire: Hot wire (power)
- Red Wire: Traveler wire (connects between switches)
- White Wire: Neutral wire (not used in switch connections but connected at the fixture)
1. Connect Ground Wire: Attach the bare or green ground wire to the green screw on the switch.
2. Connect Common Wire:
- If power comes to this switch first, connect the black hot wire from your power source to the common terminal (dark screw).
- If this switch is at the end of the circuit, connect it to the black wire leading to your light fixture.
3. Connect Traveler Wires: Attach the red and black traveler wires to the traveler terminals (light screws). It does not matter which traveler connects to which terminal.
4. Secure Connections: Use wire nuts and electrical tape to secure all connections.
1. Connect Ground Wire: Again, attach the ground wire to its respective screw.
2. Connect Common Wire:
- Connect the black wire leading to your light fixture to the common terminal.
3. Connect Traveler Wires: The red and black traveler wires from the first switch should be connected to this switch's traveler terminals.
4. Secure Connections: As before, use wire nuts and electrical tape for safety.
Once both switches are wired correctly:
1. Turn on the circuit breaker.
2. Test each switch by toggling them; both should control the light fixture effectively.
3. If either switch does not work as intended, double-check your connections against your reference pictures or diagrams.
Even with careful installation, issues can arise with 3-way switches. Here are some common problems and solutions:
- Switches Not Working Together: If one switch does not control the light when toggled, check that both traveler wires are connected correctly at both switches.
- Light Flickering: This could be due to loose connections. Ensure all wires are tightly secured under their respective screws.
- Power Not Reaching Switches: Verify that power is coming into one of your switches by using a voltage tester before proceeding with installation.

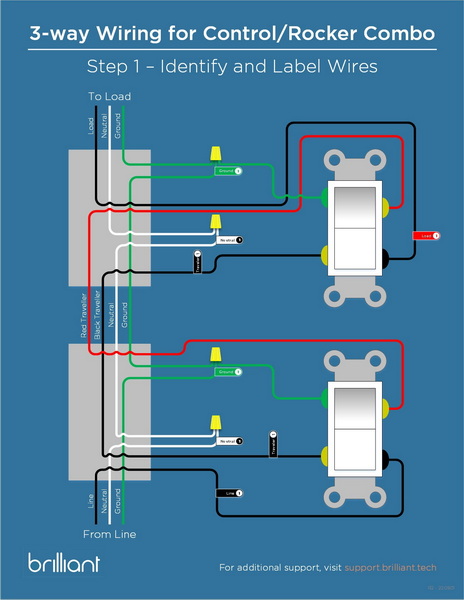

1. Label Your Wires: Before disconnecting any old switches, label each wire with tape or markers according to its function (e.g., common, traveler). This will simplify reinstallation.
2. Use Quality Materials: Invest in good quality switches and wiring materials. Cheaper components may lead to failures or hazards down the line.
3. Consult Local Codes: Always ensure that your installation complies with local electrical codes and regulations.
4. Consider Smart Switches: If you're interested in modernizing your home further, consider using smart 3-way switches that can be controlled via smartphone apps or voice commands.
5. Practice Good Cable Management: When pushing wires back into boxes, ensure they are neatly arranged and not crimped or pinched.
Connecting a 3-way push switch can seem daunting at first due to its complexity compared to standard switches. However, by following this guide step-by-step and adhering to safety precautions, you can successfully install a system that enhances convenience and functionality in your home.
With proper wiring techniques and troubleshooting methods in mind, you can enjoy seamless control over your lighting setup from multiple locations without hassle.
No, only specific switches designed as 3-way switches can be used in this configuration due to their unique wiring setup.
If wired incorrectly, one or both switches may not control the light properly; it may only work from one location or not at all.
Basic tools like screwdrivers, wire strippers, and a voltage tester are sufficient for most installations.
Yes, you can use a dimmer switch as one of your two switches in a 3-way configuration; just ensure it is compatible with such setups.
While many DIY enthusiasts can handle this task with care and proper instructions, hiring an electrician is recommended if you're unsure about electrical work.
