Micro switches, also known as miniature snap-action switches, are widely used in various applications due to their reliability and precision. They are commonly found in household appliances, industrial machinery, and automotive systems. This guide will provide a detailed overview of how to connect a micro switch, including necessary tools, wiring diagrams, and troubleshooting tips.

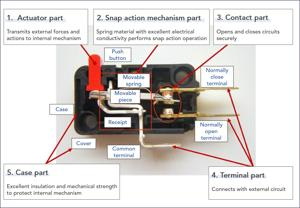

A micro switch is an electromechanical device that operates when a small amount of force is applied to its actuator. It typically has three terminals:
- Common (C): The main terminal that connects to either the Normally Open (NO) or Normally Closed (NC) terminal.
- Normally Open (NO): The circuit remains open until the switch is activated.
- Normally Closed (NC): The circuit remains closed until the switch is activated.
This functionality allows micro switches to be used in various applications where reliable switching is required.
Before starting the connection process, gather the following tools and materials:
- Micro switch
- Wire strippers
- Soldering iron (optional)
- Solder (optional)
- Electrical tape or heat shrink tubing
- Screwdrivers
- Multimeter (for testing)
Identify the type of micro switch you are using. Common configurations include:
- SPST (Single Pole Single Throw): Has two terminals (C and NO).
- SPDT (Single Pole Double Throw): Has three terminals (C, NO, NC).
- DPDT (Double Pole Double Throw): Two independent SPDT switches in one housing.
Understanding your micro switch's configuration is crucial for proper wiring.
Using wire strippers, remove about 1/4 inch of insulation from both ends of the wires you will use for connections. Ensure that the exposed wire length is sufficient for secure connections but not too long to avoid short circuits.
Depending on your micro switch's terminal type:
- For Quick Connect Terminals: Insert the stripped end of the wire into the terminal and ensure it is securely connected.
- For Screw Terminals: Wrap the stripped wire around the screw and tighten it with a screwdriver.
- For Soldering: Place the stripped wire on the terminal and solder them together with a soldering iron.
Regardless of the connection method, ensure that all connections are secure to prevent loose contacts.
Use electrical tape or heat shrink tubing to insulate all exposed connections. This step prevents short circuits and enhances safety.
Double-check each connection point to ensure that wires are properly connected to their respective terminals. Look for any exposed copper wires that could lead to short circuits.
Using a multimeter set to continuity mode, test each terminal:
1. For NO configuration, check continuity between C and NO when pressed.
2. For NC configuration, check continuity between C and NC when not pressed.
If everything is functioning correctly, your micro switch should operate as intended.
Micro switches are versatile components used in various applications, including:
- Home appliances like washing machines and ovens
- Industrial machinery for safety interlocks
- Automotive systems for door locks and seatbelt reminders
- Consumer electronics such as keyboards and remote controls
- Medical devices for safety features
- Gaming devices for precise control inputs
- Elevators for floor selection buttons
- Vending machines for product dispensing mechanisms
Their ability to provide precise control makes them indispensable in these settings.
When selecting a micro switch for your application, it's crucial to understand its ratings. These include:
- Voltage Rating: Indicates the maximum voltage that can be applied across the switch without causing failure.
- Current Rating: Specifies how much current can safely pass through the switch without overheating or damaging it.
Choosing a switch with appropriate ratings ensures safety and longevity in your application. Always refer to manufacturer specifications when selecting components for your projects.
To further clarify how to connect a micro switch, here are some common wiring diagrams based on different configurations:
For an SPST micro switch:
```
Power Source ---- C ---- NO
```
In this setup, when the switch is pressed, current flows from the power source through terminal C to terminal NO.
For an SPDT micro switch:
```
Power Source ---- C ---- NO
|
---- NC
```
In this configuration, pressing the switch will connect C to NO while disconnecting it from NC.
For a DPDT micro switch:
```
Power Source ---- C1 ---- NO1
|
---- NC1
Power Source ---- C2 ---- NO2
|
---- NC2
```
This allows for controlling two separate circuits simultaneously with one switch.
To ensure optimal performance and longevity of your micro switches, consider these best practices:
- Use Appropriate Wire Gauge: Choose wires that can handle the current load without overheating.
- Avoid Over-tightening Connections: This can damage terminals or lead to poor connections.
- Keep Connections Clean: Dirt or corrosion can impede electrical flow; ensure connections are clean before assembly.
- Regular Testing: Periodically test your micro switches to ensure they function correctly over time.
If your micro switch does not work as expected:
- Ensure all connections are secure.
- Check if the switch has exceeded its voltage or current ratings.
- Use a multimeter to test for continuity in each terminal.
- Inspect for physical damage on the actuator or housing of the switch.
If problems persist after checking these factors, consider replacing the micro switch as it may be faulty.
When connecting and using micro switches, it's essential to keep safety in mind:
1. Disconnect Power Before Working: Always turn off power before making any electrical connections to prevent shocks or shorts.
2. Use Proper Insulation: Ensure all exposed wires are insulated properly with electrical tape or heat shrink tubing.
3. Follow Manufacturer Guidelines: Adhere strictly to guidelines provided by manufacturers regarding installation and usage limits.
4. Test Equipment Regularly: Regularly check equipment using multimeters or other testing devices to ensure safe operation.
5. Work in a Dry Environment: Avoid working in wet conditions which could lead to electrical hazards.
By following these safety precautions, you can minimize risks associated with working on electrical components like micro switches.
Micro switches have advanced beyond simple on/off functions into more complex applications across various industries. Here are some innovative uses:
In industrial automation systems, micro switches play a vital role in controlling machinery operations. They can be integrated into conveyor systems where they detect product presence or absence at specific points along the line. This ensures efficient operation and reduces waste by preventing jams or misfeeds.
Micro switches are frequently used in robotics as limit switches. They help determine when parts of a robot reach their maximum range of motion. For example, they can signal when an arm has fully extended or retracted, allowing for precise control over movements and actions within automated processes.
In security systems, micro switches can be employed as door sensors. When a door opens or closes, it activates a micro switch that triggers an alarm system or sends notifications. This application enhances security measures by ensuring doors are monitored continuously.
In smart home setups, micro switches can be integrated into lighting systems or appliances. They allow users to automate lights based on occupancy; when someone enters a room, the micro switch activates lighting without manual intervention.
Connecting a micro switch involves understanding its configuration, preparing wires correctly, ensuring secure connections, and testing functionality. By following this guide, you can successfully integrate micro switches into your projects or repairs. Their reliability makes them essential components in various devices across multiple industries. With proper installation and maintenance, you can ensure that your micro switches operate effectively over their lifespan.
Micro switches play a critical role in automation and control systems across many industries. Whether you're working on home projects or industrial applications, understanding how to connect these devices will enhance your technical skills and improve system performance. As technology continues evolving, so too will applications for micro switches—making them an important component in future innovations as well.
Check the labeling on the switch. NO means it is open when not pressed; NC means it is closed when not pressed.
No, each micro switch has specific voltage and current ratings. Exceeding these ratings can damage the switch.
Connect common terminals (C1 and C2) to your power source or load. Connect NO and NC terminals according to your circuit requirements.
They are used in home appliances, industrial equipment, automotive systems, consumer electronics where reliable switching is necessary, gaming devices for precise control inputs, medical devices for safety features, automation systems in factories, robotics applications for limit detection, and security systems as door sensors.
Use a multimeter set to continuity mode. When pressed, check continuity between C and either NO or NC terminals based on your configuration.
