Installing a push switch on a wireless microphone can enhance its functionality, particularly for applications requiring quick mute or talk-back capabilities. This article will guide you through the process step-by-step, ensuring that you have all the necessary information to complete the installation successfully.
Wireless Microphone System

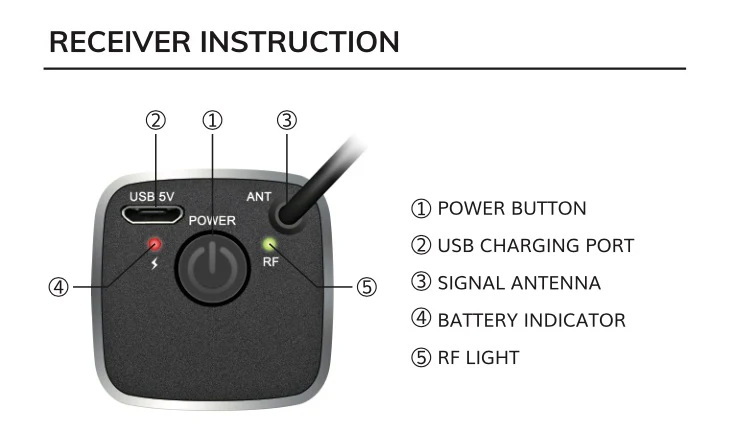

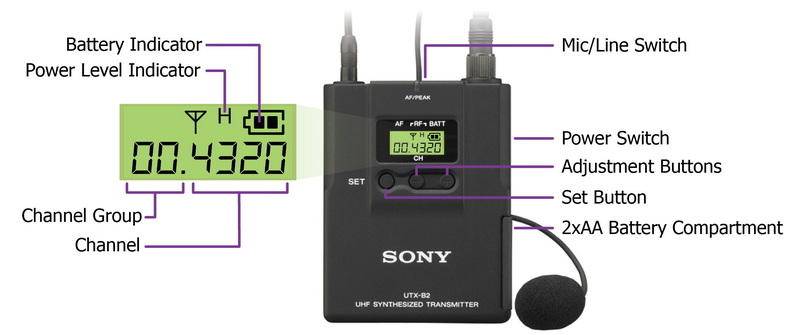

A typical wireless microphone system consists of two main components: a transmitter and a receiver. The transmitter is worn by the speaker and captures audio, while the receiver connects to an audio system to transmit sound.
Push Switch
A push switch (or push-to-talk switch) allows users to control when the microphone is active. This is particularly useful in environments where background noise is prevalent, enabling the user to mute the microphone when not speaking.
- Push switch (normally open)
- Soldering iron and solder
- Wire strippers
- Electrical tape
- Multimeter (for testing)
- Screwdriver set
- Heat shrink tubing (optional)
Before starting, ensure you have all tools and materials ready. This will streamline the installation process.
To access the internal components of your wireless microphone transmitter:

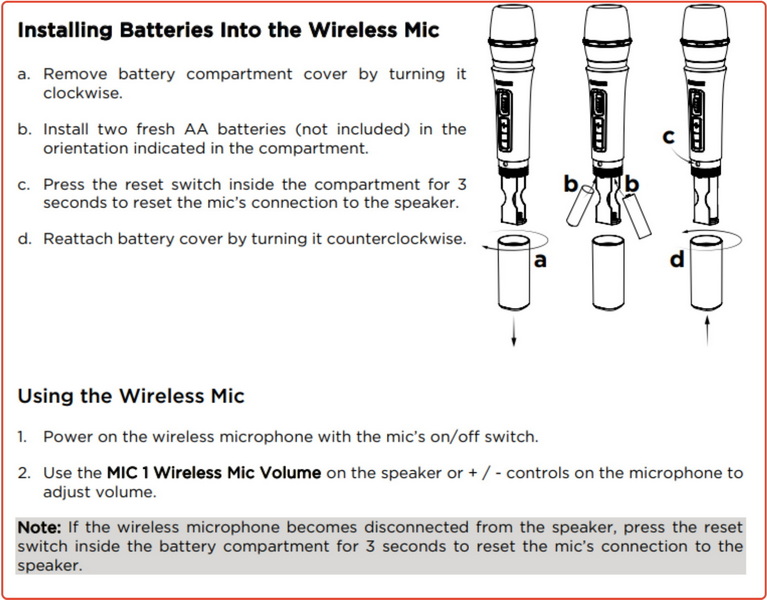

1. Remove the battery cover and take out the batteries.
2. Unscrew the casing of the transmitter carefully to avoid damaging any internal parts.
Inside the transmitter, locate the microphone input terminals. You will typically find two terminals labeled as follows:
- Positive (+) Terminal
- Negative (-) Terminal
These are where you will connect your push switch.
1. Identify Terminals: A standard push switch has two terminals.
2. Wiring: Use wire strippers to prepare two short wires that will connect from the push switch terminals to the microphone input terminals.
1. Connect Wires: Solder one wire from one terminal of the push switch to the positive terminal of the microphone input.
2. Connect Second Wire: Solder another wire from the second terminal of the push switch to the negative terminal of the microphone input.
3. Check Connections: Use a multimeter to ensure that there are no shorts and that connections are secure.
To prevent any short circuits:
1. Wrap each soldered connection with electrical tape or use heat shrink tubing.
2. Ensure that no exposed wires are touching each other or any metal parts inside the transmitter.
1. Carefully place all components back into their original positions.
2. Screw the casing back together securely.
3. Reinsert batteries into their compartment.
1. Turn on your wireless microphone system.
2. Pressing the push switch should now mute/unmute your microphone.
3. Check for any audio interference or issues during operation.
While installing a push switch on your wireless mic is generally straightforward, you may encounter some common issues:
- Microphone Not Responding: If pressing the switch does not mute or unmute your mic, double-check your solder connections for any loose wires or shorts.
- Audio Interference: If you experience static or dropouts, ensure that you are using a quality wireless system and check for interference from other devices nearby.
- Battery Issues: Ensure that fresh batteries are installed and that they are inserted correctly according to polarity.
Wireless microphones offer significant advantages in various settings, including live performances, public speaking events, and broadcasting scenarios. Here are some additional considerations when using wireless microphones:
- Frequency Management: Wireless microphones operate on specific frequencies that can be affected by other electronic devices. It's essential to select an appropriate frequency that minimizes interference from other wireless systems or electronic devices in your environment[3][10].
- Battery Life: Regularly check battery levels before performances or recordings. Consider using rechargeable batteries for sustainability and cost-effectiveness over time.
- Microphone Placement: The positioning of both transmitter and receiver can impact audio quality significantly. Ensure there are minimal obstructions between them to maintain a clear signal[10].
Incorporating a push switch into your wireless microphone setup provides several benefits:
- Control Over Audio Output: Users can easily mute their microphones when not speaking, reducing background noise during performances or presentations.
- Improved Battery Life: By muting when not in use, you conserve battery life, ensuring longer operation during events.
- Enhanced User Experience: A push switch adds convenience for users who need quick access to mute functions without fumbling with settings on their devices.
Installing a push switch on a wireless microphone can significantly improve its usability in various settings, from live performances to presentations. By following these steps carefully, you can achieve a professional installation that meets your needs while enhancing your overall audio experience.
You should use a normally open push switch, which closes the circuit only when pressed.
Most wireless microphones can accommodate a push switch, but it's essential to check your specific model's compatibility.
If installed correctly, it should not affect audio quality; however, poor connections can lead to static or interruptions.
Check all connections for security and ensure there are no shorts in wiring. Use a multimeter to test continuity through the switch.
Yes, as long as you follow proper safety precautions and ensure that no power is supplied while working inside the unit.
This guide provides detailed instructions on installing a push switch on a wireless mic system, ensuring functionality and ease of use while maintaining audio quality throughout your projects.
