Creating a push switch can be a rewarding project, whether you're looking to enhance your DIY skills or need a switch for a specific application. A push switch is a simple device that allows you to control an electrical circuit by pressing a button. In this article, we will guide you through the process of making your own push switch from commonly available materials.
To successfully create a push switch, gather the following materials:
- Copper strips: These will serve as the conductive parts of the switch.
- Copper wire: Used for connections.
- Super glue: For assembling parts.
- Empty pen refill: This will act as the housing for the internal mechanism.
- Pen cap: Used for the bottom part of the switch.
- Soldering iron and solder: For making secure electrical connections.
- LED light and resistor: To test your switch.
- Pliers and scissors: For manipulating materials.
Before starting, sketch a simple design of your push switch. This blueprint will help you visualize how all components fit together.
1. Take a small piece of copper strip and bend it into a loop.
2. Insert this loop into the empty pen refill.
3. Attach some copper wire to create connections that will lead out of the refill.
1. Use some copper wire to create a spring-like structure around the refill.
2. Insert this assembly vertically into the pen cap, ensuring that it can move freely.
1. Cut another piece of copper strip and insert it through the bottom cap.
2. Ensure that it can touch the spring when pressed down.
1. Connect wires from both terminals of your switch to your power source (e.g., a battery).
2. Solder these connections for durability.
1. Glue all parts together securely.
2. Connect an LED and resistor in series with your power source to test if your switch works.
Push button switches are versatile devices used in various applications across different industries. Their primary function is to control electrical circuits by either allowing or interrupting current flow when pressed.
There are several types of push button switches, each serving different functions:
- Momentary Switches: These switches only remain active while being pressed. They are commonly used in doorbells and keyboards.
- Latching Switches: Once activated, these switches remain in their new state until pressed again, making them suitable for applications like light switches.

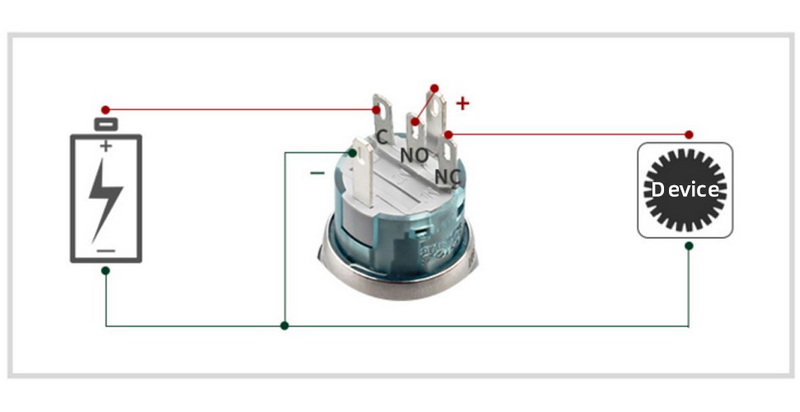

- Normally Open (NO) and Normally Closed (NC) configurations determine whether current flows when the button is not pressed or pressed.
Understanding these types can help you choose the right switch for your project.
Push button switches find versatile applications in various fields:
- Consumer Electronics: Used in devices like remote controls, gaming controllers, and audio equipment.
- Industrial Machinery: Essential for controlling heavy machinery and automation systems.
- Medical Equipment: Used in devices requiring precise control, such as infusion pumps and diagnostic machines.
- Home Automation: Integrated into smart home systems for controlling lighting, security alarms, and appliances.
Push button switches offer several advantages:
- Simplicity: Their straightforward operation makes them user-friendly.
- Versatility: They can be used in numerous applications across different sectors.
- Reliability: With proper installation and maintenance, push button switches can provide years of service without failure.
Building a push switch is not only an excellent way to learn about basic electronics but also provides you with a functional tool for various projects. By following these steps, you can create a reliable push switch using materials you likely already have at home. Understanding its applications, types, and benefits can further enhance your projects and innovations.
A push switch is an electrical component that allows current to flow or stop flowing when pressed. It is commonly used in various electronic devices.
Yes, you can use alternative materials such as cardboard or plastic, but ensure they are conductive where necessary and durable enough for repeated use.
You can test your push switch by connecting it in series with an LED and a power source; if the LED lights up when you press the button, your switch is functioning correctly.
While soldering provides stronger connections, you can also use twisting or crimping methods if you do not have soldering tools available.
Push switches are used in various applications such as turning on lights, operating motors, or as part of more complex electronic circuits.
