Micro switches are miniature, snap-action switches that are widely used in various applications, including household appliances, industrial equipment, and automotive systems. Their reliability and quick response time make them essential components in many electronic devices. This article will guide you through the process of making a micro switch, covering everything from understanding its components to wiring it correctly. We will also include diagrams and images to illustrate the steps clearly.
What is a Micro Switch?

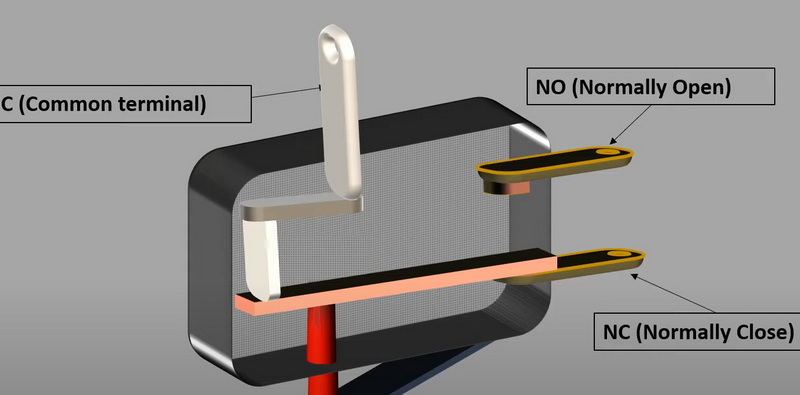

A micro switch, also known as a snap-action switch, operates based on mechanical movement. When an external force is applied to the actuator (usually a lever), it triggers the internal mechanism, allowing current to flow through the switch. The switch typically has three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC).
- COM: The common terminal that connects to either NO or NC.
- NO: The terminal that allows current to flow only when the switch is activated.
- NC: The terminal that allows current to flow until the switch is activated.

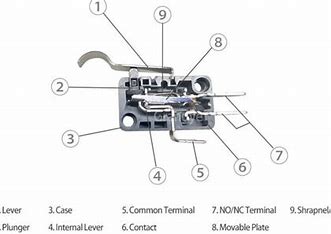

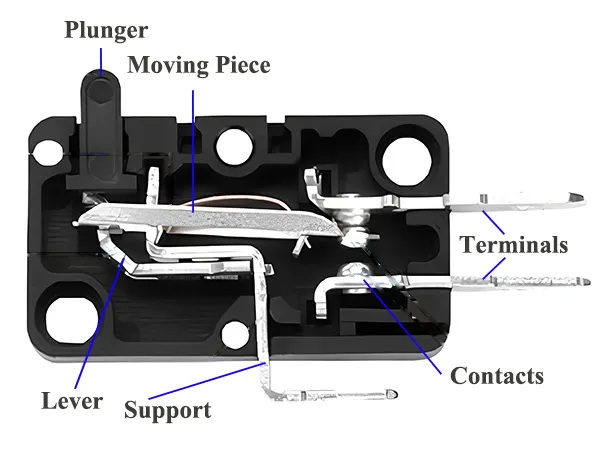

Understanding the components of a micro switch is crucial for making one. Here are the primary parts:
- Actuator: The part that responds to external pressure.
- Contacts: The internal components that open or close the circuit.
- Housing: Protects the internal components from dust and moisture.
- Terminals: Connection points for wiring.
Micro switches come in various types based on their configuration:
- Single-Pole Single-Throw (SPST): Two terminals (COM and NO).
- Single-Pole Double-Throw (SPDT): Three terminals (COM, NO, NC).
- Double-Pole Double-Throw (DPDT): Six terminals (two COMs, two NOs, two NCs).
To make a micro switch, you will need:
- Micro switch components
- Wire strippers
- Soldering iron and solder
- Electrical tape or heat shrink tubing
- Multimeter for testing
- Screwdrivers
Ensure you have all necessary materials and tools ready before starting.
Examine your micro switch carefully to identify the COM, NO, and NC terminals. This information is usually marked on the housing.
Use wire strippers to strip about half an inch of insulation from each wire end. This will expose enough copper for a secure connection.
1. Connect COM: Attach one wire from your power source to the COM terminal.
2. Connect NO or NC: Depending on your application, connect another wire to either the NO or NC terminal.
3. Secure Connections: For SPDT switches, ensure you connect both NO and NC if required by your circuit design.
If you're soldering:
1. Heat the soldering iron.
2. Apply solder to the joint where the wire meets the terminal.
3. Allow it to cool for a solid connection.
After soldering, use electrical tape or heat shrink tubing to insulate all connections. This prevents short circuits and ensures safety.
Use a multimeter to test your connections:
1. Set your multimeter to continuity mode.
2. Press the actuator and check if it completes the circuit between COM and NO while breaking it between COM and NC.
Micro switches are used in various applications such as:
- Home Appliances: Washing machines, microwaves, etc.
- Industrial Equipment: Safety interlocks on machinery.
- Automotive Systems: Seatbelt sensors, door switches.
Always use high-quality wires and connectors to ensure durability.
Refer to specific guidelines provided by manufacturers for optimal performance.
Ensure all connections are insulated properly to prevent electrical hazards.
Making a micro switch involves understanding its components, preparing materials, connecting wires correctly, soldering if necessary, insulating connections, and testing functionality. By following these steps carefully, you can create reliable micro switches suitable for various applications.
Micro switches are used in various applications like home appliances, industrial equipment, and automotive systems due to their reliability and quick response time.
You can test a micro switch using a multimeter set to continuity mode; check if pressing the actuator completes or breaks the circuit as expected.
It's best to use insulated copper wire suitable for your application's voltage and current requirements.
Incorrect connections can lead to malfunctioning circuits or damage to the micro switch; always double-check your wiring against diagrams.
Select based on your application needs—consider factors like electrical ratings, actuator type, environmental conditions, and pole/throw configurations.
