Replacing the micro switch on your GE PSC3RGXCFSS refrigerator is a straightforward process that can be accomplished with some basic tools and a little patience. This guide will walk you through the steps needed to successfully replace the freezer door micro switch, ensuring your appliance functions correctly once again.

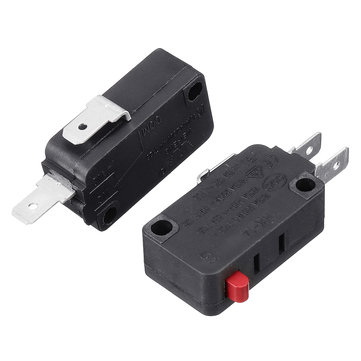

What is a Micro Switch?
A micro switch is a small but crucial component in your refrigerator that controls various functions, including the ice and water dispenser and the light in the freezer compartment. If your dispenser is not functioning properly or if the light remains on when the door is closed, it may be time to replace this switch.
Why Replace the Micro Switch?
Over time, micro switches can wear out due to repeated use or exposure to temperature fluctuations and moisture. A malfunctioning switch can lead to several issues, including:
- Inconsistent Lighting: The light may stay on continuously, leading to energy waste.
- Dispenser Issues: The ice or water dispenser may fail to operate, causing inconvenience.
- Temperature Control Problems: In some cases, a faulty switch can affect temperature regulation within the freezer.
Before starting, gather the following tools:
- Philips screwdriver
- Needle nose pliers
- Putty knife
- Multimeter (optional for testing)
- Flashlight: To help see in darker areas of the refrigerator.
- Towel or rag: For cleaning up any spills or debris.
1. Unplug the Refrigerator: Always disconnect power before performing any repairs to avoid electrical shock.
2. Wear Safety Gear: Use gloves and safety goggles to protect yourself from sharp edges and debris.
3. Work in a Well-Lit Area: Ensure your workspace is well-lit so you can see all components clearly.
1. Locate the Cover: The dispenser cover is usually found on the front of the refrigerator.
2. Use a Putty Knife: Carefully insert the putty knife between the cover and the refrigerator body to release locking tabs.
3. Gently Pry Off: Work your way around to ensure all tabs are released without damaging the cover.
1. Access Control Assembly: Once the cover is off, you will see the control assembly.
2. Disconnect Harnesses: Lift up on locking tabs to disconnect wiring harnesses from the control board.
1. Unscrew Assembly: Use a Philips screwdriver to remove screws holding the control assembly in place.
2. Lift Out Assembly: Carefully pull out the assembly to access the micro switch.
3. Release Locking Tabs: Gently press on locking tabs of the micro switch while pulling it out.
1. Connect Wires: Attach wires to the new micro switch, ensuring they fit snugly.
2. Insert Switch: Align and press down until it snaps into place securely.
1. Reattach Control Assembly: Slide it back into position and secure with screws.
2. Reconnect Wiring Harnesses: Ensure all connectors are firmly attached.
1. Align Cover: Position the dispenser cover back onto its place.
2. Snap into Place: Press down gently until all locking tabs click back into position.
1. Plug In Refrigerator: Reconnect power to your refrigerator.
2. Test Functionality: Check if everything works correctly, including lights and dispensers.
After replacing your micro switch, you might encounter some issues that could arise during or after installation:
If your freezer light remains on even after replacing the micro switch:
- Double-check that all wiring connections are secure.
- Ensure that there are no obstructions preventing the door from closing completely.
- Test the new micro switch with a multimeter to confirm it's functioning correctly.
If your ice or water dispenser does not work after replacing the micro switch:
- Verify that you have reconnected all wiring harnesses properly.
- Check for any ice blockages in the dispenser chute that might prevent operation.
- Inspect other components like solenoids or valves that may also affect dispensing functionality.
To prolong the life of your refrigerator and its components, consider these maintenance tips:
1. Regular Cleaning: Keep both inside and outside of your refrigerator clean to prevent dust buildup and ensure proper airflow.
2. Check Seals: Inspect door seals regularly for wear and tear; damaged seals can lead to temperature inconsistencies.
3. Monitor Temperature Settings: Ensure your refrigerator is set at optimal temperatures (usually around 37°F for refrigerators and 0°F for freezers).
4. Defrost Regularly: If applicable, defrost your freezer periodically to prevent ice buildup which can affect performance.
Replacing the freezer door micro switch on your GE PSC3RGXCFSS refrigerator can save you money on repairs and extend the life of your appliance. By following these steps carefully, you can ensure that your refrigerator operates efficiently once again. Regular maintenance will also help prevent future issues, keeping your appliance running smoothly for years to come.
If you notice that your water dispenser isn't working or if your freezer light stays on when closed, these are signs that your micro switch may need replacement.
Yes, replacing a micro switch is a DIY task that can be accomplished with basic tools and some careful handling.
Typically, a replacement micro switch costs between $15 and $30, depending on where you purchase it from.
As long as you unplug it before starting repairs and follow safety precautions, it is safe to work on your refrigerator.
If replacing the micro switch doesn't resolve your problems, there may be other underlying issues with your refrigerator's electrical system or other components.
