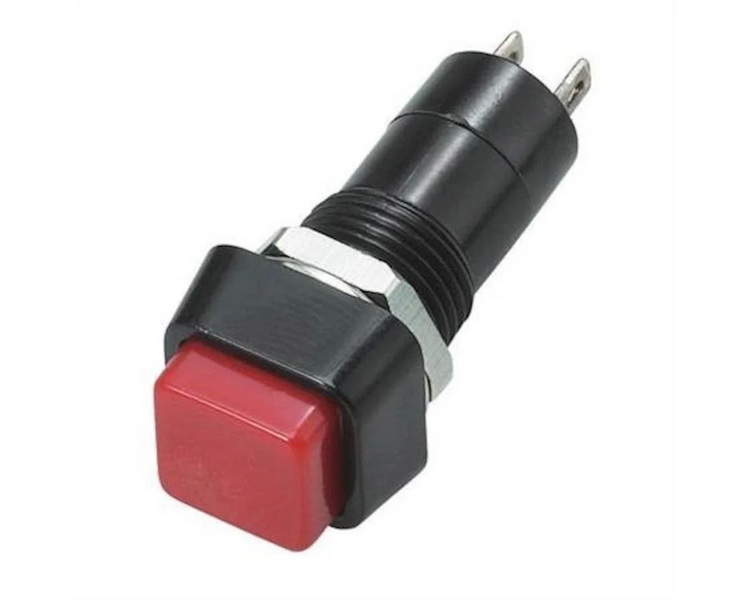

Push switches, such as those offered by Radio Shack, are essential components in various electronic projects. They serve as simple on/off controls for circuits and can be used in a multitude of applications, from hobby electronics to more complex devices. This guide will provide a comprehensive overview of how to use a Radio Shack push switch, including wiring diagrams, practical applications, troubleshooting tips, and advanced projects.
Before diving into the specifics of using a Radio Shack push switch, it's important to understand what a push switch is and how it functions.
- Definition: A push switch is a momentary switch that completes or interrupts an electrical circuit when pressed.

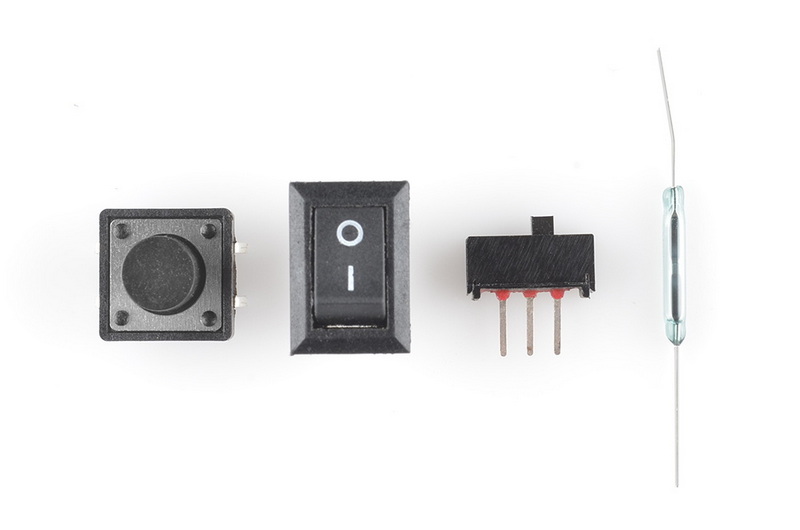

- Types: There are various types of push switches, including:
- Momentary Push Switch: Only stays on while pressed.
- Latching Push Switch: Remains on after being pressed once until pressed again.
To effectively use a Radio Shack push switch in your project, you will need the following components:
- Radio Shack Push Switch: Choose between momentary or latching types based on your project needs.
- Breadboard or PCB: For prototyping your circuit.
- Wires: To connect components.
- Power Source: Such as batteries or a power supply.
- Load: This could be an LED, motor, or any other component you wish to control.

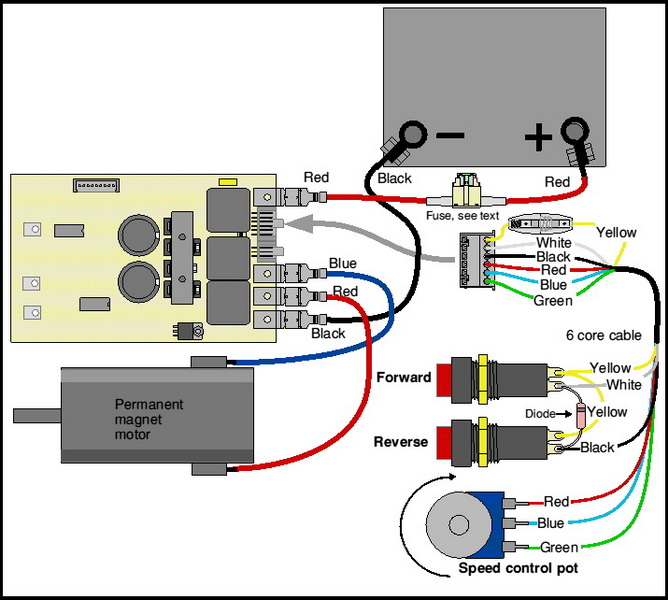

Wiring a push switch is straightforward. Below are the steps and an accompanying diagram to illustrate the process.
1. Identify the Terminals: Most push switches have two terminals. For momentary switches, these terminals are usually labeled as NO (Normally Open) and C (Common).
2. Connect the Power Source:
- Connect one terminal of the switch (NO) to the positive terminal of your power source.
- Connect the second terminal (C) to your load (e.g., LED).
3. Complete the Circuit:
- Connect the other side of your load back to the negative terminal of your power source.
Once everything is wired up, it's time to test your circuit:
- Press the push switch. If using an LED, it should light up when you press and hold the button.
- Release the button. For momentary switches, the LED should turn off immediately.
Push switches can be utilized in various applications:
- LED Control: Simple circuits for turning LEDs on and off.
- Toys and Gadgets: Used in remote controls and toys for activation.
- Home Automation: Can be integrated into larger systems for controlling appliances.
- Computer Peripherals: Used in keyboards and mice for triggering actions.
- Automotive Applications: Control lights or other electronic devices in vehicles.
For those looking to create more complex circuits with push switches, consider these advanced wiring techniques:
You can wire multiple switches in one circuit for different functionalities:
- Parallel Wiring: Connect multiple momentary switches in parallel so that pressing any one of them will activate the load.
- Series Wiring: Use series wiring if you want all switches to be pressed simultaneously to activate the load.
Adding an LED indicator can help visualize when a device is active:
1. Connect an LED in parallel with your load.
2. Ensure that the LED has its own current-limiting resistor.
3. This setup allows you to see when power is flowing through your circuit.
If your circuit does not work as expected:
- Check Connections: Ensure all wires are securely connected and that there are no loose connections.
- Inspect the Switch: Test if the switch is functioning properly by checking continuity with a multimeter.
- Power Supply Issues: Verify that your power source is providing adequate voltage.
Here are some practical projects where you can utilize Radio Shack push switches effectively:
Create a simple circuit where pressing a button turns on an LED light. This project is great for beginners learning about circuits.
Use a push switch to create a doorbell system that activates a buzzer or chime when pressed.
Integrate push switches into remote-controlled cars for steering or acceleration controls.
Incorporate multiple push switches into a home automation system to control lights or appliances remotely via microcontrollers like Arduino or Raspberry Pi.
Build simple electronic musical instruments that use push buttons to trigger sounds or notes.
When working with electrical components, always follow safety guidelines:
- Ensure all power sources are disconnected before making changes to your circuit.
- Use appropriate resistors when connecting LEDs to prevent damage from excess current.
- Be cautious when working with high-voltage applications; ensure components are rated for the voltage used.
When dealing with different types of circuits involving push switches, understanding various configurations can enhance functionality significantly:

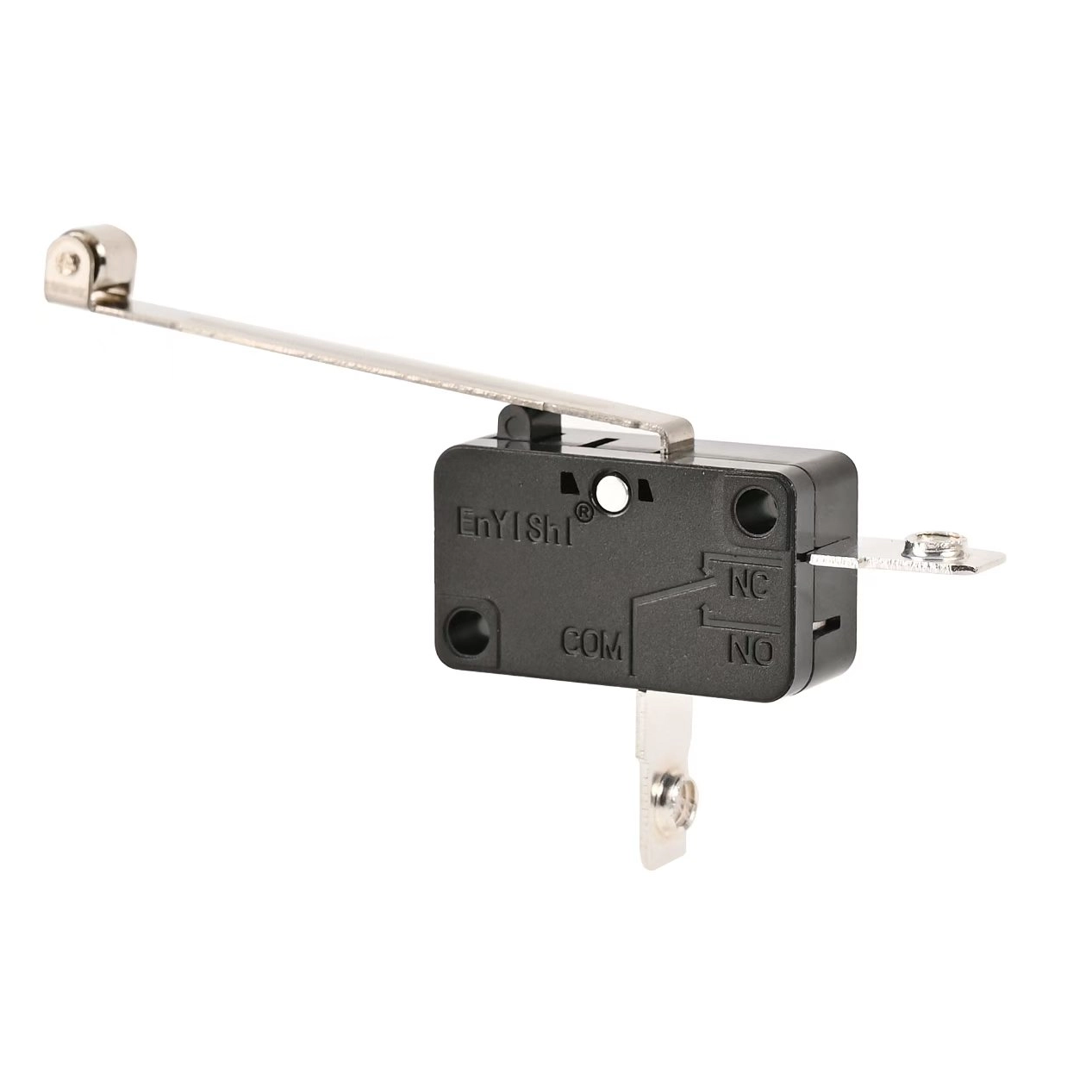

In many applications, knowing whether to use NO or NC configurations can change how devices respond:
- Normally Open (NO): The circuit remains open until the button is pressed. This configuration is ideal for devices like alarms where you want them activated only when needed.
- Normally Closed (NC): The circuit remains closed until the button is pressed. This setup works well for safety mechanisms where pressing the button should deactivate something critical (like an emergency stop).
Let's delve deeper into some real-world applications where these concepts can be applied effectively:
With advancements in smart home technology, integrating push buttons into home automation systems has become increasingly popular:
1. Smart Lighting Control:
- Use push buttons connected to smart relays that control lighting fixtures throughout your home.
- Program these buttons via smart hubs like SmartThings or Home Assistant for versatile control options—turning lights on/off remotely or setting specific moods based on time of day.
2. Security Systems:
- Implementing panic buttons within easy reach can enhance security measures at home.
- These buttons can be wired directly into alarm systems or connected wirelessly via RF modules for immediate alerts during emergencies.
3. Automated Blinds:
- Integrate push buttons that control motorized blinds—allowing users to adjust natural lighting easily without needing smart assistants or apps.
4. Heating Control Systems:
- Use momentary switches as part of HVAC systems where pressing a button can activate heating/cooling functions manually without relying solely on programmable thermostats.
5. Garage Doors:
- Install remote-controlled garage door openers using simple wired connections from push buttons located inside vehicles or homes that communicate wirelessly with garage door motors.

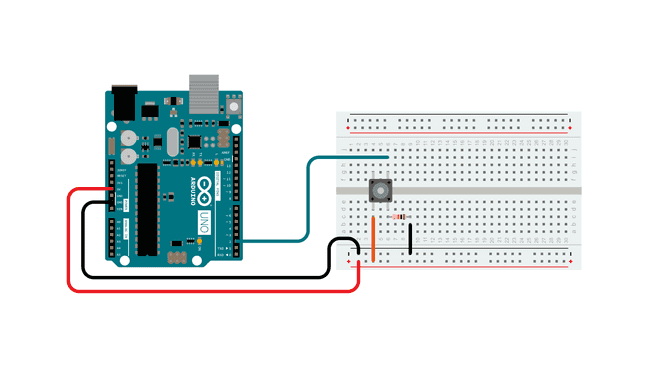

Exploring how microcontrollers like Arduino can work alongside Radio Shack push switches opens up endless possibilities:
1. DIY Game Controllers:
- Create custom game controllers using multiple push buttons wired into an Arduino board.
- Program each button press to correspond with specific actions within games—great for retro gaming setups!
2. Interactive Art Installations:
- Build art pieces that respond dynamically when users interact with them via buttons—lights could change color based on which button is pressed!
3. Robotics Projects:
- Utilize push buttons as inputs for controlling robotic movements—pressing different buttons could trigger various actions like moving forward/backward or turning left/right based on programmed logic within microcontrollers.
4. Sound Boards:
- Develop soundboards where each button plays different sound clips—ideal for creating unique audio experiences at events!
5. Environmental Monitoring Stations:
- Use buttons alongside sensors to toggle readings displayed on LCD screens—pressing buttons could cycle through temperature/humidity data collected by sensors over time!
When working with electrical components beyond basic circuits involving Radio Shack push switches:
1. Always ensure proper insulation around exposed wires—use heat shrink tubing where necessary—to prevent accidental short circuits leading potentially hazardous situations!
2. Consider using fuses within circuits designed for higher currents—this precaution protects against overloads damaging both components and causing fires!
3. Familiarize yourself with local electrical codes regarding installations involving mains voltage—this knowledge ensures compliance while keeping installations safe!
4. Regularly inspect connections over time—loose wires may lead increased resistance generating heat potentially causing failures over prolonged usage!
5. When working outdoors ensure all components used rated appropriately against weather elements—this step prolongs lifespan while maintaining functionality regardless environmental conditions faced!
Using a Radio Shack push switch is an excellent way to control electronic circuits in both simple and complex projects. By understanding how to wire these switches correctly and troubleshoot common issues, you can effectively incorporate them into your designs. Whether you're building a basic circuit or integrating with advanced microcontrollers, push switches provide versatility and ease of use across various applications—from DIY projects at home to more sophisticated automation systems in modern living environments.
In summary, mastering the use of Radio Shack push switches not only enhances your technical skills but also opens doors to creative solutions in electronics design and implementation. With proper knowledge and safety precautions, these small but mighty components can significantly impact your electronic projects' functionality and user experience.
Momentary switches only stay on while pressed, while latching switches remain on after being pressed until pressed again.
You can wire multiple switches in parallel or series depending on whether you want them to function independently or together.
Yes, but ensure that the switch is rated for the voltage and current you intend to use it with.
Check for debris or obstructions around the switch mechanism; if necessary, replace it if it's damaged.
Use a simple delay after detecting a button press in your code or implement more sophisticated debouncing algorithms based on timing checks.
