Wiring a micro switch can seem daunting, especially for those who are not well-versed in electrical work. However, with the right guidance and understanding of the components involved, anyone can successfully wire a micro switch. This article will provide a comprehensive step-by-step guide on how to wire a 110V micro switch, including diagrams and tips for ensuring safety and effectiveness.
Micro switches, also known as snap-action switches, are widely used in various applications due to their reliability and compact size. They operate by using a mechanical lever that activates the switch when pressed. Here are some key features of micro switches:
- Types: Micro switches come in several types, including SPDT (Single Pole Double Throw), SPST (Single Pole Single Throw), and DPDT (Double Pole Double Throw). The most common type for general use is SPDT.
- Terminals: A typical micro switch has three terminals:
- Common (COM): This terminal connects to the power source.
- Normally Open (NO): This terminal is open when the switch is not activated; it closes when the switch is pressed.
- Normally Closed (NC): This terminal is closed when the switch is not activated; it opens when the switch is pressed.
Before starting, gather the following tools and materials:
- Micro switch
- Insulated wire strippers
- Screwdriver
- Soldering iron (if applicable)
- Electrical tape or heat shrink tubing
- Multimeter (for testing)
- Wire connectors or terminal blocks
Before wiring, determine whether your micro switch is SPDT or SPST. This will dictate how you connect the wires. For this guide, we will focus on an SPDT micro switch.
Cut two pieces of insulated wire to your desired length. Use wire strippers to remove about half an inch of insulation from both ends of each wire.

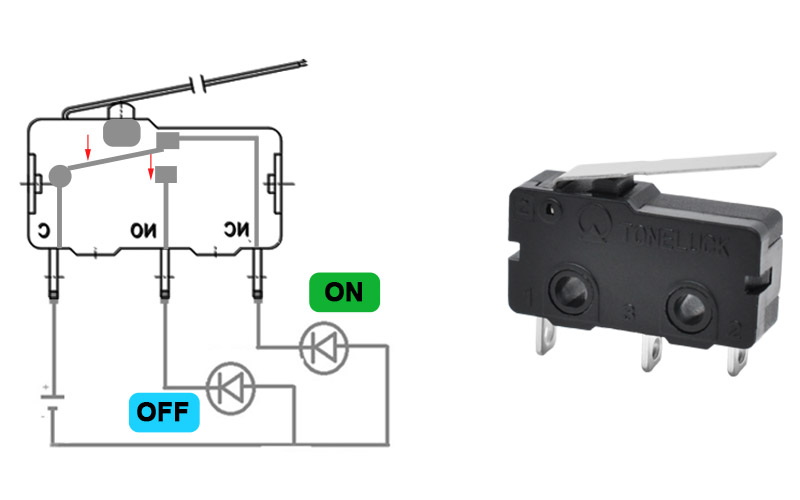

Examine your micro switch to identify the COM, NO, and NC terminals. Typically, the COM terminal is in the center, while NO and NC are on either side.

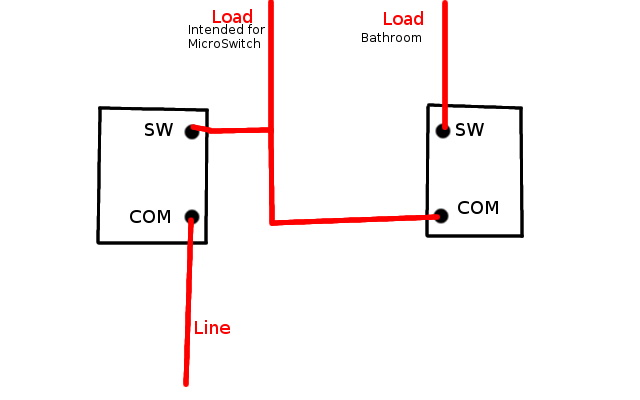

1. Connect Power: Attach one end of a wire to the COM terminal and connect the other end to your power source (e.g., a 110V outlet).
2. Connect Load: Connect another wire from either the NO or NC terminal to your load (e.g., a light fixture or motor). If you want the circuit to be closed when the switch is pressed, use NO; if you want it closed when not pressed, use NC.
If you are soldering:
- Heat the soldering iron and apply solder to secure each connection firmly.
If using connectors:
- Insert each stripped wire into its respective connector and crimp securely.
Use electrical tape or heat shrink tubing to cover any exposed wire connections. This prevents accidental shorts and protects against moisture.
Before applying power:
- Use a multimeter to check continuity between terminals.
Once everything is connected:
- Turn on your power supply and test the switch by pressing it. Ensure that it activates your load as expected.
Micro switches are versatile components used in various applications:
- Home Appliances: Used in microwaves, washing machines, refrigerators, and dishwashers where precise control is necessary.
- Automotive: Employed in car doors for interior lights, seatbelt reminders, ignition systems, and more.
- Industrial Equipment: Found in conveyor belts for safety interlocks and position sensing.
- Consumer Electronics: Utilized in devices like remote controls and gaming controllers for tactile feedback.
Using micro switches offers several advantages:
- Reliability: They have a long operational life due to their mechanical design, which can withstand millions of cycles.
- Compact Size: Their small footprint allows them to fit into tight spaces where larger switches cannot be accommodated.
- Versatile Operation: They can be configured for various applications depending on their wiring setup.
When wiring or using micro switches, you may encounter some common issues:
1. Switch Not Activating: Check if connections are secure and ensure that the mechanical lever is functioning correctly.
2. Intermittent Operation: This could be due to loose connections or wear on the internal mechanism. Inspect all connections and replace if necessary.
3. Load Not Receiving Power: Verify that power is reaching the COM terminal and that there are no breaks in your wiring.
4. Incorrect Operation: If pressing the switch does not yield expected results (e.g., NO remains open), revisit your wiring setup to ensure correct terminal connections.
When working with electricity, safety should always be your priority:
- Ensure that power is off before starting any wiring work.
- Use insulated tools to prevent electric shock.
- Double-check all connections before applying power.
- If you are unsure about any step or feel uncomfortable working with electrical components, consult with a professional electrician.
To ensure optimal performance and longevity of your micro switch installation:
- Use Quality Components: Invest in high-quality switches and wiring materials that meet safety standards.
- Follow Manufacturer Instructions: Always refer to specific instructions provided by manufacturers for wiring configurations and ratings.
- Regular Maintenance Checks: Periodically inspect your installations for wear or damage, especially in high-use applications.
Wiring a 110V micro switch is straightforward if you follow these steps carefully. Understanding how each terminal functions allows you to customize your setup for various applications effectively. Always prioritize safety during installation, and don't hesitate to consult with professionals if you're unsure about any steps. By adhering to best practices and troubleshooting common issues promptly, you can ensure reliable operation from your micro switch setup for years to come.
A micro switch is a small electromechanical device that opens or closes an electrical circuit when activated by a mechanical force.
Identify the COM (Common), NO (Normally Open), and NC (Normally Closed) terminals on your micro switch. Choose based on whether you want the circuit closed when pressed (NO) or open (NC).
Yes, but ensure that the micro switch is rated for high voltage applications like 110V or higher before use.
You will need insulated wire strippers, a screwdriver, soldering iron (if applicable), electrical tape or heat shrink tubing, and possibly a multimeter for testing.
Check all connections for security and ensure that power is properly supplied. Use a multimeter to test continuity across terminals.
