Wiring a micro switch is a straightforward process that can be accomplished with a little understanding of the switch's components and the correct wiring techniques. Micro switches, also known as snap-action switches, are widely used in various applications due to their reliability and quick response time. This article will provide a comprehensive guide on how to wire a micro switch, including diagrams, tips, and troubleshooting advice.
A micro switch is a small, highly reliable switch that operates with minimal physical force. It typically features an actuator lever that, when pressed, causes the internal mechanism to complete or break an electrical circuit. Micro switches are commonly used in appliances, machinery, and safety devices.
Understanding the components of a micro switch is essential for proper wiring:
- Common Terminal (COM): This terminal serves as the main connection point for the circuit.
- Normally Open (NO): This terminal is not connected in the default state but closes the circuit when the switch is activated.
- Normally Closed (NC): This terminal is connected in the default state and opens the circuit when the switch is activated.
Follow these steps to wire your micro switch correctly:
You will need:
- Micro switch
- Wires (preferably insulated)
- Wire strippers
- Soldering iron or crimping tool
- Heat-shrink tubing or electrical tape
Identify the terminals on your micro switch. Generally, you will find:
- Common (C)
- Normally Open (NO)
- Normally Closed (NC)
Refer to the manufacturer's datasheet if available.
Cut and strip the wires you will use for connections. Ensure that you leave sufficient length to reach from the power source to the switch and from the switch to the device.
For SPST:
- Connect one wire from the power source to the COM terminal.
- Connect another wire from the NO terminal to your device.
For SPDT:
- Connect one wire from the power source to the COM terminal.
- Connect one wire from the NO terminal to one device.

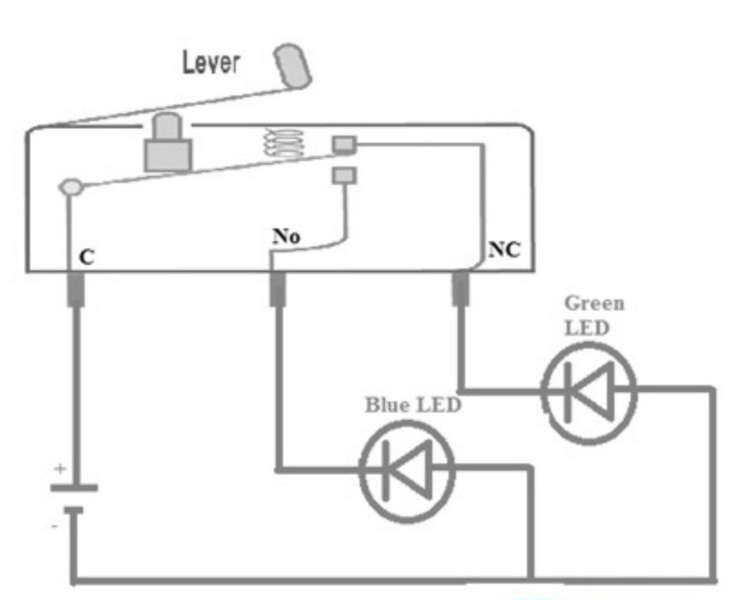

- Connect another wire from the NC terminal to another device.
For DPST/DPDT:
Follow similar steps as above but ensure each pole is connected correctly based on your application needs.
Once all connections are made, insulate them using heat-shrink tubing or electrical tape. This step is crucial for preventing short circuits and ensuring safety.
After completing the wiring, turn on your power source and test your micro switch by activating it. Ensure that it operates as intended—either completing or breaking the circuit based on its configuration.
Micro switches are utilized in various applications across different industries due to their versatility and reliability. Here are some common uses:
- Home Appliances: Micro switches are often found in household appliances like washing machines, ovens, and microwaves where they help control functions such as door locking mechanisms or user interface buttons.
- Industrial Equipment: In manufacturing settings, micro switches are used in conveyor systems and machinery safety interlocks where precise control is essential for operational safety.
- Automotive Applications: In vehicles, micro switches can be found in seat belt reminders, door locks, and light controls, enhancing safety features and user convenience.
- Consumer Electronics: Devices such as remote controls and gaming consoles utilize micro switches for tactile feedback during operation.
For those looking to expand their knowledge further or tackle more complex projects involving micro switches, consider these advanced techniques:
Understanding how to wire switches in series versus parallel configurations can greatly affect how devices operate:
- Series Wiring: When micro switches are wired in series, all switches must be activated for current to flow through. This setup is useful for safety mechanisms where multiple conditions must be met before an action occurs.
- Parallel Wiring: In parallel configurations, activating any single switch allows current to flow. This method is ideal for applications where redundancy is necessary; if one switch fails or is deactivated, others can still maintain operation.
In some applications, you may need to use multiple micro switches together:
- Multi-Switch Control Panels: These panels can control several devices simultaneously or allow for different functions depending on which combination of switches is activated.
- Safety Interlocks: In industrial settings, multiple micro switches can serve as interlocks that prevent machinery from operating unless all conditions are safe.
If your micro switch does not function as expected, consider these troubleshooting tips:
- Check Connections: Ensure all wires are securely connected to their respective terminals.
- Inspect for Damage: Look for any visible damage on the micro switch or wires.
- Test Voltage: Use a multimeter to check if voltage is reaching the micro switch when activated.
- Verify Configuration: Double-check that you have wired according to your intended application (NO vs. NC).
When working with electrical components like micro switches, safety should always be your top priority. Here are some essential precautions:
- Disconnect Power: Always ensure that power is disconnected before working on any electrical component to prevent shock or injury.
- Use Insulated Tools: Utilize tools with insulated handles when working with live circuits.
- Wear Protective Gear: Consider wearing safety goggles and gloves while soldering or handling wires.
- Work in a Dry Environment: Avoid working with electrical components in wet or humid conditions which can increase risks of short circuits or electric shock.
Wiring a micro switch can be accomplished with some basic knowledge of electronics and careful attention to detail. By following this guide, you can effectively wire various types of micro switches for different applications. Remember always to prioritize safety by ensuring all connections are secure and insulated properly. With practice and experience, you will become proficient at integrating micro switches into your projects efficiently.
Micro switches are commonly used in household appliances, machinery control systems, safety devices, and automotive applications due to their reliability.
The common terminal (COM) connects directly to your power source; choose between normally open (NO) or normally closed (NC) based on whether you want your device activated when the switch is pressed or released.
While you can use various types of wire, it's best to use insulated copper wire suitable for your current requirements to ensure safety and performance.
If your micro switch fails, check all connections first. If everything appears intact but it still doesn't work, consider replacing it as internal components may have worn out.
Soldering provides a strong and reliable connection; however, crimp connectors can also be used if soldering is not feasible. Just ensure all connections are secure regardless of method used.
