Wiring a slide switch is a fundamental skill in electronics that can be applied in various projects, from simple circuits to complex devices. This guide will provide you with detailed instructions on how to wire different types of slide switches, including SPST, SPDT, DPST, and DPDT configurations.
Slide switches are mechanical devices used to control electrical circuits by sliding a lever or button. They come in various configurations, each serving different purposes:
- SPST (Single Pole Single Throw): This is the simplest type of switch, allowing you to turn a circuit on or off.
- SPDT (Single Pole Double Throw): This switch can connect one input to one of two outputs.
- DPST (Double Pole Single Throw): Functions like two SPST switches combined, controlling two circuits simultaneously.
- DPDT (Double Pole Double Throw): Similar to two SPDT switches, allowing for more complex switching options.
Before you begin wiring your slide switch, gather the following tools and materials:
- Slide switch (SPST, SPDT, DPST, or DPDT)
- Wires (preferably 22 AWG)
- Soldering iron and solder (if necessary)
- Multimeter (for testing connections)
- Breadboard (for prototyping)
- Electrical tape or heat shrink tubing
- Wire stripper
- Needle-nose pliers
- Screwdriver (if your slide switch needs to be mounted)
SPST Wiring Steps:
1. Identify the Terminals: An SPST switch typically has two terminals. One terminal will connect to the power source, while the other connects to the device you want to control.
2. Connect the Power Source: Connect one terminal of the slide switch to the positive lead of your power source.
3. Connect the Device: Connect the other terminal to the device you want to control (like a light bulb or motor).
4. Testing: Once connected, toggle the switch to ensure that it turns the device on and off as expected.

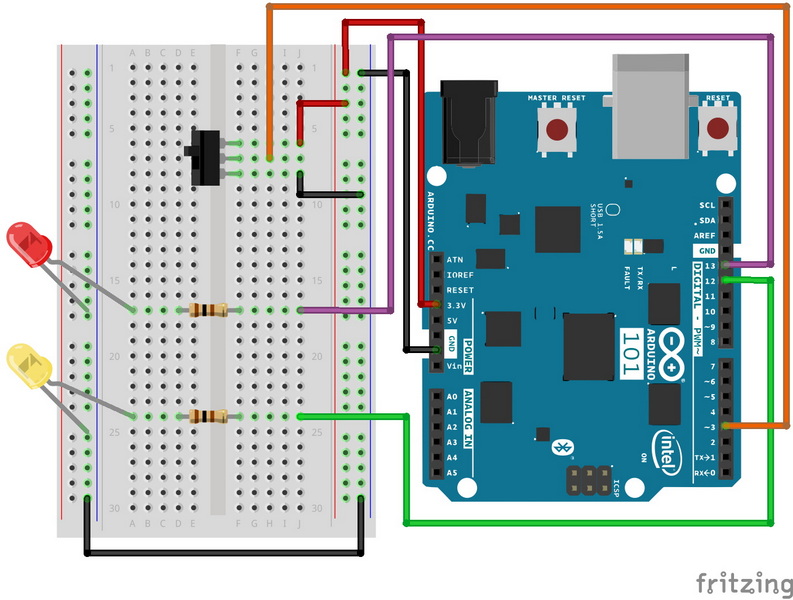

SPDT Wiring Steps:
1. Identify Terminals: An SPDT switch has three terminals—one common and two outputs.
2. Connect Common Terminal: Connect the common terminal (usually in the center) to your power source.
3. Connect Output Devices: Connect each of the outer terminals to different devices you want to control.
4. Testing: Toggle the switch between positions to test if it correctly routes power to either device.
DPST Wiring Steps:
1. Identify Terminals: A DPST switch has four terminals—two pairs for controlling two circuits.
2. Connect First Circuit: Connect one pair of terminals to your first circuit's power source and device.
3. Connect Second Circuit: Connect the second pair of terminals similarly for your second circuit.
4. Testing: Toggle the switch and ensure both circuits activate or deactivate simultaneously.
DPDT Wiring Steps:
1. Identify Terminals: A DPDT switch has six terminals—two sets of three for controlling two circuits with two outputs each.
2. Connect Power Sources: Connect each pair of middle terminals (common) to your power sources.
3. Connect Outputs: Attach each outer terminal pair to different devices or outputs as required.
4. Testing: Toggle through positions and verify that each output responds correctly based on the switch's position.
Slide switches are used in various applications including:
- Control panels
- Toys
- Home appliances
- Automotive applications
- DIY electronics projects
- Computer peripherals
- Communication hardware
- Smart home systems
A slide switch operates by sliding a lever from one side to another, which opens or closes an electrical circuit. The internal mechanism consists of metal contacts that either touch or separate depending on the position of the lever. This simple yet effective design allows users to control electrical devices with ease.
Proper mounting is crucial for ensuring stability and durability in applications where slide switches are used:
- Through-Hole Mounting: The traditional method where switches are fitted onto a circuit board and soldered into place.
- Surface Mounting: Involves mounting directly onto a circuit board surface; requires precision soldering.
- Panel Mounting: Attaches directly onto an enclosure or panel using screws or clips for easy accessibility.
Choosing the appropriate slide switch involves considering several factors:
1. Functionality Needs: Understand what you need from your slide switch—whether it's for simple on/off control or more complex operations like mode selection.
2. Electrical Specifications: Ensure that the voltage and current ratings match your application requirements.
3. Environmental Conditions: If used in harsh environments, consider switches with appropriate IP ratings for dust and moisture resistance.
4. Mounting Method Compatibility: Determine whether through-hole, surface mount, or panel mount is suitable for your design constraints.
5. User Interaction Requirements: Ensure that users can easily operate the switch and receive adequate tactile feedback during use.
Wiring a slide switch is a straightforward process once you understand its configuration and function. By following this guide, you should be able to wire SPST, SPDT, DPST, and DPDT switches effectively for your projects. Always ensure that connections are secure and test your circuits before finalizing your design.
An SPST switch is commonly used for simple on-off applications where only one circuit needs control.
The common terminal is usually located in the center position; you can verify this with a multimeter by checking continuity when toggling the switch.
Most slide switches are rated for low voltage applications; check specifications before using them in high voltage circuits.
Check all connections for continuity using a multimeter and ensure that all components are functioning properly.
Yes, alternatives include toggle switches, push-button switches, and rotary switches depending on your application needs.
