A slide switch is a mechanical device used to control the flow of electricity in a circuit. Its operation is straightforward: by sliding a lever or actuator from one position to another, it can either open or close an electrical circuit. This article will delve into the functionality, types, applications, and wiring of slide switches, providing a comprehensive understanding of their role in electronic circuits.
Slide switches are ubiquitous in electronic devices, from simple toys to complex industrial machinery. They are designed to provide a reliable means of controlling electrical circuits with minimal effort. The fundamental principle behind a slide switch is its ability to connect or disconnect electrical contacts by sliding the actuator.
When the actuator of a slide switch is moved, it alters the connection between terminals inside the switch:
- Closed Position: When the switch is in one position, the internal contacts connect, allowing current to flow through the circuit.
- Open Position: Sliding the switch to the opposite position breaks this connection, stopping the current flow.
This binary operation (on/off) makes slide switches particularly useful for basic circuit control.
Slide switches come in various configurations, each suited for different applications. The most common types include:
- Single Pole Single Throw (SPST): This is the simplest form of a slide switch, functioning as an on/off switch with two positions—on and off.
- Single Pole Double Throw (SPDT): This type allows for switching between two different circuits. It has three terminals: one common terminal and two others that can connect to the common depending on the switch's position.
- Double Pole Single Throw (DPST): This switch controls two independent circuits simultaneously but only in an on/off manner.
- Double Pole Double Throw (DPDT): The most versatile type, allowing for switching between two circuits while controlling two outputs.
Slide switches are widely used across various industries due to their reliability and ease of use. Common applications include:
- Consumer Electronics: Found in devices like remote controls, toys, and small gadgets to turn them on and off or select modes.
- Industrial Equipment: Used in machinery for mode selection or emergency stops.
- Automotive: Present in dashboard controls and other vehicle systems for various functionalities.
- Home Appliances: Commonly used in items like coffee makers, fans, and heaters for power control.
1. Consumer Electronics: Slide switches are prevalent in mobile phones for ringer controls and camera shutters. In laptops, they can disable wireless adapters or turn off touchpads. They are also used in televisions and radios as power switches or mode selectors[1][5].
2. Industrial Machinery: In industrial settings, slide switches are often found on control panels for machine tools and automation systems. Their durability makes them suitable for harsh environments where reliability is crucial[1][9].
3. Automotive Controls: In vehicles, slide switches control features such as power windows and mirrors. They are also used in dashboard lighting systems[1][9].
4. Medical Devices: Medical equipment utilizes slide switches to manage alarms and display functions. They play a critical role in devices that monitor vital signs[1].
5. Home Appliances: Commonly employed in kitchen appliances like blenders and microwaves, slide switches provide easy control over power settings[1][9].

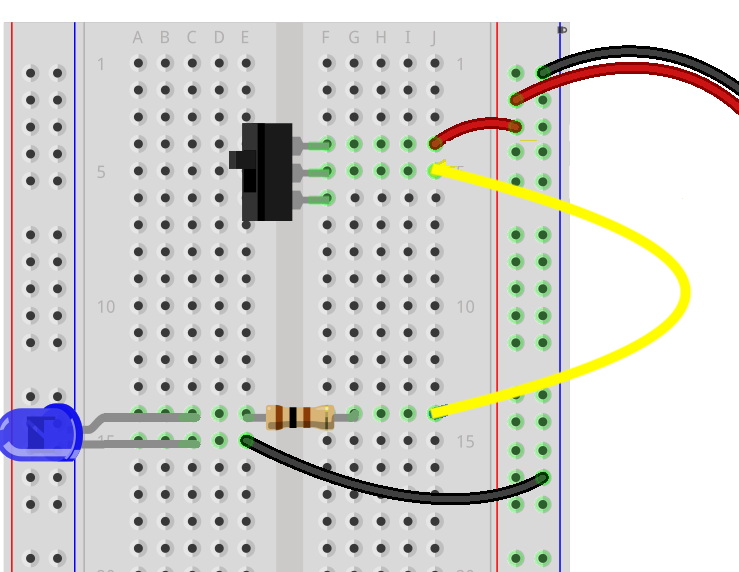

Wiring a slide switch is relatively simple. Below are general steps for connecting an SPST slide switch:
1. Identify Terminals: An SPST switch typically has two terminals.
2. Connect Power Supply: Connect one terminal to the positive side of your power source.
3. Connect Load: Connect the other terminal to your load (e.g., an LED).
4. Ground Connection: Ensure that your circuit has a proper ground connection.
The advantages of slide switches include:
- Simplicity: Their straightforward design makes them easy to operate.
- Durability: Built to withstand repeated use without significant wear.
- Compact Size: Ideal for applications with limited space.
- Cost-Effectiveness: Generally inexpensive compared to other types of switches.
1. User-Friendly Operation: The intuitive sliding mechanism allows users to easily turn devices on or off without confusion[3][7].
2. Visual Indicators: Some models come with visual indicators that show whether the switch is on or off, providing immediate feedback[3].
3. Manual Override Capability: In automated systems, slide switches allow users manual control when necessary[3].
4. Resistance to Accidental Activation: Unlike push-button switches, slide switches require deliberate action to change positions, reducing accidental activations[3].
5. Versatility Across Applications: From consumer electronics to industrial machinery, their adaptability makes them suitable for various environments[1][10].
Slide switches not only serve functional purposes but also exhibit variations in design tailored for specific applications:
- Miniature Slide Switches: These compact versions fit into tight spaces while maintaining functionality similar to larger models[10].
- Surface Mount Slide Switches: Designed for modern electronics manufacturing processes where space efficiency is paramount[10].
- Toggle Slide Switches: Combining features from both toggle and slide mechanisms allows for versatile applications[10].
When selecting a slide switch for your project or application, consider:
- Ensure that the size fits within your device's design constraints while meeting current rating requirements[11].
- Choose between single-pole or double-pole configurations based on how many circuits you need to manage simultaneously[11].
- Decide whether you need panel mount or PCB mount options based on installation requirements[11].
- If used in harsh environments, opt for sealed models that resist dust and moisture ingress[11].
- Select colors or designs that align with your product's overall look if aesthetics are important[11][12].
In summary, slide switches are essential components in electronic circuits that provide a simple yet effective means of controlling current flow. Their various types and configurations allow them to be used across multiple applications, making them versatile tools for engineers and hobbyists alike. Understanding how slide switches operate and their potential uses can significantly enhance your ability to design and implement effective electronic solutions.
A slide switch is a mechanical device that connects or disconnects electrical circuits by sliding its actuator from one position to another.
An SPST (Single Pole Single Throw) slide switch has two positions (on/off), while an SPDT (Single Pole Double Throw) can connect one input to one of two outputs.
Yes, certain types like DPDT (Double Pole Double Throw) can control two separate circuits simultaneously.
They are commonly found in consumer electronics, industrial equipment, automotive applications, and home appliances.
Connect one terminal to your power source and the other terminal to your load while ensuring proper grounding for your circuit.
