Slide switches are ubiquitous components in various electronic devices, serving a fundamental role in controlling the flow of electricity. Their simple design and functionality make them an essential part of many consumer and industrial applications. This article explores the workings, applications, advantages, and types of slide switches, providing a comprehensive overview of their significance in modern electronics.
A slide switch is a mechanical device that uses a sliding motion to open or close an electrical circuit. The switch typically features a small lever or slider that can be moved between different positions, allowing the user to control various functions of an electronic device.

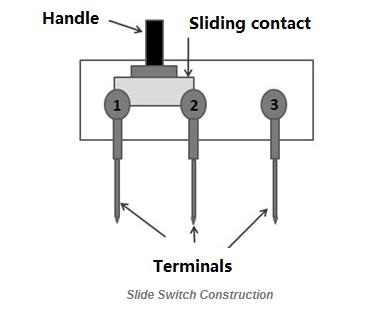

The operation of a slide switch is straightforward. It consists of:
- Slider: The movable part that the user interacts with.
- Contacts: Metal pieces that complete or break the circuit when the slider is moved.
- Terminals: Points where wires connect to the switch.
When the slider is moved, it either connects or disconnects the contacts, thereby controlling the flow of electricity. This simple mechanism allows for reliable operation in various environments.
Slide switches are used across a wide range of applications due to their versatility and ease of use. Some common applications include:
- Consumer Electronics: Found in remote controls, toys, and portable gadgets to turn devices on/off or switch modes.
- Industrial Equipment: Used in machinery for mode selection and emergency stops.
- Automotive Applications: Present in dashboard controls and other vehicle systems.
- Home Appliances: Commonly found in items like coffee makers, fans, and heaters.
- Medical Devices: Utilized for controlling functions in equipment such as monitors and diagnostic tools.
1. Flashlights:
Slide switches are often used to turn flashlights on and off. Their tactile feedback allows users to easily know whether the flashlight is on or off.
2. Remote Controls:
Many remote controls for electronic devices use these switches to control power or select different functions.
3. Toys:
They can be found in toys to control various features or turn the toy on and off, providing an interactive experience for children.
4. Consumer Electronics:
Devices like small radios, portable music players, and other consumer electronics may use them for power control and mode selection.
5. Electrical Equipment:
In industrial settings, slide switches control electrical circuits in machinery or equipment, ensuring safe operation during maintenance or emergencies.
Slide switches come in several configurations, each suited for specific applications. The main types include:
- SPST (Single Pole Single Throw): Controls one circuit with two positions (ON/OFF).
- SPDT (Single Pole Double Throw): Routes one input to one of two outputs.
- DPST (Double Pole Single Throw): Controls two circuits simultaneously with one switch.
- DPDT (Double Pole Double Throw): Allows control over two circuits with two outputs each.
Slide switches offer several advantages that make them popular in electronic design:
- Simplicity: Their straightforward operation makes them easy to use and install.
- Reliability: With fewer moving parts than other types of switches, slide switches tend to have a longer lifespan.
- Tactile Feedback: Users can easily feel when a slide switch has been activated, providing clear feedback on its status.
- Space Efficiency: Available in various sizes, slide switches can fit into compact designs without sacrificing functionality.
Another significant advantage is their durability. Slide switches are made from high-quality materials that can withstand wear and tear over time. This durability makes them suitable for devices subjected to frequent use. Additionally, they are cost-effective options compared to other types of switches due to their simple design and ease of manufacturing, making them ideal for mass production scenarios.
Wiring a slide switch might seem daunting at first, but it is relatively straightforward once you understand the configuration needed for each type:
- Connect the power source to one terminal.
- Connect the device you want to control to the other terminal.
- When the switch is in the "on" position, it completes the circuit; when "off," it breaks it.
- Connect the common terminal (usually in the center) to the power source.
- Connect the two outer terminals to devices you want to control.
- This configuration allows toggling between two different outputs.
- Connect one pair of terminals to the first circuit.
- Connect another pair to the second circuit.
- This type allows simultaneous control over two circuits with one action.
- Connect each pair of terminals to two circuits you want to control.
- This configuration allows toggling between two outputs for each circuit while maintaining complete control over both simultaneously.
One key feature is their versatility; they are available in various configurations allowing customization based on specific application requirements. Variations include:
- Actuator height (raised or flat)
- Size categories (subminiature, miniature, standard)
- Different mounting options (surface mount vs. through-hole)
These features ensure that designers can find a suitable slide switch for virtually any application while maintaining performance standards.
In conclusion, slide switches play a crucial role in controlling electrical circuits across numerous applications. Their simplicity, reliability, versatility, and cost-effectiveness make them an essential component in both consumer electronics and industrial machinery. Understanding their operation and applications can help designers and engineers select the appropriate type for their projects effectively.
Slide switches are commonly used in remote controls, toys, small appliances, and industrial equipment to turn devices on/off or select different modes.
Wiring a slide switch involves connecting terminals based on its type (SPST, SPDT, DPST, DPDT) according to specific wiring diagrams provided by manufacturers.
Slide switches provide tactile feedback, are more reliable due to fewer moving parts, and allow for clear visual indication of their status compared to push-button switches.
Yes, certain types of slide switches are designed to handle higher power loads and can be used safely in industrial applications with appropriate ratings.
Yes, slide switches come in various sizes including miniature, subminiature, and standard sizes to fit different design requirements.
