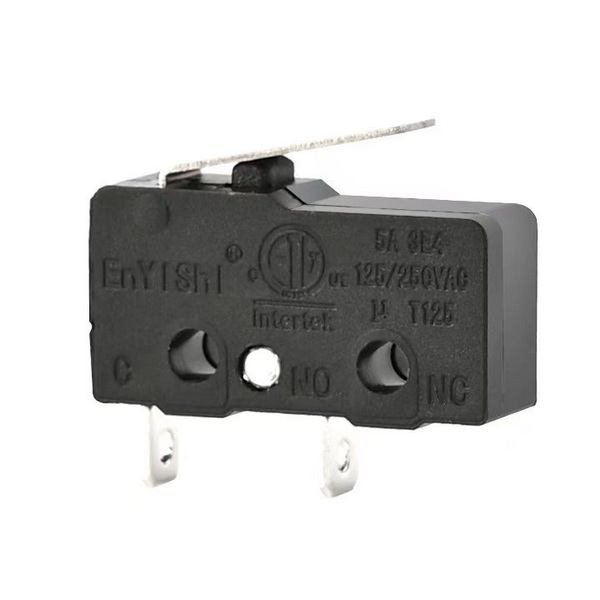

Micro switches, also known as snap-action switches, are widely used in various applications due to their reliability and precise operation. One of the critical specifications of a micro switch is its amp rating, which indicates the maximum current the switch can handle safely. Understanding amp ratings is essential for selecting the appropriate micro switch for specific applications, ensuring both functionality and safety.
Amp ratings on micro switches denote the maximum electrical current that can pass through the switch without causing damage or failure. These ratings are crucial for determining how much load a micro switch can handle in various electrical circuits.
- Typical Ratings: Most micro switches are designed to handle currents ranging from 0.1 A to 25 A, depending on their construction and intended use. Common amp ratings include 5 A, 10 A, and 15 A for standard applications, while some specialized switches can handle up to 25 A.
- Voltage Dependency: The amp rating of a micro switch is often dependent on the voltage at which it operates. For example, a switch rated at 10 A at 125 VAC may only be rated for 0.5 A at 250 VDC due to differences in how AC and DC currents behave when interrupted.
The amp rating directly influences how a micro switch performs in an electrical circuit:
- Inrush Current: When devices like motors are powered on, they can draw significantly higher currents than their normal operating current (known as inrush current). Micro switches must be rated to handle these surges without failing.
- Inductive vs. Resistive Loads: Micro switches have different ratings for resistive loads (like heaters) compared to inductive loads (like motors). Inductive loads typically require lower amp ratings because they can create back EMF (electromotive force), which can damage the switch.
When choosing a micro switch, consider the following factors:
- Application Requirements: Determine the type of load (resistive or inductive) and its maximum current draw.
- Environmental Conditions: Factors such as temperature and humidity can affect performance. Ensure the chosen switch is rated for the specific environmental conditions.
- Manufacturer Specifications: Always refer to the manufacturer's datasheet for precise amp ratings and other specifications relevant to your application.
Micro switches are utilized in a variety of applications due to their versatility:
- Home Appliances: Found in devices like washing machines, microwaves, and refrigerators where precise control is needed.
- Automotive Systems: Used in car doors, seatbelt sensors, and various control systems.
- Industrial Equipment: Employed in machinery for safety interlocks and limit switches.
- Consumer Electronics: Micro switches are often found in devices such as remote controls and gaming consoles where tactile feedback is necessary.
- Medical Devices: Used in equipment like infusion pumps and diagnostic machines where reliability is paramount.
Proper installation of micro switches is crucial for ensuring their longevity and performance. Here are some key points to consider during installation:
- Mounting Position: Ensure that the switch is mounted securely and in the correct orientation as specified by the manufacturer. Incorrect mounting can lead to premature wear or failure.
- Wiring Practices: Use appropriate wire sizes and types that match the amp rating of the micro switch. Poor wiring can lead to overheating or electrical shorts.
- Testing Before Use: After installation, conduct thorough testing under normal operating conditions to ensure that the micro switch functions correctly without any issues.
Despite their reliability, micro switches may encounter problems over time. Here are some common issues and troubleshooting tips:
- Switch Not Engaging: If a micro switch fails to engage, check for proper alignment with the actuator mechanism. Misalignment can prevent operation.
- Intermittent Operation: This may indicate wear or contamination within the switch. Cleaning or replacing the switch may be necessary.
- Overheating: If a micro switch becomes excessively hot during operation, it may be overloaded or improperly rated for the application. Reassess the load conditions and replace with a suitable rating if necessary.
As technology evolves, so does the design and functionality of micro switches. Some emerging trends include:
- Smart Micro Switches: Integration with IoT (Internet of Things) technology allows for remote monitoring and control of devices using micro switches, enhancing automation capabilities.
- Miniaturization: As devices become smaller, there is a growing demand for compact micro switches that maintain high performance while fitting into tight spaces.
- Enhanced Durability: Manufacturers are developing more robust materials that withstand harsher environments, increasing the lifespan of micro switches used in industrial applications.
Understanding the amp rating on a micro switch is crucial for ensuring proper functionality and safety in electrical applications. By considering factors such as load type, environmental conditions, installation practices, and manufacturer specifications, users can select the right micro switch for their needs. This knowledge not only enhances performance but also prolongs the lifespan of both the switch and connected devices. As technology continues to advance, staying informed about new developments will enable users to make better choices regarding micro switches in their applications.
The amp rating indicates the maximum current that can safely pass through the micro switch without causing damage.
Consider the type of load (resistive or inductive), its maximum current draw, and refer to manufacturer specifications for guidance.
While it is possible, you must ensure that the DC current does not exceed the specified rating for DC operations, as they differ from AC ratings.
Exceeding the amp rating can lead to overheating, arcing, or complete failure of the switch, posing safety risks.
Yes, there are various types including SPDT (Single Pole Double Throw), SPST (Single Pole Single Throw), and DPDT (Double Pole Double Throw), each suited for different applications.
