Micro switches, also known as snap-action switches or miniature switches, are essential components in many electronic devices and industrial applications. They are designed to operate rapidly with minimal physical force, providing reliable and precise switching action. This article explores the functions, applications, and operational principles of micro switches, along with their advantages and considerations for use.
A micro switch is a small electromechanical device that utilizes a mechanical action to open or close an electrical circuit. The key features of micro switches include:
- Snap-Action Mechanism: This allows the switch to change its state (from open to closed or vice versa) with a very small amount of movement, ensuring quick and reliable operation.
- Actuator Types: Micro switches can be equipped with various actuators, such as levers or rollers, which are activated by external forces.

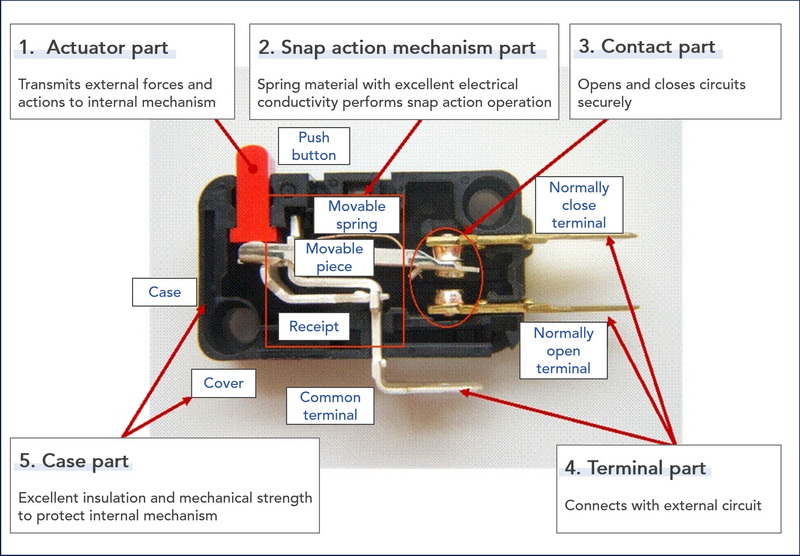

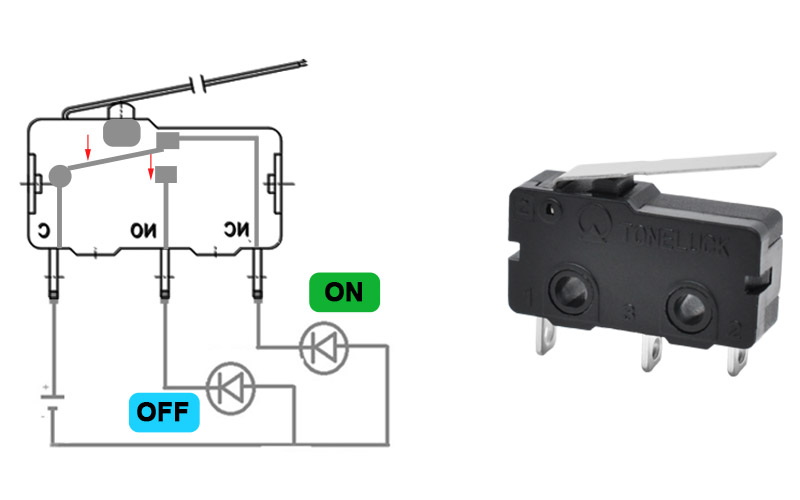

- Electrical Contacts: They typically have three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). The configuration of these contacts determines how the switch operates within a circuit.
Micro switches operate on the principle of mechanical action and electrical conductivity. When an external force is applied to the actuator, it moves or flexes, causing the internal contacts to either open or close. This action can be described in the following steps:
1. Actuation: The actuator is pressed or moved, initiating the switch's operation.
2. Contact Change: The movement causes the normally closed contact to open and the normally open contact to close.
3. Circuit Completion: When the contacts touch, an electrical circuit is completed, allowing current to flow through.
This mechanism ensures that micro switches can handle high-frequency switching applications without failure due to their reliable performance and long lifespan.
Micro switches serve several critical functions across various applications:
- On/Off Control: They act as simple on/off switches in devices like vending machines, microwaves, and safety interlocks in vehicles.
- Position Sensing: In industrial automation, micro switches detect the position of moving parts, ensuring that machinery operates safely and efficiently.
- Safety Mechanisms: Many devices use micro switches as safety features. For example, a car won't start unless the seatbelt is fastened or a microwave won't operate if the door is open.
- Limit Switches: They can function as limit switches to prevent machinery from moving beyond a certain point, protecting both the equipment and users from potential harm.
Micro switches are found in a wide range of applications due to their versatility:
- Home Appliances: Commonly used in devices such as washing machines, coffee makers, and refrigerators for safety and operational controls.
- Automotive Systems: Employed in car door locks, seatbelt sensors, and brake light switches for enhanced safety features.
- Industrial Automation: Integral to conveyor systems, robotic arms, and assembly lines where precise control is necessary.
- Consumer Electronics: Found in computer mice, remote controls, and various handheld devices for user interface interactions.
- Medical Equipment: Used in devices like ventilators and infusion pumps where precise control over operations is critical for patient safety.
- Gaming Devices: Incorporated into joysticks and other gaming peripherals to provide tactile feedback and control during gameplay.
Micro switches offer several benefits that make them ideal for various applications:
- Precision Switching: They provide accurate and repeatable switching actions with minimal actuation force.
- Durability: Designed for longevity, micro switches can endure millions of operations without significant wear.
- Compact Size: Their small form factor allows them to be integrated into tight spaces within devices.
- Quick Response Time: Micro switches react rapidly to applied forces, making them suitable for safety-critical applications.
- Low Power Consumption: Many micro switches consume very little power when idle, making them energy-efficient components in electronic designs.
While micro switches have many advantages, there are also considerations to keep in mind:
- Load Capacity: Most micro switches have limited current-carrying capacities; thus, they may not be suitable for high-power applications. Always check the specifications before use.
- Environmental Sensitivity: They can be affected by dust and moisture if not adequately protected; selecting models with appropriate ingress protection ratings is essential. For example, IP67-rated switches are well-suited for harsh environments.
- Mechanical Failure Potential: Although durable, mechanical components can wear out over time; regular maintenance may be required depending on usage conditions. It's important to monitor their performance regularly to avoid unexpected failures.
Micro switches come in various types tailored for specific applications:
- Basic Micro Switches: These are standard models used in general applications where simple on/off functionality is required.
- Sealed Micro Switches: Designed for use in environments exposed to moisture or dust; these models have protective casings that prevent contaminants from affecting their operation.
- Heavy-Duty Micro Switches: Built for high-load applications; these switches can handle larger currents while maintaining reliability over time.
- Subminiature Micro Switches: Smaller than standard models; ideal for compact devices where space is at a premium but still require reliable switching capabilities.
Proper installation of micro switches is crucial for optimal performance:
1. Mounting Orientation: Ensure that the switch is mounted correctly according to its design specifications. Some may require specific orientations for proper actuation.
2. Actuator Alignment: The actuator should align perfectly with whatever mechanism it interacts with to prevent misfires or failures during operation.
3. Wiring Connections: Use appropriate wire gauges based on the load requirements. Poor connections can lead to overheating or failure of the switch over time.
4. Testing After Installation: Always test the switch after installation to verify that it operates correctly under expected conditions before deploying it in critical systems.
As technology advances, so do micro switch designs:
- Smart Micro Switches: Integration with IoT technology allows micro switches to communicate with other devices wirelessly for enhanced control and monitoring capabilities.
- Enhanced Durability Materials: New materials are being developed that offer greater resistance to environmental factors like temperature extremes and corrosive substances.
- Miniaturization Trends: Ongoing efforts aim at reducing size without sacrificing performance—enabling more compact designs across various industries including consumer electronics and automotive sectors.
Micro switches play a vital role in modern electronics and industrial systems by providing reliable control and safety mechanisms. Their ability to operate with minimal force while ensuring precise switching makes them indispensable in various applications. Understanding their functionality helps engineers and designers select the right type for their specific needs while considering factors like load capacity and environmental conditions. As technology continues to evolve, micro switches will likely see further innovations that enhance their functionality and integration into smart systems.
A micro switch is a small electromechanical switch that operates rapidly with minimal force to make or break an electrical connection.
It works by using mechanical action from an actuator that opens or closes contacts within the switch when pressure is applied.
Common types include lever actuators and roller actuators, each suited for different applications based on movement requirements.
Consider factors such as electrical ratings (voltage/current), actuator types, environmental conditions (temperature/dust), and pole/throw counts when selecting a micro switch.
Most micro switches have limited load capacity; therefore, they may not be suitable for high-current environments without proper specifications.
