Micro switches, also known as miniature snap-action switches, are essential components in a wide variety of devices and systems. Their ability to operate with minimal force and provide reliable performance makes them indispensable in both consumer electronics and industrial applications. This article will explore the different types of micro switches, their applications, characteristics, how to select the right one for your needs, and additional insights into their functionality and design.

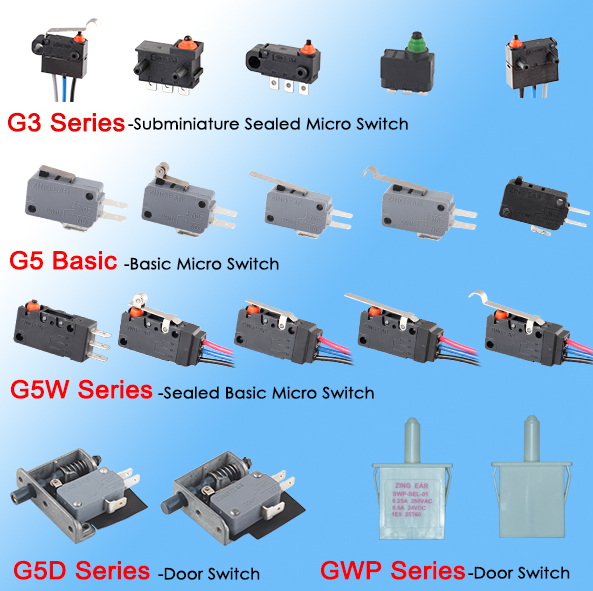

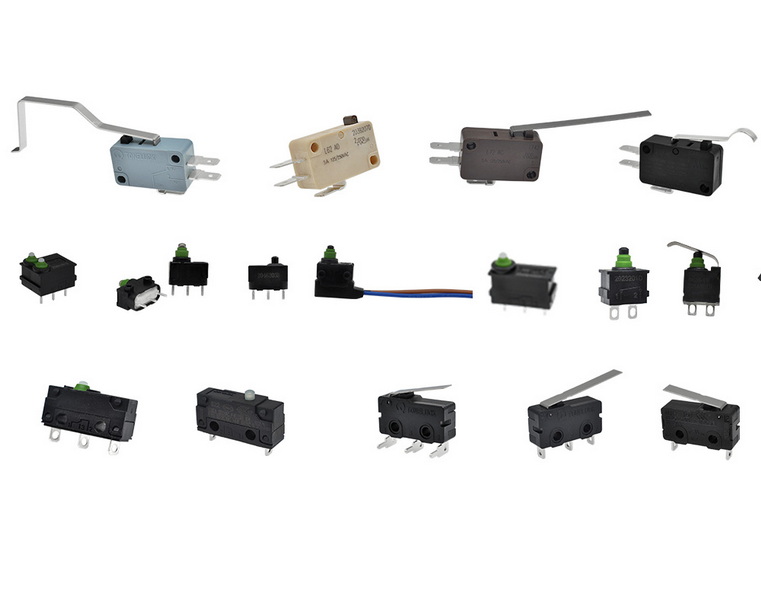

Micro switches come in several types, each designed for specific applications:
Standard micro switches are versatile and commonly used in household appliances, industrial equipment, and automotive systems. They offer a balance between size and robustness, making them suitable for various environments.
Key Characteristics:
- Actuation Mechanism: Typically features a lever or plunger that activates the switch.
- Electrical Ratings: Commonly rated for low voltage applications but can handle higher currents depending on the model.

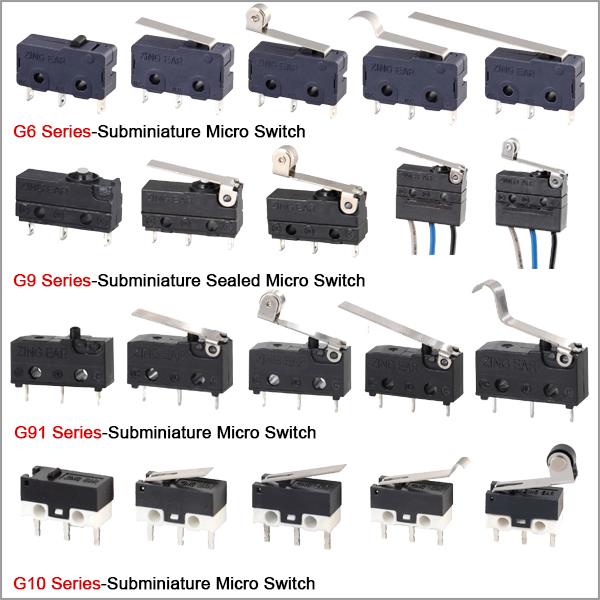

These are smaller than standard switches, ideal for applications with limited space such as small electronic devices and computer peripherals. Their compact design allows them to fit into tighter spaces while maintaining functionality.
Key Characteristics:
- Size: Significantly smaller footprint compared to standard micro switches.
- Applications: Often found in devices like keyboards, mice, and compact electronic gadgets.
Waterproof micro switches are designed to resist moisture and are often used in appliances that may come into contact with water. Their sealed construction ensures reliable operation in wet environments.
Key Characteristics:
- Sealing: Features gaskets or seals to prevent water ingress.
- Durability: Built to withstand corrosion from water exposure, making them ideal for outdoor or kitchen appliances.
These switches are built to withstand high temperatures, making them suitable for applications in extreme conditions such as ovens or industrial machinery where heat is a factor.
Key Characteristics:
- Temperature Ratings: Can operate effectively at temperatures exceeding 125°C (257°F).
- Materials: Constructed from heat-resistant materials to prevent failure under high heat conditions.
Heavy-duty micro switches are designed for demanding applications that require durability and long life. They can handle higher loads compared to standard micro switches.
Key Characteristics:
- Load Capacity: Rated for higher current and voltage applications.
- Construction: Reinforced housing and components to withstand mechanical stress.
Micro switches are utilized across various industries due to their reliability and precision. Some common applications include:
- Household Appliances: Used in devices like microwave ovens for door interlock systems, ensuring safety by preventing operation when the door is open.
- Industrial Control: Monitor positions of dampers, control fans, blowers, and other machinery components where precise actuation is necessary.
- Automotive Systems: Employed in safety and control systems within vehicles such as seatbelt reminders, door sensors, and ignition systems.
- Vending Machines and Arcade Buttons: For reliable operation of buttons that require immediate feedback when pressed.
- Medical Devices: Used in equipment where precise control is critical for patient safety, such as infusion pumps or diagnostic machines.
Applications of Micro Switches
Micro switches are known for their precise performance and reliability. Key features include:
- Minimal Force Requirement: They require very little force to operate, making them ideal for applications where accuracy is crucial.
- Snap-Action Mechanism: This allows for quick operation with a clear on/off response. The snap-action mechanism enables the switch to change state rapidly once the actuation point is reached.
- Durability: Many types are designed to withstand harsh conditions, ensuring long-term reliability. Heavy-duty models can endure millions of cycles without failure.
- Versatility: Available in various configurations including different actuator styles (e.g., roller levers, plungers) to suit specific application needs.
When selecting a micro switch, consider the following factors:
- Application Requirements: Identify the specific needs of your application such as size constraints, environmental conditions (e.g., moisture or temperature), and load capacity.
- Type of Actuation: Determine whether you need a lever, plunger, or other actuation types based on how the switch will be used. For instance:
- Lever actuators provide mechanical advantage.
- Plunger actuators offer direct push action.
- Electrical Ratings: Ensure the switch can handle the voltage and current it will be exposed to. Check specifications for maximum load ratings under different conditions.
- Environmental Conditions: Consider if the switch will be exposed to dust, moisture, or extreme temperatures that may affect its performance. Selecting a waterproof or high-temperature variant may be necessary based on these factors.
The design of micro switches involves careful engineering to ensure reliability and effectiveness:
Micro switches are constructed from various materials that enhance their durability:
- Housing Materials: Commonly made from plastic or metal; metal housings provide additional strength.
- Contact Materials: Often made from silver alloys or gold-plated contacts that reduce wear and improve conductivity.
While smaller micro switches may seem advantageous due to space-saving benefits, they must still meet performance criteria:
- Ensure that even subminiature models maintain adequate electrical ratings.
- Assess whether size constraints compromise functionality or reliability.
Micro switches should comply with industry standards for safety and performance:
- Look for certifications such as UL (Underwriters Laboratories) or CE (Conformité Européenne) which indicate compliance with safety regulations.
- Testing under various conditions ensures that the switch performs reliably across its intended lifespan.
Recent advancements have led to innovations in micro switch technology that enhance their capabilities:
Integration with smart technology allows micro switches to communicate with other devices:
- Enables remote monitoring and control through IoT (Internet of Things) applications.
- Provides real-time feedback on operational status which can be crucial for automated systems.
New designs focus on increasing sensitivity while reducing actuation force:
- This innovation allows for more delicate applications without compromising reliability.
- Useful in devices requiring precise control without user fatigue during operation.
Manufacturers are increasingly focusing on sustainability by using recyclable materials:
- Development of eco-friendly micro switches helps reduce environmental impact during production.
- These options cater to industries aiming for greener solutions without sacrificing quality or performance.
Micro switches play a vital role in many devices by providing reliable switching capabilities with minimal force. Understanding the different types available and their specific applications can help you choose the right micro switch for your needs. Whether it's for household appliances or industrial machinery, these small yet powerful components are integral to modern technology. With ongoing advancements in design and technology, micro switches continue to evolve, offering enhanced performance and functionality across various sectors.
A micro switch is a small, highly sensitive switch that requires minimal force to operate.
They are widely used in household appliances, industrial controls, automotive systems, vending machines, and arcade buttons.
They offer precise performance, reliability under various conditions, and require minimal force to actuate.
Consider application requirements such as size constraints, environmental factors (like moisture or temperature), actuation type needed (lever or plunger), and electrical ratings.
Yes, high-temperature micro switches are specifically designed for such conditions.
