A 3-pin slide switch is a versatile component commonly used in electronic circuits to control the flow of electricity. This article will guide you through the process of connecting a 3-pin slide switch, explaining its operation, providing wiring diagrams, and offering practical examples.

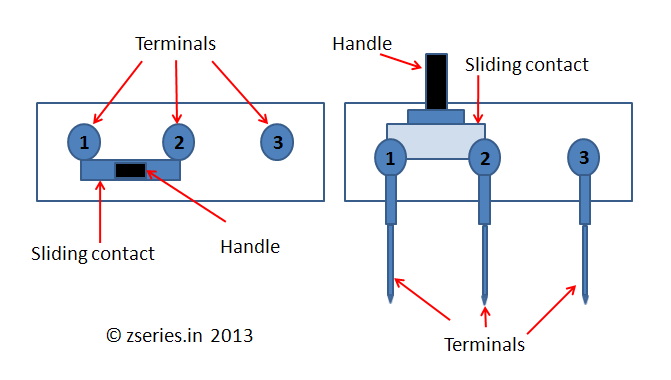

A 3-pin slide switch typically operates as a Single Pole Double Throw (SPDT) switch. This means that it can connect one common pin to one of two other pins, allowing for two different circuit paths. The center pin serves as the common connection, while the outer pins provide the alternate connections.
- Position 1: The center pin connects to the first outer pin.
- Position 2: The center pin connects to the second outer pin.
This functionality allows you to control devices or change circuit paths with a simple slide action.
To connect a 3-pin slide switch, you will need:
- A 3-pin slide switch
- A breadboard (optional)
- Connecting wires
- An LED (for demonstration)
- A resistor (typically 220Ω)
- A power source (like a battery or Arduino)

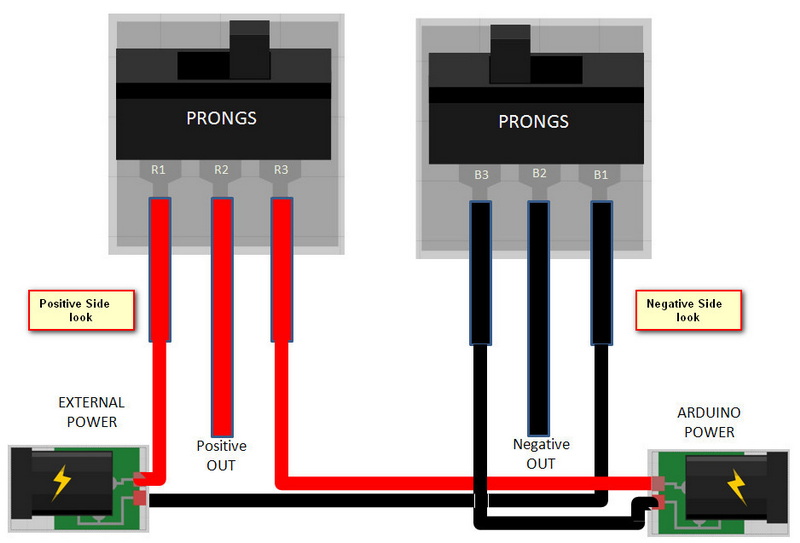

Here is a step-by-step guide to wiring a 3-pin slide switch:
Identify the three pins on your slide switch:
1. Center Pin: This is the common pin.
2. Outer Pin 1: This connects to one device or circuit.
3. Outer Pin 2: This connects to another device or circuit.

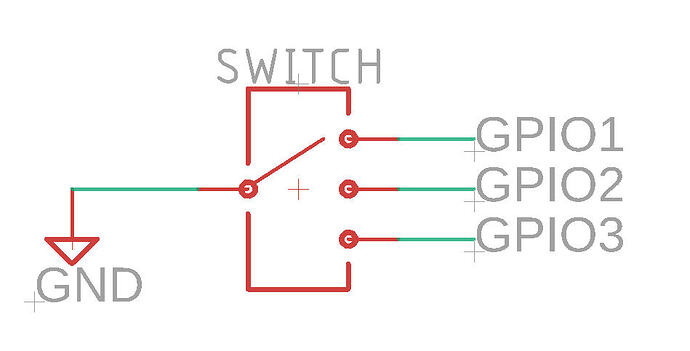

- Connect the center pin to a digital input on your microcontroller (e.g., Arduino).
- Connect one of the outer pins to ground.
- Connect the other outer pin to your power source (e.g., VCC).
3-pin slide switches are widely used in various applications:
- Toys: To control lights and sounds.
- DIY Electronics Projects: For switching between modes.
- Musical Instruments: To change pickup configurations in guitars.
- Home Automation: For controlling lights and devices remotely.
One practical example of using a 3-pin slide switch is in controlling multiple LEDs. You can set up two LEDs that light up based on the position of the slide switch.
1. Connect two LEDs to separate outer pins of the slide switch.
2. Use resistors for current limiting.
3. Program your microcontroller to read which LED should be turned on based on the position of the switch.
This setup can be useful in projects where you want to indicate different statuses or modes with different colored LEDs.
Slide switches come in various types beyond just SPDT. Understanding these types can help you choose the right one for your project:
- SPST (Single Pole Single Throw): Simple on/off control with two terminals.
- DPST (Double Pole Single Throw): Controls two circuits simultaneously with an on/off function.
- DPDT (Double Pole Double Throw): Similar to SPDT but controls two circuits with two outputs.
Each type has its own wiring configuration and application scenarios.
When working with slide switches, you may encounter some common issues:
- Switch Not Responding: Ensure that all connections are secure and that you are using appropriate pull-up or pull-down resistors if needed.
- LED Not Lighting Up: Check if the LED is connected correctly and that it is functioning. Also, verify that your code is correctly reading from the input pin.
- Intermittent Connections: If your circuit behaves erratically, check for loose wires or faulty components.
Connecting a 3-pin slide switch is straightforward and provides flexibility in controlling electronic circuits. Whether you're using it for simple projects or more complex applications, understanding its operation and wiring will enhance your electronics skills. The versatility of this component makes it an essential tool for hobbyists and professionals alike.
A 3-pin slide switch is used to connect or disconnect circuits and can route signals between different paths.
The center pin is typically the common connection, while the outer pins connect to devices or circuits. You can test connections using a multimeter.
While many slide switches are rated for low voltages, ensure that your specific model can handle higher voltages before use.
Connecting it incorrectly may cause malfunctioning in your circuit or damage components. Always double-check your wiring before powering up.
Yes, there are various types such as SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), DPST (Double Pole Single Throw), and DPDT (Double Pole Double Throw).
