Wiring a micro switch can seem daunting, especially for those who are new to electronics. However, with the right guidance and understanding of the components involved, it can be a straightforward process. This article will provide a comprehensive overview of how to wire a micro switch, including necessary tools, step-by-step instructions, and best practices to ensure safe and effective connections.
A micro switch is a compact and reliable electrical switch that is activated by minimal physical force. It is commonly used in various applications, including household appliances and industrial machinery, due to its durability and quick response time. The switch operates using a small actuator lever that completes or breaks an electrical circuit when pressed.
Micro switches come in several types, each with different configurations:
- Single-Pole Single-Throw (SPST): This type has two terminals (COM and NO). It completes the circuit when activated.
- Single-Pole Double-Throw (SPDT): This configuration includes three terminals (COM, NO, NC) and allows switching between two circuits.
- Double-Pole Double-Throw (DPDT): With six terminals (two COMs and four switched), this type can control two separate circuits simultaneously.
Understanding these types is crucial for selecting the appropriate switch for your project.
Before starting the wiring process, gather the following tools and materials:
- Micro Switch: Select one based on your application's current and voltage requirements.
- Wire Strippers: For cleanly stripping wire insulation.
- Screwdrivers: A set of different sizes for adjusting screws on the switch.
- Multimeter: To test connections after installation.
- Needle Nose Pliers: Useful for manipulating small components.
- Voltage Tester: To ensure no voltage is present before starting work.
- Electrical Tape or Heat Shrink Tubing: For insulating exposed wires or terminals.
Begin by examining your micro switch to identify its terminals:
- COM (Common): The main terminal that connects to either NO or NC based on the switch's state.
- NO (Normally Open): This terminal creates a closed circuit when the switch is activated.
- NC (Normally Closed): This terminal allows current to flow when the switch is not activated.
Cut and strip the wires you will use for connections. Ensure you leave enough length to reach from your power source to the micro switch and any devices it controls.

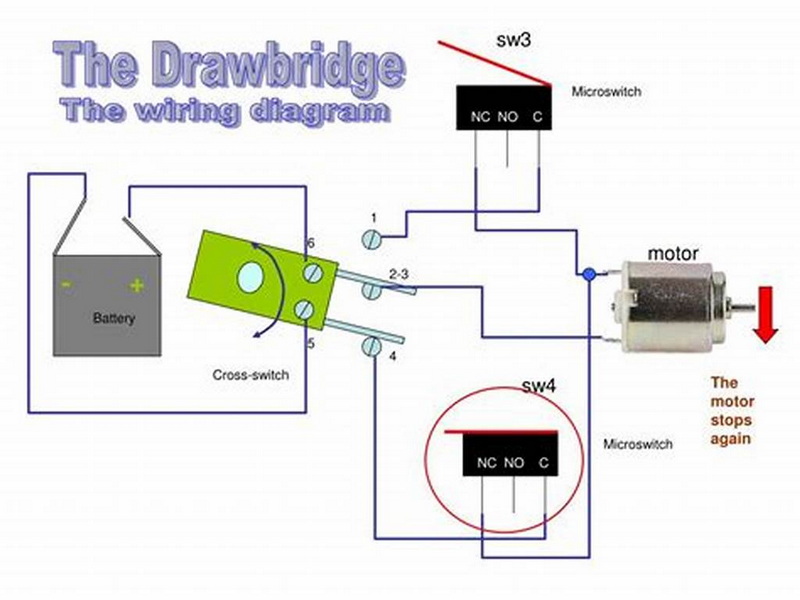

1. For SPST Wiring:
- Connect one wire from your power source to the COM terminal.
- Connect another wire from the NO terminal to the device you wish to control.
2. For SPDT Wiring:
- Connect one wire from your power source to the COM terminal.
- Connect a second wire from the NO terminal to one device.
- Connect another wire from the NC terminal to a different device.
3. For DPDT Wiring:
- The connections will be similar but require careful attention to ensure that both circuits are correctly wired according to your application needs.
To ensure a stable connection:
- If using soldering, heat your soldering iron and apply solder to each connection point until it flows smoothly around the wire.
- If using connectors, slide them onto the stripped ends of your wires and crimp them securely using pliers.
Once all connections are made, use electrical tape or heat shrink tubing to cover exposed wires. This prevents accidental shorts and protects against moisture and debris.
After completing your wiring:
1. Use a multimeter to check for continuity across connections.
2. Activate the micro switch by pressing its actuator.
3. Ensure that current flows through as expected when activated and stops when released.
To enhance reliability and performance:
- Use Quality Materials: High-quality wires, connectors, and insulation materials will lead to longer-lasting connections.
- Follow Manufacturer Guidelines: Always refer to specific wiring instructions provided by manufacturers for optimal performance.
- Avoid Excessive Force: When connecting wires, apply only enough pressure to secure them without damaging components.
Micro switches are widely used in various applications such as:
- Safety interlocks in machinery
- Limit switches in automation systems
- Control switches in appliances like microwaves
- Door switches in security systems
Wiring a micro switch is an essential skill for anyone working with electronics. By understanding the types of switches available, preparing adequately, following systematic steps for wiring, and adhering to best practices, you can ensure successful installation and operation of your micro switches.
With this guide, you should feel confident tackling your next wiring project involving micro switches!
Wiring a micro switch incorrectly can lead to malfunctioning devices or even damage. Always double-check connections before powering up.
It's best to use wires that match the current rating of your application. Thicker wires can handle more current but may be less flexible.
You can test functionality with a multimeter or by observing whether connected devices respond when activating the switch.
Soldering provides strong connections but is not always necessary; crimp connectors or screw terminals can also work effectively depending on your application.
Yes, but make sure they are rated for outdoor use or properly protected from moisture and debris.
