The BMW Z3 is a popular sports car known for its sleek design and impressive performance. However, like any vehicle, it may encounter issues over time. One common problem that Z3 owners face is a malfunctioning micro switch for the convertible top. This small but crucial component plays a vital role in the proper operation of the roof mechanism. In this comprehensive guide, we'll walk you through the process of replacing the micro switch on your BMW Z3, ensuring that your convertible top functions smoothly once again.

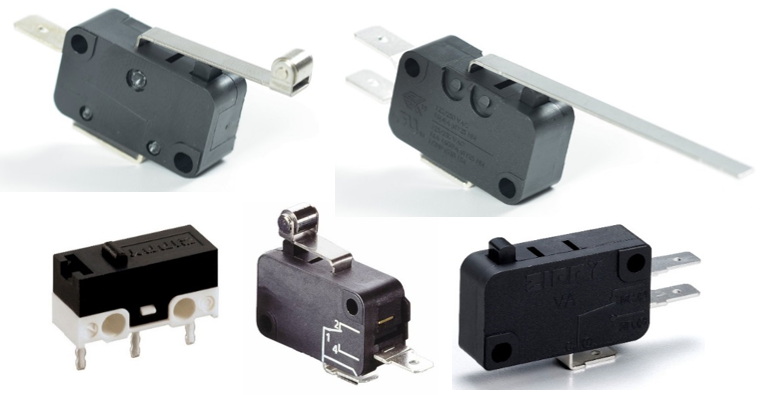

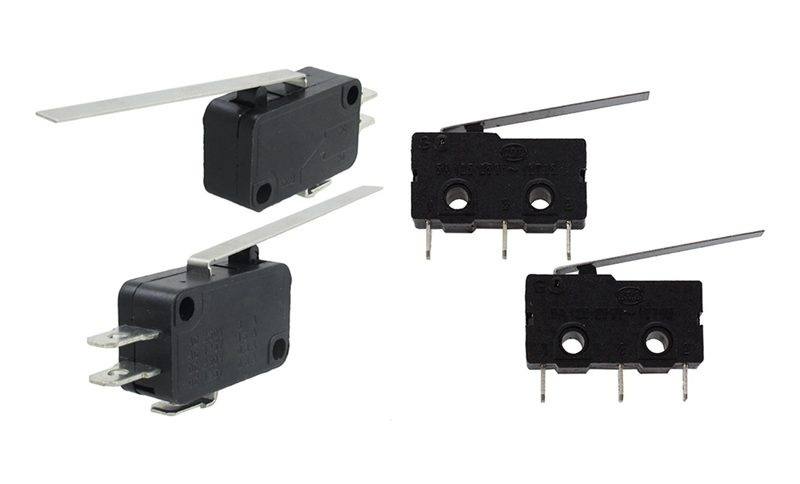

Before diving into the replacement process, it's essential to understand what the micro switch does and why it's important. The micro switch is a small electrical component located in the middle of the roof, just above the passenger window. Its primary function is to detect when the convertible top is fully closed, allowing the electrical system to operate the roof mechanism safely.
When the micro switch fails, it can cause various issues, such as:
- The convertible top not opening or closing properly
- Intermittent operation of the roof mechanism
- Warning lights on the dashboard related to the convertible top
To replace the micro switch on your BMW Z3, you'll need the following tools and materials:
- New micro switch (available from auto parts stores or online retailers)
- T25 Torx screwdriver
- Wire cutters and strippers
- Soldering iron and solder
- Heat shrink tubing
- Electrical tape
- Small flathead screwdriver
- Multimeter (optional, for testing)

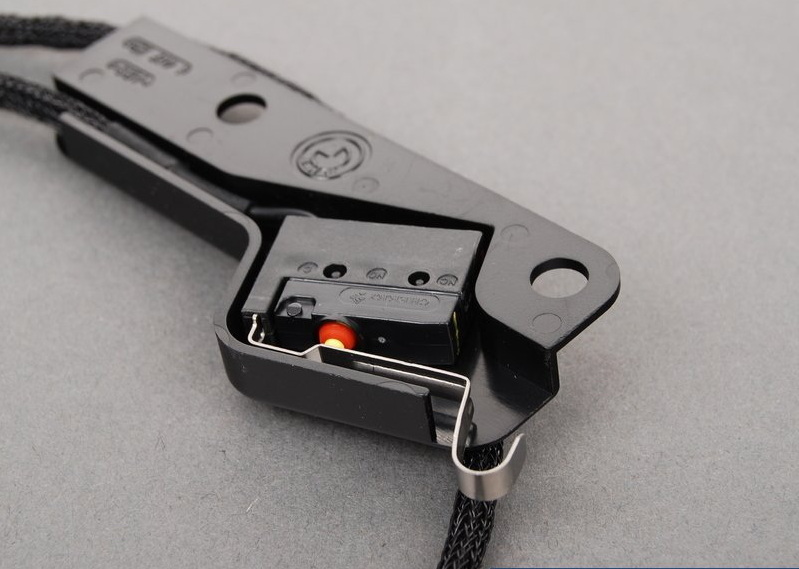

To begin, you'll need to access the micro switch housing:
1. Partially open the convertible top to expose the switch housing.
2. Locate the casing that houses the micro switch in the middle of the roof, just above the passenger window.
3. Using a T25 Torx screwdriver, remove the screws securing the housing.
4. Carefully detach the housing to reveal the micro switch inside.
Once you've accessed the micro switch:
1. Disconnect the wires leading to the switch, taking note of their positions.
2. Remove the old micro switch from the housing.
3. Compare the old switch with the new one to ensure compatibility.

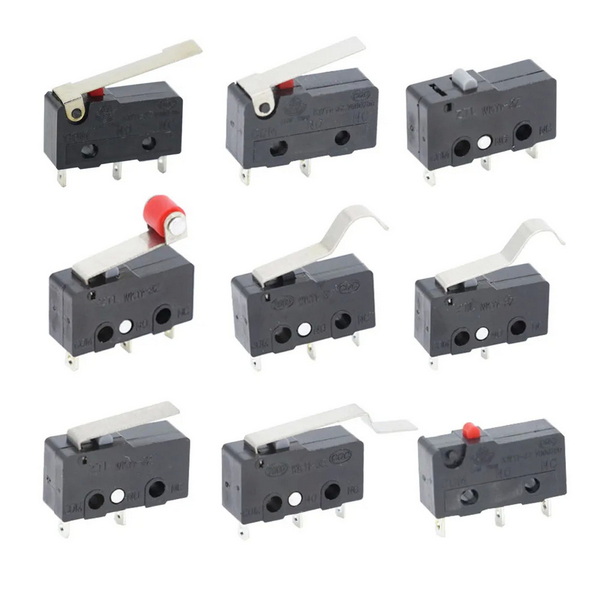

In some cases, the new micro switch may require slight modifications to fit properly:
1. If the lever on the new switch is shorter, you may need to transfer the lever from the old switch.
2. Carefully remove the lever from the old switch using a small flathead screwdriver.
3. Attach the old lever to the new switch using a strong adhesive, ensuring it's securely fastened.
To ensure a proper connection:
1. Extend the wires if necessary by soldering on small lengths of wire.
2. Use heat shrink tubing to insulate any soldered connections.
3. Attach small spade terminals to the ends of the wires if required by the new switch.
With the wiring prepared, it's time to install the new switch:
1. Place the new micro switch into the housing.
2. Connect the wires to the appropriate terminals on the switch.
3. Ensure the switch is seated correctly and the lever moves freely.
Before reassembling everything, it's crucial to test the new switch:
1. Temporarily reconnect the housing to the car's electrical system.
2. Test the convertible top operation, ensuring it opens and closes smoothly.
3. Verify that the switch activates when the roof is fully closed.
If everything works correctly, proceed to the final step. If not, double-check your connections and switch positioning.
Once you've confirmed the new switch is working properly:
1. Carefully reposition the housing and secure it with the Torx screws.
2. Close the convertible top and observe the lever's interaction with the roof.
3. Make any necessary adjustments to ensure the lever contacts the roof correctly when closed.
- Take photos or make diagrams of the wiring connections before disconnecting anything.
- Work in a well-lit area to avoid losing small parts.
- Be patient and gentle when handling the delicate components of the switch and housing.
- If you're unsure about any step, consult a professional mechanic or BMW specialist.
To avoid future issues with your BMW Z3's convertible top mechanism:
- Regularly clean and lubricate the roof mechanism.
- Inspect the micro switch and surrounding area for signs of wear or damage.
- Address any unusual noises or operation issues promptly.
Replacing the micro switch on a BMW Z3 convertible top can be a rewarding DIY project that saves you money and restores the proper functionality of your vehicle's roof mechanism. By following this guide and taking your time with each step, you can successfully replace the micro switch and enjoy trouble-free operation of your convertible top for years to come.
Remember that while this guide provides detailed instructions, it's essential to proceed with caution and seek professional help if you encounter any difficulties or are unsure about any aspect of the replacement process. With the right tools, patience, and attention to detail, you can keep your BMW Z3 in top condition and continue to enjoy the thrill of open-top driving.
Common signs of a faulty micro switch include:
- Intermittent operation of the convertible top
- The top not opening or closing completely
- Warning lights on the dashboard related to the roof mechanism
- Unusual noises when operating the convertible top
If you experience any of these symptoms, it's worth inspecting and potentially replacing the micro switch.
Yes, you can replace the micro switch without removing the entire convertible top. The switch is accessible by partially opening the roof and removing the housing located above the passenger window. This makes it a relatively straightforward DIY project for most car enthusiasts.
For an experienced DIYer, the replacement process can take about 1-2 hours. However, if you're new to car repairs or encounter any complications, it might take longer. It's best to set aside a full afternoon for the project to ensure you have ample time to work carefully and methodically.
While replacing the micro switch is generally safe, there are some risks to consider:
- Electrical shock if proper precautions aren't taken
- Damage to surrounding components if not handled carefully
- Improper installation leading to convertible top malfunctions
If you're not confident in your ability to perform the replacement, it's best to consult a professional mechanic.
Replacing the micro switch yourself can result in significant savings. While the cost of a new switch is typically between $20-$50, professional replacement services can charge anywhere from $200-$500 for parts and labor. By doing it yourself, you could potentially save several hundred dollars.
