Soldering micro switches is an essential skill for hobbyists and professionals alike in the field of electronics. Whether you're repairing a device, building a custom project, or simply learning about electronics, knowing how to properly solder a micro switch can make a significant difference in the quality and longevity of your work. This guide will cover everything you need to know about soldering micro switches, including tools required, step-by-step instructions, troubleshooting tips, and safety precautions.

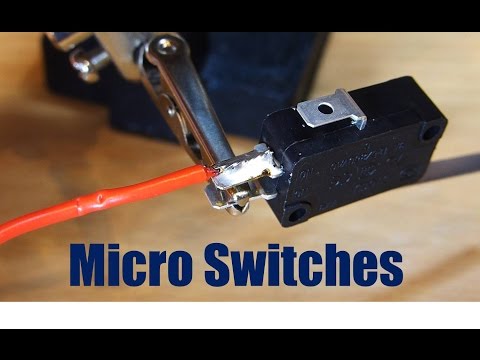

Micro switches are small electromechanical devices that operate based on the physical actuation of a lever or button. They are widely used in various applications due to their reliability and quick response time. Common uses include:
- Home Appliances: Such as washing machines, microwaves, and refrigerators.
- Automotive Applications: For safety features like seatbelt reminders and door sensors.
- Industrial Equipment: In control panels and machinery.
Understanding how micro switches work will help you appreciate their importance in electronic devices. Micro switches typically have three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). The common terminal connects to either the NO or NC terminal, depending on the desired operation mode.
Before you begin soldering, it is crucial to gather all necessary tools and materials. Here's what you will need:
- Soldering Iron: A temperature-controlled soldering iron is best for precision work. Look for one with a fine tip for detailed work on small components.
- Solder Wire: Lead-free solder is recommended for safety and environmental reasons. A diameter of 0.6 mm to 0.8 mm is ideal for most micro switch applications.
- Micro Switches: Ensure you have the correct type of micro switch for your application. They come in various sizes and configurations, so choose one that fits your project needs.
- Helping Hands or Clamps: These tools hold components in place while you work, providing stability and allowing you to use both hands for soldering.
- Tweezers: Useful for positioning small components accurately without risking damage from fingers.
- Solder Pump or Wick: To remove excess solder if needed. A solder wick can also help absorb solder from cold joints.
- Flux: Improves solder flow and connection quality. It's especially useful when working with older components that may have oxidation.
- Safety Gear: Safety glasses and a fume extractor to protect against harmful fumes generated during soldering.
Preparation is key to successful soldering. Follow these steps before getting started:
1. Clean Your Workspace: A tidy area will help prevent losing small components and make the process smoother. Use an anti-static mat if available to protect sensitive electronic components.
2. Set Up Your Tools: Arrange your tools within easy reach to avoid interruptions during soldering. Have your solder wire ready to go alongside your flux and any other materials you'll need.
3. Practice on Scrap Material: If you're new to soldering, practice on old circuit boards or components to build confidence. This will help you get a feel for the soldering iron and how much heat to apply.
Now that you're prepared, follow these detailed steps to solder a micro switch:
Micro switches typically have three terminals: Common (C), Normally Open (NO), and Normally Closed (NC). Familiarize yourself with these terminals before proceeding. The configuration will depend on how you want the switch to function in your circuit.

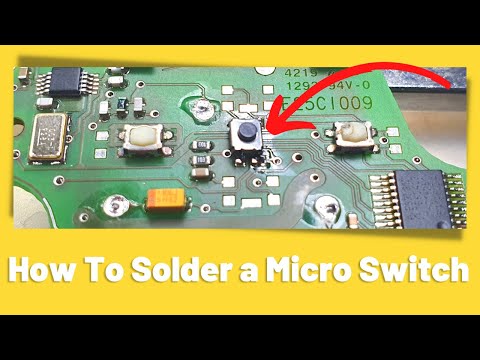

Place the micro switch into its designated spot on the PCB (Printed Circuit Board). Ensure it sits flush against the board for a stable connection. If necessary, use helping hands or clamps to hold it in place while you work.
Plug in your soldering iron and set it to a temperature between 340°C to 375°C (650°F to 700°F). Allow it to heat up fully before proceeding with soldering; this ensures that the solder melts quickly upon contact.
Apply a small amount of flux to each terminal of the micro switch. This will enhance heat transfer and ensure a solid connection when soldering. Flux helps prevent oxidation on metal surfaces, which can interfere with proper solder adhesion.

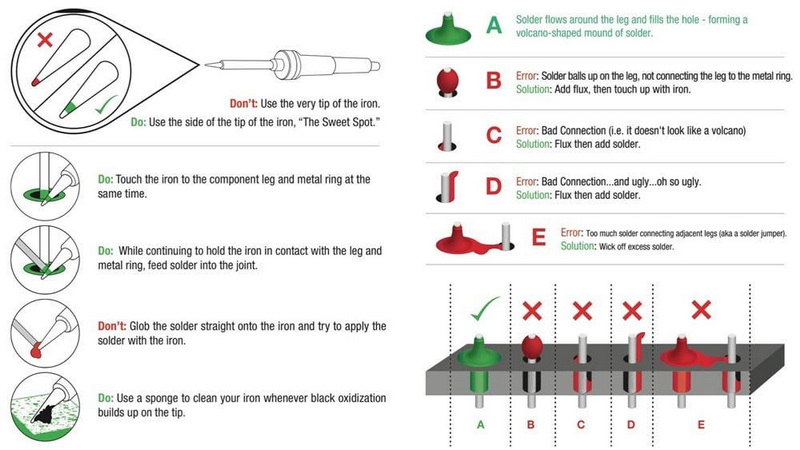

1. Touch the tip of the soldering iron to one terminal of the micro switch.
2. Feed solder wire into the joint simultaneously; the solder should melt and flow around the terminal.
3. Remove the iron after a second or two, allowing it to cool briefly before moving on to the next terminal.
4. Repeat this process for all terminals until they are securely soldered.
5. Make sure not to move the micro switch while the solder is cooling; doing so may create cold joints that can lead to malfunction later on.
After soldering all terminals, visually inspect each joint for quality. A good joint should be shiny without excess solder or gaps. If any joints appear dull or grainy, they may be cold joints that need reworking.
Even experienced solderers can encounter issues during the process. Here are some common problems and their solutions:
- Cold Solder Joint: If a joint appears dull or grainy, it may not be properly connected. Reheat it with the iron and add more solder if necessary; ensure both surfaces are adequately heated before applying more solder.
- Excess Solder: If there's too much solder, use a solder wick or pump to carefully remove it without damaging other components. Heat the excess with your iron while placing the wick over it; this will allow it to soak up excess material effectively.
- Lifted Pads: If a pad lifts away from the PCB during desoldering, repair it by connecting it directly to an adjacent trace with a jumper wire. Use thin wire for this purpose; ensure it's securely attached at both ends.
Soldering involves heat and potentially harmful fumes; therefore, following safety precautions is essential:
- Work in a well-ventilated area to avoid inhaling fumes from melting solder.
- Always wear safety glasses to protect your eyes from splashes of molten solder.
- Avoid touching the tip of the soldering iron; it can cause severe burns if contacted directly.
- Keep flammable materials away from your workspace; hot tools can ignite nearby items if left unattended.
Once you've mastered basic techniques, consider exploring advanced methods that can improve your skills further:
Surface Mount Device (SMD) micro switches require different techniques than through-hole variants:
1. Use tweezers for precise placement on PCB pads.
2. Apply flux generously before heating.
3. Use hot air rework stations for even heating across multiple pads simultaneously.
4. Be cautious about overheating; SMD components can be more sensitive than through-hole types.
For more advanced projects requiring precise control:
1. Invest in digital temperature-controlled soldering stations.
2. Use thermocouple probes to monitor real-time temperatures during work.
3. Experiment with different temperature settings based on component sensitivity—lower temperatures may be better for delicate parts.
Soldering micro switches is an invaluable skill that can enhance your electronics projects significantly. With practice, attention to detail, and adherence to safety precautions, you can master this technique effectively. Remember that patience is key; take your time during each step of the process for optimal results.
Use lead-free solder with a diameter of about 0.6 mm to 0.8 mm for better control during application.
A good joint should have a shiny appearance with no gaps or excess solder; it should appear smooth around the terminal.
Yes, but ensure they are still functional before reusing them in your projects; check for any signs of wear or damage such as corrosion or broken levers.
Ensure both surfaces are clean, apply flux adequately, and make sure you're heating both parts sufficiently before applying solder; sometimes reapplying flux can help improve adhesion as well.
Practice on scrap circuit boards or old electronics before working on important projects; consider joining local maker spaces where you can get hands-on experience with guidance from experienced individuals who can provide tips tailored specifically for your needs.
