Golf carts are a popular mode of transportation on golf courses, in gated communities, and for short trips in many areas. The Club Car DS is one of the most widely used golf cart models, known for its reliability and performance. However, like any vehicle, it can experience issues over time. One common problem that Club Car DS owners may encounter is a faulty micro switch. This critical component plays a vital role in the cart's operation, and knowing how to test it can save you time and money on unnecessary repairs.
In this comprehensive guide, we'll walk you through the process of testing a Club Car DS micro switch, providing step-by-step instructions, helpful tips, and essential safety precautions. Whether you're a DIY enthusiast or simply want to understand your golf cart better, this article will equip you with the knowledge to diagnose and potentially resolve micro switch issues.
Before diving into the testing process, it's crucial to understand what a micro switch is and its function in a Club Car DS golf cart.

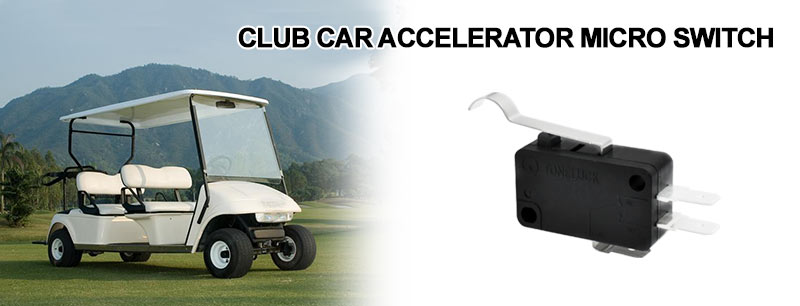

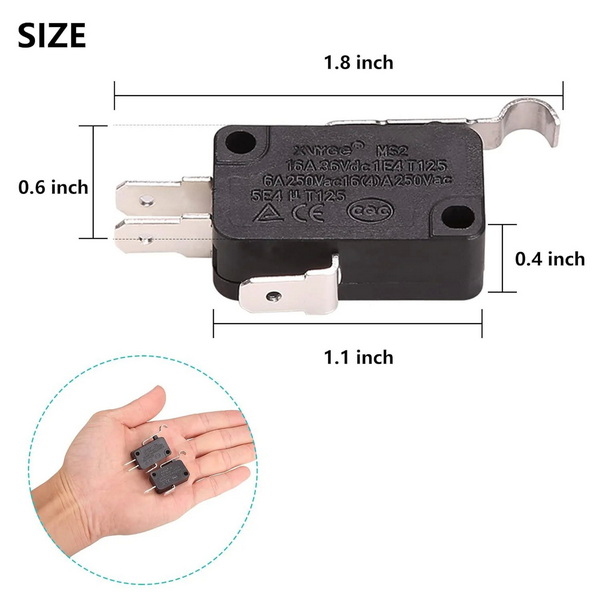

A micro switch is a small electrical switch that is activated by very little physical force. In a Club Car DS, micro switches are used in various locations, including:
1. The accelerator pedal
2. The brake pedal
3. The forward/reverse selector
4. The charger receptacle
These switches play a crucial role in controlling the cart's operation, safety features, and charging system. When a micro switch fails, it can cause a range of issues, from the cart not starting to erratic behavior while driving.
To test a Club Car DS micro switch, you'll need the following tools:
1. Multimeter
2. Basic hand tools (screwdrivers, pliers, etc.)
3. Safety glasses
4. Insulated gloves
5. Jack stands (if you need to elevate the cart)
Ensure that your multimeter is in good working condition and properly calibrated before beginning the testing process.
Before starting any work on your golf cart, it's essential to prioritize safety. Follow these precautions:
1. Disconnect the battery: Always disconnect the negative terminal of the battery before working on any electrical components.
2. Work in a well-ventilated area: If you're working indoors, ensure proper ventilation to avoid inhaling harmful fumes.
3. Wear protective gear: Use safety glasses and insulated gloves to protect yourself from electrical hazards.
4. Secure the cart: If you need to elevate the cart, use proper jack stands and ensure it's stable before working underneath.
5. Refer to the manual: Always consult your Club Car DS owner's manual for specific instructions and safety guidelines.
Now that we've covered the basics and safety precautions, let's dive into the step-by-step process of testing a Club Car DS micro switch.

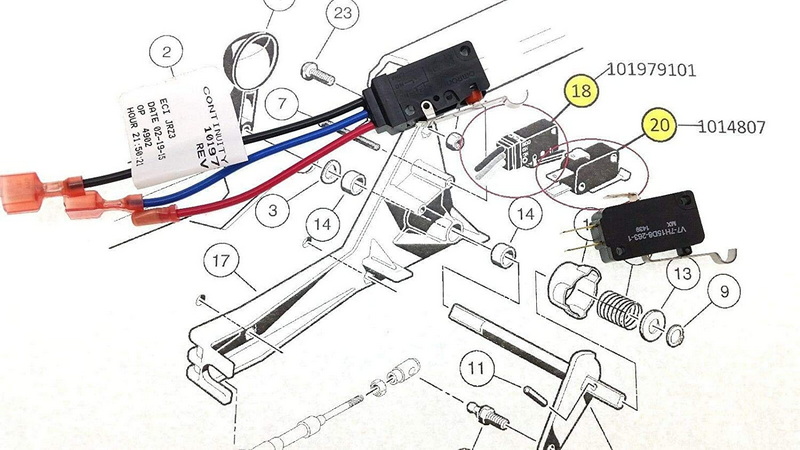

The first step is to locate the micro switch you want to test. Depending on the issue you're experiencing, you may need to test multiple switches. Common locations include:
- Under the floorboard (for accelerator and brake pedal switches)
- Near the forward/reverse selector
- Inside the charger receptacle
Consult your Club Car DS manual for exact locations of micro switches in your specific model.
Set your multimeter to the continuity testing mode. This mode allows you to check if an electrical path is complete or broken. Most multimeters will emit a beep when continuity is detected.
Depending on the location of the micro switch, you may need to remove panels or components to gain access. Follow these general steps:
1. Remove any screws or fasteners holding the panel in place.
2. Carefully lift or slide the panel to expose the micro switch.
3. Identify the wires connected to the switch.
Now that you have access to the micro switch, it's time to test for continuity:
1. Place one probe of the multimeter on one terminal of the micro switch.
2. Place the other probe on the other terminal.
3. Activate the switch (e.g., press the pedal or move the selector).
4. Listen for a beep or observe the multimeter display for continuity.
A properly functioning micro switch should show continuity when activated and no continuity when not activated.
In addition to testing for continuity, you should also check the resistance of the micro switch:
1. Set your multimeter to the ohms (Ω) setting.
2. Place the probes on the switch terminals as before.
3. Activate the switch and observe the resistance reading.
A good micro switch should have very low resistance (close to 0 ohms) when activated and infinite resistance when not activated.
Some micro switches, like those in the forward/reverse selector, may have multiple positions. Test the switch in all possible positions to ensure it's functioning correctly throughout its range of motion.
While electrical testing is crucial, it's also important to visually inspect the micro switch for any signs of physical damage:
- Look for cracks or breaks in the switch housing
- Check for corrosion on the terminals
- Ensure the actuator (the part that gets pressed) moves freely
For a more thorough test, you can perform a test under load. This involves testing the micro switch while it's connected to the cart's electrical system. However, this should only be done if you're comfortable working with live electrical systems and have taken proper safety precautions.
After completing the tests, you'll need to interpret the results:
- If the switch shows proper continuity and resistance in all positions, it's likely functioning correctly.
- If there's no continuity or incorrect resistance readings, the switch may be faulty and need replacement.
- If you observe physical damage or corrosion, the switch should be replaced regardless of electrical test results.
If you've determined that a micro switch is faulty, replacement is usually the best course of action. Here's a general overview of the replacement process:
1. Purchase a compatible replacement switch.
2. Disconnect the battery.
3. Remove the old switch, taking note of wire connections.
4. Install the new switch, ensuring proper wire connections.
5. Test the new switch before reassembling everything.
6. Reconnect the battery and perform a final test.
To avoid future micro switch issues, consider these preventive maintenance tips:
1. Regularly clean the areas around micro switches to prevent dirt and debris buildup.
2. Inspect switches visually during routine maintenance.
3. Apply dielectric grease to switch terminals to prevent corrosion.
4. Avoid exposing your golf cart to excessive moisture or extreme temperatures when possible.
Testing a Club Car DS micro switch is a valuable skill for any golf cart owner. By following the steps outlined in this guide, you can diagnose switch-related issues and potentially save on repair costs. Remember to always prioritize safety and consult professional help if you're unsure about any aspect of the testing or replacement process.
Regular maintenance and prompt attention to any operational issues will help keep your Club Car DS running smoothly for years to come. With the knowledge gained from this guide, you're now better equipped to handle one of the most common electrical issues in golf carts.
It's recommended to test your golf cart's micro switches at least once a year as part of your regular maintenance routine. However, if you notice any issues with your cart's operation, such as difficulty starting or erratic behavior, it's best to test the relevant micro switches immediately.
If you're comfortable with basic electrical work and have the necessary tools, replacing a micro switch can be a DIY project. However, if you're unsure about any aspect of the process or don't feel confident working with electrical components, it's best to consult a professional golf cart technician.
Common signs of a failing micro switch include:
- The cart doesn't start or move when the accelerator is pressed
- Intermittent operation or "dead spots" in the accelerator range
- The cart moves even when the accelerator isn't pressed
- Issues with the forward/reverse selection
- Problems with the charging system
No, different micro switches may be used for various functions in a Club Car DS. Always ensure you're using the correct replacement switch for the specific application. Consult your owner's manual or a parts diagram to identify the correct switch for your model and year.
The lifespan of a micro switch can vary depending on usage, environmental conditions, and the quality of the switch. On average, a well-maintained micro switch can last several years. However, switches in high-use areas like the accelerator pedal may wear out more quickly and require more frequent replacement.
