Wiring a 3-way slide switch can seem daunting, but with the right tools and a clear understanding of the process, it can be accomplished easily. This guide will provide you with step-by-step instructions, diagrams, and tips to ensure your wiring project is successful.
A 3-way slide switch typically has three positions:
- Position 1: Connects the first circuit.
- Position 2: Disconnected (off).
- Position 3: Connects the second circuit.
This type of switch is often used in various applications, including controlling lighting systems or selecting different functions in electronic devices.
Before diving into wiring, it's essential to understand the different types of slide switches available:
- SPST (Single Pole Single Throw): The simplest form of a switch that connects or disconnects a single circuit.
- SPDT (Single Pole Double Throw): This switch can route a single input to one of two outputs. It has three terminals—one common and two outputs.
- DPST (Double Pole Single Throw): This type controls two separate circuits simultaneously with a single switch.
- DPDT (Double Pole Double Throw): Similar to SPDT but allows for two circuits to be controlled and switched between two outputs for each circuit.
Before you start wiring, gather the following tools:
- Wire stripper
- Soldering iron
- Heat shrink tubing
- Multimeter
- Needle-nose pliers
- Screwdriver
- Electrical tape
1. Turn Off Power: Safety first! Ensure that the power is turned off at the circuit breaker to avoid any electrical hazards.
2. Identify Terminals: A typical 3-way slide switch will have three terminals. Identify which terminal corresponds to each position of the switch.
3. Prepare Wires: Strip about half an inch of insulation from each wire that you will be connecting.
4. Connect Power Source:
- Connect the power source wire to the terminal that corresponds to Position 1.
- This wire usually carries the voltage supply.
5. Connect Load Wires:
- Connect one load wire to Position 2 (this will be your “off” position).
- Connect another load wire to Position 3 (this will connect to your device).
6. Secure Connections: Use soldering or screw terminals to secure your connections. Make sure there are no exposed wires that could cause a short circuit.
7. Insulate Connections: Use heat shrink tubing or electrical tape to insulate any exposed connections to prevent accidental short circuits.
8. Test Your Switch: Before finalizing everything, turn on the power and test your switch in each position to ensure it operates correctly.
9. Finalize Installation: Once tested, carefully tuck all wires back into their respective boxes and secure the switch in place.
- Lighting Control: Used in homes for controlling lights from multiple locations.
- Guitar Electronics: Commonly found in electric guitars for selecting pickups.
- Model Projects: Often used in hobby electronics for controlling motors or lights.
- Home Appliances: Used in devices like fans and lights to control speed or brightness.
- Industrial Equipment: Employed in machinery for controlling different operational modes.

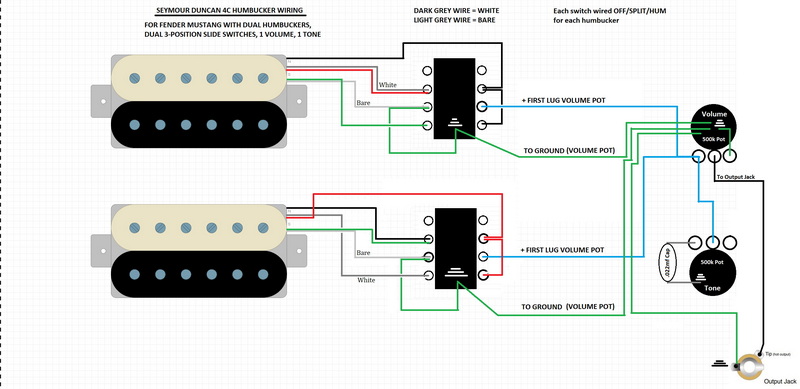

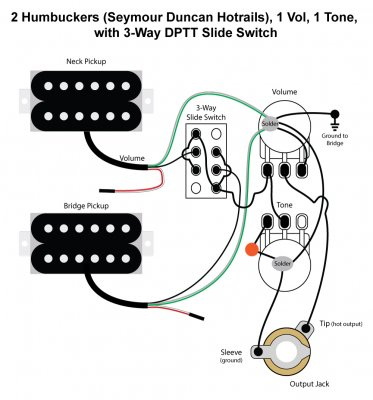

Here are some visual aids that can help you understand how a 3-way slide switch works:
If your slide switch doesn't seem to work after installation, consider these troubleshooting steps:
- Check Connections: Ensure all connections are secure and correctly wired according to your diagram.
- Inspect for Shorts: Look for any exposed wires that may be causing a short circuit.
- Use a Multimeter: Test continuity through the switch in each position to ensure it is functioning correctly.
Wiring a 3-way slide switch is a straightforward task if approached methodically. By following these steps and ensuring safety precautions are taken, you can successfully wire your switch for various applications. Understanding how these switches work allows you not only to install them but also troubleshoot issues effectively when they arise.
A 3-way slide switch is commonly used to control devices from multiple locations, such as lighting fixtures in staircases or selecting different functions in electronic devices.
Typically, the middle terminal is common, while the other two terminals correspond to each of the two positions of the switch. You can use a multimeter to test continuity if unsure.
Yes, but ensure that the switch's specifications match your voltage requirements. Always check for ratings on the switch itself.
Double-check all connections for proper wiring and ensure that no wires are loose or touching each other incorrectly. If issues persist, consult an electrician.
If you're not comfortable working with electrical wiring, it's best to consult or hire a professional electrician to ensure safety and compliance with local codes.
