Wiring a DPDT (Double Pole Double Throw) sub mini slide switch can seem complex, but with the right guidance, it becomes a straightforward task. This article will guide you through the process step-by-step, providing helpful visuals and tips along the way. By the end, you'll be equipped to wire your own DPDT switches effectively.
A DPDT switch is a versatile component that allows you to control two separate circuits simultaneously. It can toggle between two different outputs or functions, making it ideal for applications like reversing motors or controlling multiple devices with one switch.
Key Features of DPDT Switches:
- Double Pole: Controls two circuits.
- Double Throw: Can connect to two different outputs.
- Three Positions: Typically has an "On" position for each output and a neutral "Off" position.
Before starting, gather the following tools and materials:
- DPDT Sub Mini Slide Switch
- Wire Stripper
- Soldering Iron
- Heat Shrink Tubing
- Multimeter
- Needle-nose Pliers
- Screwdriver

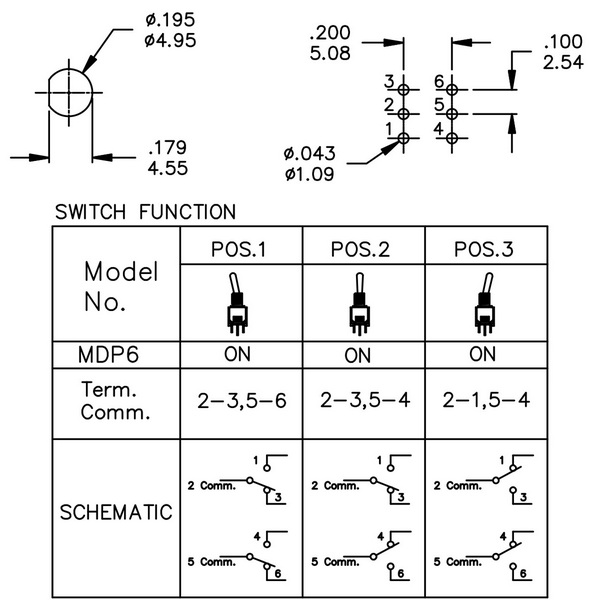

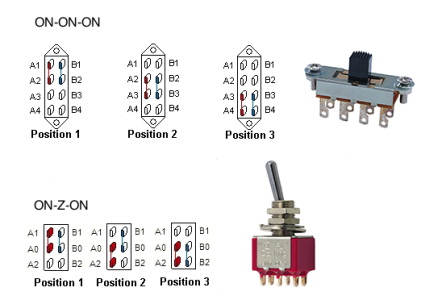

Identify the terminals on your DPDT switch. Typically, there are six terminals arranged in two rows of three. The center terminals are often used as common connections.
1. Connect the positive lead from your power source to one of the center terminals (let's say A1).
2. Connect the negative lead from your power source to the other center terminal (B1).
1. Connect the first output device to terminal A2.
2. Connect the second output device to terminal B2.
To allow for reversing polarity (useful for motors), you need to cross-wire:
1. Connect terminal A1 to terminal B2.
2. Connect terminal B1 to terminal A2.
This configuration allows you to reverse the current flow when toggling the switch.
Before finalizing your setup, it's crucial to test your connections:
1. Use a multimeter to check continuity between terminals.
2. Ensure that when the switch is toggled, it correctly connects and disconnects each circuit.
After confirming that everything works as intended, use heat shrink tubing around your soldered connections for insulation and protection against shorts.
DPDT switches find their utility in various applications due to their ability to control multiple circuits simultaneously. Here are some common uses:
- Reversing Motor Direction: In robotics or electric vehicles, DPDT switches can change the direction of motors easily by reversing polarity.
- Toggling Between Power Sources: For devices that can run on multiple power sources (like battery or AC), a DPDT switch allows seamless switching without complex wiring changes.
- Controlling Multiple Lights: You can use a DPDT switch to toggle between two sets of lights or LED configurations in lighting setups.
For more complex applications, consider these advanced wiring techniques:
A center-off configuration allows you to have an "off" position in between two "on" positions. This is useful in applications where you want to ensure that no current flows when the switch is not actively engaged.
To wire a center-off DPDT switch:
1. Connect power leads as before.
2. Leave one side of each circuit disconnected from the power source when in center-off position.
This setup can be particularly useful in controlling devices like fans or heaters where you want an off state without disconnecting power entirely.
In larger projects, you may need more than one DPDT switch for various functionalities. Each switch can control different aspects of a system, allowing for intricate control schemes. For example, one switch could control motor direction while another could toggle between different power sources.
When working with electrical components, safety should always be your top priority:
- Always turn off power before working on circuits.
- Use insulated tools and wear safety goggles when soldering.
- Double-check all connections before powering up your circuit.
Good soldering practices are essential when working with electronic components like switches:
- Preparation: Before soldering, twist and tin stranded wires to ensure good contact and prevent fraying.
- Heat Management: Use enough heat but avoid overheating components; too much heat can damage sensitive parts.
- Solder Application: Apply solder directly onto heated wires rather than creating blobs; this ensures strong mechanical connections.
If your circuit isn't functioning as expected after wiring:
- Check all connections again; loose or incorrect connections are often culprits.
- Use a multimeter to verify voltage at various points in your circuit.
- Ensure that all components are rated appropriately for your application (voltage/current ratings).
Let's explore some practical examples where you might use a DPDT sub mini slide switch:
For hobbyists working with small robotics projects, reversing DC motors using a DPDT switch is common practice:
1. Wire the motor across terminals A2 and B2.
2. Follow previous wiring instructions for connecting power sources.
3. Toggle the switch to change motor direction based on project needs.
This setup allows for simple user control over movement direction without complex programming or additional circuitry.
In lab environments where equipment may require different power sources (like AC vs DC), wiring a DPDT switch can facilitate easy switching:
1. Connect AC supply lines to L1 and L2 terminals.
2. Connect DC supply lines across A1/A2 and B1/B2 depending on which device requires which voltage type.
3. Toggle as needed based on which device needs operation at any given time.
This method provides flexibility while minimizing clutter from multiple plugs or adapters.
Wiring a DPDT sub mini slide switch is a manageable task with clear instructions and proper tools. By following this guide, you can effectively control multiple circuits with ease and efficiency. Remember to test your connections thoroughly before powering up your circuit.
A DPDT switch is commonly used in applications where you need to control two circuits or reverse motor direction.
Typically, a DPDT switch has six terminals arranged in two rows of three, with center terminals serving as common connections.
Yes, DPDT switches are available in various ratings suitable for low voltage applications.
Incorrect wiring may lead to short circuits or malfunctioning devices. Always double-check your connections before powering up.
Yes, other types include SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), and DPST (Double Pole Single Throw).
