The micro switch is a crucial component in the operation of Club Car golf carts, playing a significant role in the vehicle's acceleration and braking systems. Understanding its location and function can help owners troubleshoot issues and maintain their carts effectively. This article will explore the micro switch's location, its types, how it functions, and how to replace it if necessary.
Micro switches are small but vital electrical components that act as relays in various systems of a golf cart. They are primarily used to control the activation of solenoids and other electrical circuits. In Club Cars, these switches can be found in several locations:
- Accelerator Pedal: The most common location for a micro switch is on the accelerator pedal. When the pedal is pressed, the switch activates, sending a signal to the solenoid to allow power to flow to the motor.
- Forward-Neutral-Reverse (FNR) Switch: Another critical location for micro switches is within the FNR switch assembly. Here, they help manage the direction of travel and safety features like reverse buzzers.
- Speed Control Box: Many Club Car models have a speed control box that houses multiple micro switches responsible for regulating different speeds of the cart.
To locate the micro switch on the accelerator pedal:
- Accessing Underneath: You will need to get under the driver's seat or access panel to see the accelerator pedal assembly.
- Identifying the Switch: The micro switch is typically mounted on or near the pedal mechanism. It may be connected with two or three wires depending on its function.
For the FNR switch micro switches:
- Location: These are usually located within the FNR switch assembly which can be found near the steering column or under the dashboard.
- Functionality: They activate when you shift between forward, neutral, and reverse, controlling power delivery and safety features.

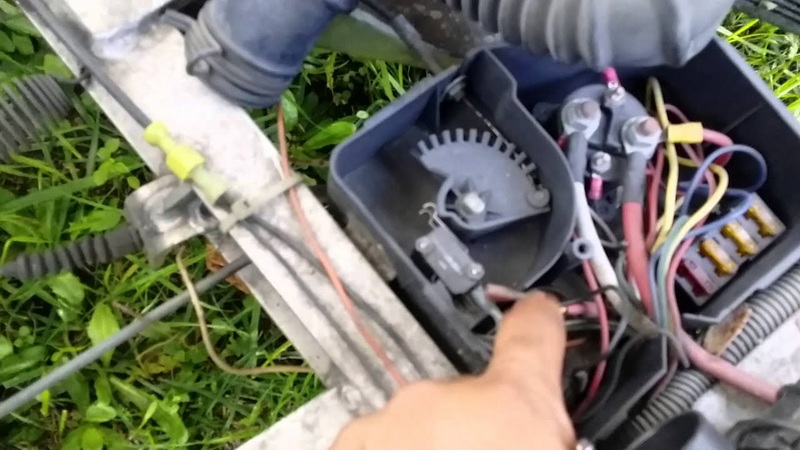

To find micro switches in the speed control box:
- Removing Covers: You may need to remove some covers or panels under the seat to access this box.
- Switch Layout: Inside, you will typically find multiple micro switches that correspond to different speed settings.
Micro switches operate based on mechanical movement. When an actuator (like a pedal) is pressed, it physically moves a lever or button inside the switch. This movement closes or opens an electrical circuit, allowing current to flow or stopping it.
- Acceleration Control: In electric carts, pressing the accelerator engages these switches to provide power to the motor.
- Safety Features: In reverse mode, specific micro switches ensure that safety features like buzzers are activated to alert pedestrians.
Understanding different types of micro switches can also help in identifying potential issues:
- Single Pole Single Throw (SPST): This type has one input and one output and is commonly used in basic applications like turning devices on or off.
- Single Pole Double Throw (SPDT): This type can connect one input to one of two outputs and is often used where a choice between two circuits is needed.
- Double Pole Double Throw (DPDT): This type allows for two separate circuits to be controlled by one switch and can be useful in more complex setups within golf carts.
Micro switches can fail due to various reasons:
- Wear and Tear: Over time, mechanical components can wear out due to frequent use.
- Corrosion: Exposure to moisture can lead to corrosion at connection points, affecting functionality.
- Electrical Failures: Short circuits or overloads can damage micro switches irreparably.
If your Club Car is experiencing issues such as not accelerating properly or erratic behavior, it could be due to a faulty micro switch. Here are some troubleshooting steps:
- Visual Inspection: Check for any visible damage or disconnections at each switch location.
- Testing with a Multimeter: Use a multimeter to test continuity across each micro switch when engaged.
- Cleaning Contacts: Sometimes, dirt or corrosion can affect performance; cleaning contacts can resolve minor issues.
If you determine that a micro switch needs replacement, follow these steps:
1. Gather Tools and Parts:
You will need replacement micro switches (available from various suppliers), screwdrivers, and possibly pliers.
2. Disconnect Battery Power:
Always disconnect the battery before working on electrical components for safety.
3. Remove Old Switch:
- For accelerator pedal switches, unmount any screws holding it in place.
- Disconnect wires carefully noting their positions for reinstallation.
4. Install New Switch:
- Position the new switch where the old one was located.
- Reconnect wires according to your notes.
- Secure with screws.
5. Reconnect Battery and Test:
After reassembly, reconnect battery power and test functionality by pressing the accelerator and shifting gears.
To prolong the life of your micro switches:
- Regular Inspections: Check them periodically for signs of wear or damage.
- Keep Connections Clean: Ensure that all connections are free from dirt and corrosion by cleaning them regularly with appropriate cleaners.
- Avoid Overloading Circuits: Ensure that you do not overload circuits that these switches control as this can lead to premature failure.
Understanding where to find and how to maintain micro switches in your Club Car can significantly enhance your golf cart's performance and longevity. Regular checks and timely replacements can prevent more extensive issues down the line. If you encounter persistent problems despite replacing switches, consider consulting a professional technician for further diagnosis. Proper maintenance not only ensures smooth operation but also enhances safety while driving your golf cart around courses or neighborhoods.
Micro switches control various functions such as acceleration and direction changes by activating electrical circuits within the cart's systems.
Signs of a faulty micro switch include unresponsive acceleration, inconsistent speed control, or failure of safety features like reverse buzzers.
Yes, replacing a micro switch is generally straightforward if you follow proper procedures and safety precautions when handling electrical components.
Replacement micro switches can be purchased from golf cart parts suppliers online or at local automotive parts stores specializing in golf carts.
It's advisable to inspect your micro switches during regular maintenance checks or whenever you notice performance issues with your golf cart.
