Debouncing is a critical process in electronics, particularly when dealing with switches like micro switches in airsoft guns. This article will explore the concept of debouncing, its importance in airsoft applications, and a step-by-step guide on how to debounce an airsoft micro switch effectively. We will also include images to illustrate the process and provide a comprehensive FAQ section at the end.
Debouncing refers to the technique used to ensure that only a single signal is sent when a switch is pressed or released. When a mechanical switch is activated, it does not transition cleanly from one state to another; instead, it may bounce between states for a brief period. This bouncing can cause multiple signals to be sent, leading to unintended behavior in electronic circuits.

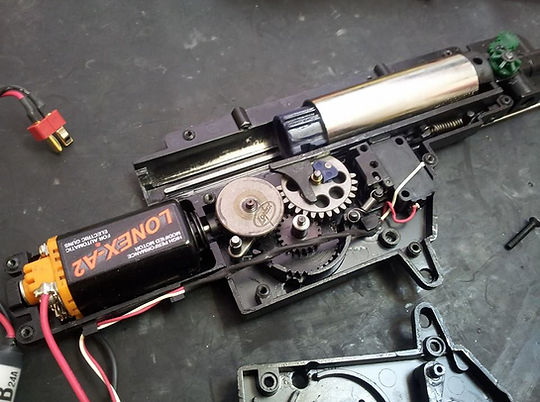

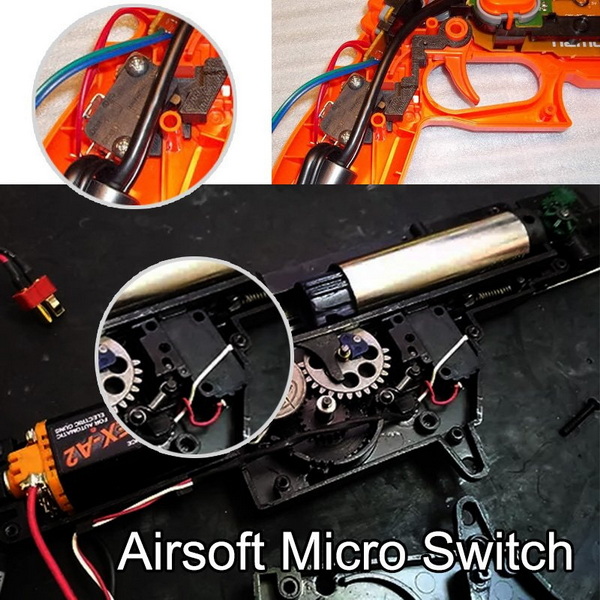

In airsoft guns, micro switches are often used for triggering mechanisms. If these switches are not debounced, the gun may fire multiple times with a single trigger pull, leading to:
- Inaccurate Firing: The gun may fire more rounds than intended.
- Increased Wear and Tear: Excessive firing can lead to quicker wear of internal components.
- Safety Concerns: Unintended discharges can pose safety risks.
Debouncing ensures that only one signal is registered per trigger pull, enhancing both performance and safety.
There are two primary methods for debouncing switches: hardware debouncing and software debouncing.
Hardware debouncing involves using additional electronic components to filter out the noise caused by switch bouncing. Common components used include:
- Resistors
- Capacitors
- Schmitt Trigger ICs
Below is a simple circuit diagram illustrating hardware debouncing using a resistor and capacitor.
Software debouncing involves programming the microcontroller or processor that reads the switch state. The software waits for a specified period after detecting a state change before accepting it as valid.
Here's an example of how you might implement software debouncing in Arduino:
const int switchPin = 2; // Pin connected to the micro switch
int lastSwitchState = LOW;
unsigned long lastDebounceTime = 0;
unsigned long debounceDelay = 50; // milliseconds
void setup() {
pinMode(switchPin, INPUT);
}void loop() {
int reading = digitalRead(switchPin);
if (reading != lastSwitchState) {
lastDebounceTime = millis();
}
if ((millis() - lastDebounceTime) > debounceDelay) {
if (reading != lastSwitchState) {
lastSwitchState = reading;
// Trigger action based on new state
}
}
}
Now that we understand the importance of debouncing and the methods available, let's go through a step-by-step guide on how to debounce an airsoft micro switch using both hardware and software methods.
Before starting the debouncing process, gather the following materials:
- Airsoft micro switch
- Resistor (typically between 1kΩ and 10kΩ)
- Capacitor (typically between 10µF and 100µF)
- Breadboard or PCB for assembly
- Soldering iron (if necessary)
- Multimeter (for testing)
- Microcontroller (if using software debouncing)
For hardware debouncing, follow these steps:
1. Connect the Micro Switch: Connect one terminal of the micro switch to ground and the other terminal to your input pin on your microcontroller.
2. Add Resistor: Connect a resistor from the input pin to VCC (positive voltage). This pull-up resistor ensures that the input pin reads HIGH when the switch is open.
3. Add Capacitor: Place a capacitor between the input pin and ground. This capacitor will help smooth out any bouncing by absorbing quick fluctuations in voltage.
4. Final Connections: Ensure all connections are secure. Use a breadboard for temporary setups or solder connections for permanent installations.
Before proceeding with your airsoft gun, it's crucial to test your circuit:
1. Power on your circuit.
2. Use a multimeter to check the voltage at the input pin while pressing and releasing the switch.
3. Ensure that you observe only one transition for each press/release action.
If you choose software debouncing, upload your code (as shown earlier) to your microcontroller. Make sure you adjust parameters like `debounceDelay` according to your needs.
Once you have tested your debounce circuit successfully:
1. Disconnect power from your airsoft gun.

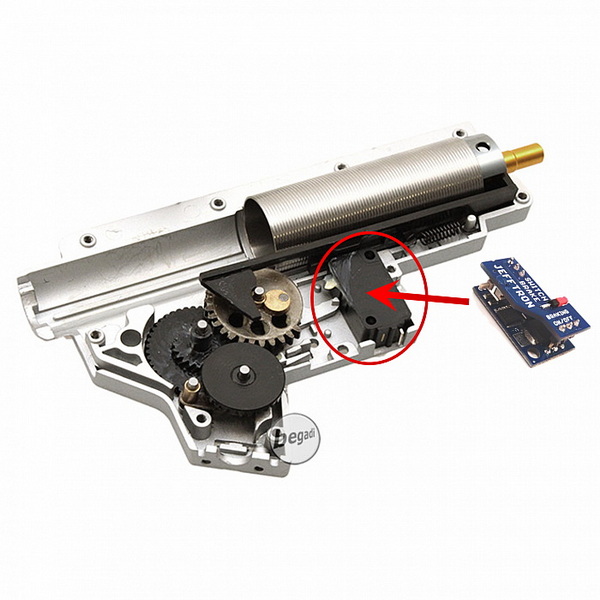

2. Carefully integrate your debounced micro switch into the trigger mechanism.
3. Ensure that all connections are insulated and secure from accidental shorts.
After integration:
1. Power on your airsoft gun.
2. Test the trigger multiple times to ensure it fires correctly without unintended discharges.
3. Make any necessary adjustments based on performance.
Debouncing an airsoft micro switch is essential for ensuring reliable operation and enhancing safety during use. By employing either hardware or software debouncing methods, users can significantly improve their airsoft gun's performance and longevity. Whether you choose to implement simple resistor-capacitor circuits or programmatic solutions with microcontrollers, understanding how to debounce effectively will enhance your overall airsoft experience.

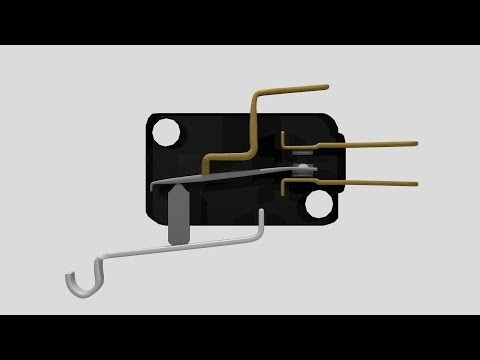

A micro switch is a small mechanical switch that activates when pressed down by a trigger mechanism in airsoft guns, allowing electrical signals to trigger firing actions.
If you notice that your airsoft gun fires multiple times with one trigger pull or behaves erratically when firing, it likely needs debouncing.
Yes, using both methods can provide additional reliability, especially in complex systems where noise might still affect performance.
Electrolytic capacitors are commonly used for their higher capacitance values, but ceramic capacitors can also be effective depending on the application requirements.
While modifying electronics can improve performance, it's essential to follow safety guidelines and consult with professionals if you're unsure about any modifications.
