Installing a universal air push switch can significantly enhance the functionality of your kitchen, particularly when it comes to operating appliances like garbage disposals. This guide will walk you through the installation process, ensuring you have all the necessary steps and tips for a successful setup.

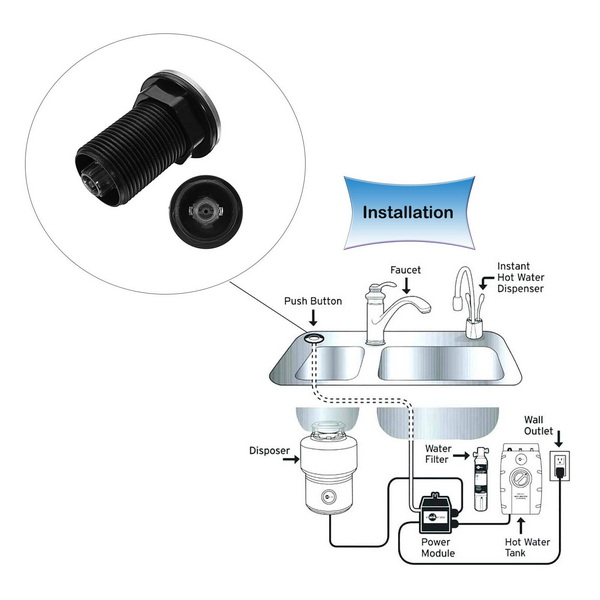

The air push switch is designed to control electrical devices without direct electrical connections at the switch location. It operates by using air pressure; when you press the button, it sends a pulse of air through a tube to activate or deactivate an appliance.
- Safety: Reduces the risk of electric shock, especially in wet areas like kitchens.
- Convenience: Allows for easy activation of garbage disposals and other appliances from the countertop.
- Aesthetic Appeal: Available in various finishes to match your kitchen decor.
Before starting your installation, gather the following tools and materials:
- Universal air push switch kit (includes button, tubing, and power adapter)
- Drill with appropriate bits
- Screwdriver
- Adjustable wrench
- Level
- Measuring tape
- Silicone sealant (for waterproofing)
- Safety goggles
Select a convenient location for the air push button. It should be easily accessible while working at the sink or countertop. Common locations include:
- Next to the sink
- On the countertop near the garbage disposal
- On an island if your kitchen design allows it
1. Drill a Hole: Use a drill to create a hole in your countertop. The hole should typically be 1¼ inches in diameter to fit most air push switches.
2. Clean Up: Ensure that any debris is cleared from around the hole to allow for a clean installation.
1. Insert the Button: Place the air push button into the drilled hole from above.
2. Secure with Gasket and Nut: From underneath, place a rubber gasket over the hole, followed by a metal washer and then secure it with a plastic nut. Hand-tighten until snug but avoid overtightening.

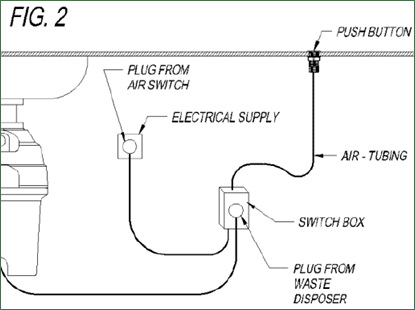

1. Attach Tubing to Button: Firmly press one end of the air tubing into the bottom of the air switch button.
2. Connect Tubing to Control Box: Feed the other end of the tubing into the control box, ensuring it fits securely.
3. Hand Tighten Nuts: Use your fingers to tighten both nuts that hold the tubing in place.

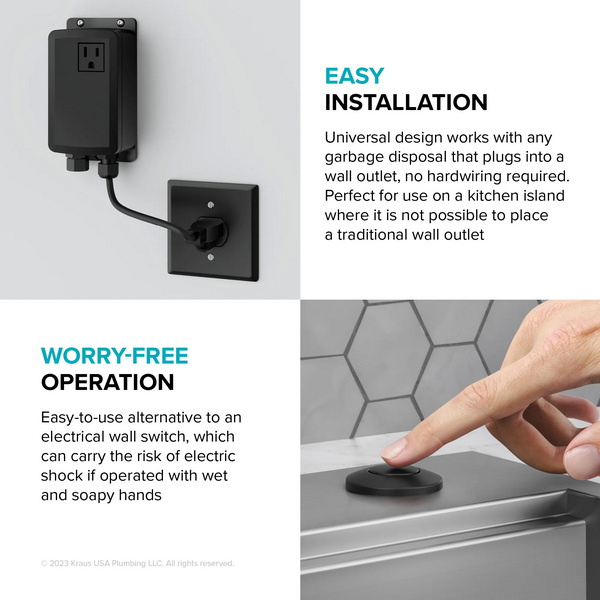

1. Plug in Your Garbage Disposal: Connect your garbage disposal unit into the control box outlet.
2. Power Connection: Plug the control box into a standard wall outlet. Ensure that you do not connect power until all other steps are completed.
1. Test Functionality: Once everything is connected, press the air button to test if it activates your garbage disposal.
2. Check for Leaks: Inspect all connections for any signs of air leaks or loose fittings.
- Read Instructions Carefully: Each switch may have specific instructions; always refer to them.
- Avoid Over-tightening: Plastic components can crack if over-tightened.
- Use Level for Alignment: Ensure that your button is level for aesthetic purposes and ease of use.
Even after installation, issues may arise with your air push switch. Here are some common problems and their solutions:
- Jammed Button: If your button becomes stuck, it may be due to dirt or debris inside. Disassemble and clean with contact cleaner.
- Intermittent Response: If pressing the button does not consistently activate your appliance, check for loose connections or damaged tubing.
- No Response at All: If there's no sound when pressing, inspect for kinks or leaks in the tubing that could prevent airflow.
Installing a universal air push switch can greatly improve your kitchen's functionality while enhancing safety and convenience. By following these steps carefully, you can ensure that your installation is successful and efficient. The benefits of using an air push switch extend beyond mere convenience; they provide an added layer of safety in environments where water is present, minimizing risks associated with traditional electrical switches.
An air push switch is primarily used to control appliances like garbage disposals without needing direct electrical connections at the switch location.
Yes, installing an air push switch is straightforward and can be done as a DIY project with basic tools.
Check all connections for tightness, ensure power is supplied to the control box, and verify that there are no leaks in the tubing.
Most countertops can accommodate an air push switch as long as they have a hole drilled to fit; however, ensure that your countertop thickness does not exceed specifications provided by your switch manufacturer.
Yes, air push switches come in various styles and finishes to match different kitchen decors.
