Wiring a 4 prong push switch can seem daunting, but with the right guidance, it can be a straightforward task. This article will provide you with a comprehensive understanding of how to wire a 4 prong push switch, including the necessary materials, step-by-step instructions, and safety precautions.
A 4 prong push switch typically comprises two pairs of pins: one pair for the switch function and another for an indicator light (if present). Understanding the function of each pin is crucial for successful wiring.
- Switch Pins: These are used to control the circuit.
- Indicator Light Pins: These are used to power an LED indicator that shows the status of the switch.
Before starting, gather the following materials:
- A 4 prong push switch
- Appropriate gauge wires
- Soldering iron and solder (if necessary)
- Screwdriver
- Multimeter (for testing)
- Electrical tape or heat shrink tubing
Ensure that all power sources are disconnected before starting any wiring work. This is crucial for your safety.
Identify which pins are for the switch function and which are for the indicator light. Typically, manufacturers label these pins. For instance:
- Pins 1 and 2 might be for the switch.
- Pins 3 and 4 might be for the indicator light.

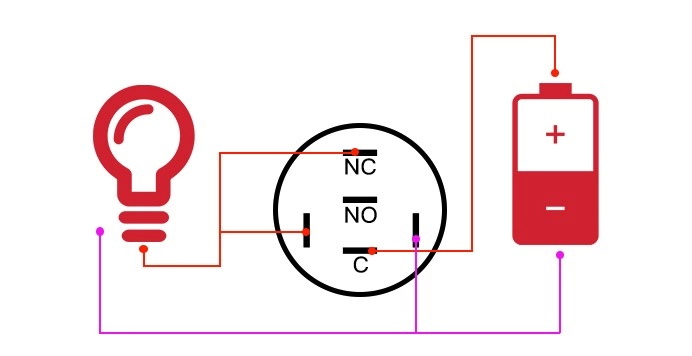

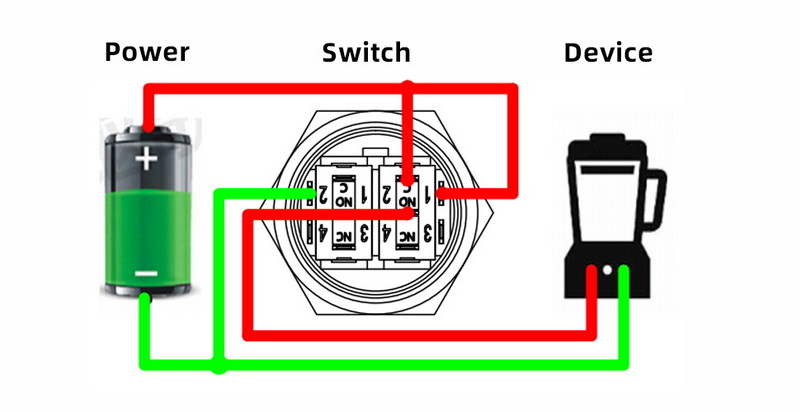

Connect your power source's positive wire to one of the switch pins (let's say Pin 1) and connect another wire from the second switch pin (Pin 2) to your load (the device you want to control).
If your switch has an indicator light, connect it as follows:
- Connect a wire from your power source's positive terminal to one of the indicator light pins (Pin 3).
- Connect the other indicator light pin (Pin 4) to ground or negative terminal.
Make sure all connections are secure. If you used solder, allow it to cool down before proceeding. Use electrical tape or heat shrink tubing to insulate any exposed wires.
Reconnect power and test your setup. Press the push button to ensure that it controls your load correctly and that any indicator lights function as expected. Use a multimeter if necessary to check continuity.
A 4 prong push switch is versatile and can be used in various applications, including:
- Home Automation: Controlling lights or appliances.
- Automotive Systems: Operating horns or other electronic components.
- Industrial Equipment: Used in machinery for operational control.
- DIY Projects: Ideal for hobbyists creating custom electronics.
If you encounter issues with your push switch after installation, consider these troubleshooting tips:
- No Response When Pressed: Check if power is reaching the switch. Use a multimeter to verify continuity across pins.
- Indicator Light Not Working: Ensure that you have connected the LED pins correctly and that they are receiving power.
- Intermittent Operation: This could indicate a loose connection; inspect all solder joints and wire connections.
- Always ensure power is off before working on electrical components.
- Use insulated tools whenever possible.
- If unsure about any connections, consult a professional electrician.
Wiring a 4 prong push switch can be accomplished with careful attention to detail and adherence to safety protocols. By following this guide, you should be able to wire your push switch effectively.
A momentary push button only stays on while being pressed, whereas a latching push button remains on after being pressed until it is pressed again.
Yes, but ensure that the switch is rated for the voltage you intend to use. Always check specifications before installation.
Most manufacturers will label their switches; if not, consult the product manual or use a multimeter to test connectivity.
If you have no experience with electrical wiring, it's advisable to consult or hire a professional electrician to avoid hazards.
Check all connections first; ensure they are secure and correctly wired. If everything looks good but it still doesn't work, check if the LED is functioning properly or if it requires a specific voltage.
