Micro switches, also known as snap-action switches, are integral components in various electrical and mechanical systems. They are designed to provide reliable switching actions with minimal force, making them suitable for a wide range of applications—from household appliances to industrial machinery. This article delves into the functionality of micro switches, specifically addressing the question: *Is a micro switch closed when pressed?* We will explore the mechanics behind micro switches, their types, wiring configurations, and common applications.
A micro switch is a small, sensitive switch that operates on the principle of mechanical action and electrical conductivity. It typically consists of three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC). The primary function of a micro switch is to open or close an electrical circuit in response to mechanical movement.
- Common (COM): This terminal is the common point for both NO and NC terminals.
- Normally Open (NO): This terminal is open when the switch is not activated. It closes when the switch is pressed.
- Normally Closed (NC): This terminal is closed when the switch is not activated. It opens when the switch is pressed.
Micro switches operate using a simple mechanism involving a lever or actuator that moves in response to an external force. When this actuator is pressed:
- The internal spring mechanism causes the contacts within the switch to either connect or disconnect.
- If the actuator is pressed down, it typically opens the NC contact and closes the NO contact.
This means that when a micro switch is pressed, it transitions from a normally closed state to an open state. Conversely, when released, it returns to its resting state—closed for NC and open for NO.
Micro switches come in various types based on their design and application:
- Standard Micro Switches: These are commonly used in household appliances and industrial machines.
- Subminiature Micro Switches: Smaller versions used in compact devices like remote controls and electronic gadgets.
- Heavy-Duty Micro Switches: Designed for high-load applications such as automotive systems and industrial equipment.
Each type has specific features tailored to different operational requirements.
Understanding how to wire micro switches correctly is crucial for their effective operation. Here are some common wiring configurations:
1. Normally Closed Configuration:
- Connect COM to NC.
- The circuit remains closed until the switch is pressed.
2. Normally Open Configuration:
- Connect COM to NO.
- The circuit remains open until the switch is pressed.
3. Combination Configuration:
- Both NO and NC can be used in a single circuit depending on operational needs.
Micro switches are utilized across various industries due to their reliability and precision:
- Home Appliances: Found in washing machines, microwaves, and coffee makers.
- Automotive Systems: Used in door locks, seatbelt sensors, and brake light switches.
- Industrial Automation: Integral in conveyor systems, limit switches, and safety interlocks.
- Medical Devices: Employed in equipment like blood pressure monitors and infusion pumps.
Micro switches offer several advantages that make them popular choices in many applications:
- High Reliability: They can withstand millions of cycles without failure due to their simple mechanical design.
- Compact Size: Their small footprint allows them to fit into tight spaces where larger switches cannot.
- Fast Switching Speed: Micro switches can operate quickly, making them ideal for applications requiring rapid response times.
- Versatility: They can be configured for various functions depending on the application needs.
While micro switches are highly effective, they do have some limitations:
- Mechanical Wear: Over time, mechanical components can wear out, leading to failure if not properly maintained.
- Sensitivity to Environmental Conditions: Dust, moisture, or extreme temperatures can affect performance if not adequately protected.
- Current Rating Limitations: Each micro switch has specific current ratings; exceeding these limits can cause damage or failure.

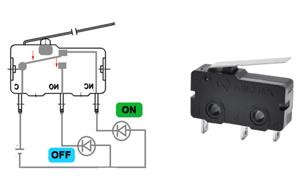

*The diagram above illustrates how a micro switch operates with its three terminals.*
When installing micro switches, several factors should be considered to ensure optimal performance:
1. Mounting Position: Ensure that the actuator aligns correctly with whatever mechanism it will be interacting with. Misalignment can lead to improper operation.
2. Environmental Protection: Depending on the application, consider using enclosures or protective covers to shield the switch from dust or moisture.
3. Electrical Connections: Use appropriate gauge wires for connections based on current requirements. Poor connections can lead to failure or erratic behavior.
4. Testing Before Use: After installation, test the switch under load conditions to ensure it operates as expected before deploying it into service.
Micro switches are generally reliable; however, issues may arise from time to time. Here are some common problems and troubleshooting steps:
- Switch Not Activating:
- Check if the actuator is properly aligned with its triggering mechanism.
- Inspect for any physical obstructions preventing movement.
- Intermittent Operation:
- Examine electrical connections for looseness or corrosion.
- Test with a multimeter to check for continuity issues within the switch itself.
- Switch Sticking:
- Clean any debris around the actuator that may cause sticking.
- Ensure that there's no excessive force applied during operation that could damage internal components.
As technology advances, so does the design and functionality of micro switches. Future trends may include:
- Smart Micro Switches: Incorporating sensors that provide feedback on status or performance via IoT connectivity.
- Enhanced Durability Materials: Using advanced materials that resist wear and environmental degradation for longer lifespans.
- Miniaturization: Continued efforts toward reducing size while maintaining functionality will allow integration into even more compact devices.
In summary, a micro switch is closed when it is not actuated (in its resting state) and opens when pressed. This functionality allows for precise control over electrical circuits in various applications. Understanding how micro switches operate can help you make informed decisions regarding their use in your projects or devices. With their reliability and versatility across multiple industries—from home appliances to complex industrial systems—micro switches remain essential components in modern technology.
When a micro switch is pressed, it transitions from its normally closed state (NC) to an open state (NO), interrupting current flow through the NC terminal while allowing current through the NO terminal.
To determine which terminal to use, refer to your device's schematic or manual. Typically, you will connect either NC or NO based on whether you want the circuit to be active or inactive when the switch is not pressed.
Most standard micro switches are not designed for high-current applications. Always check the specifications for current ratings before use.
Yes, common types of actuators include levers, rollers, and plungers. Each type serves different applications based on required movement or force.
Check for dirt or moisture on contacts, ensure proper alignment during installation, and examine the actuator for any physical damage that may prevent proper operation.
